Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

  • 1 year
  • Nade
  • BT600-2J
  • Zhejiang, China
  • Water Distribution, laboratory, industry
  • Low Pressure, Low Pressure
  • Other
  • optional
  • AC 90 - 260V 50/60 Hz
  • Other
  • Air Pump
  • Electric
  • Reciprocating Pump
  • Medium-High Flow Rate Peristaltic Pump
  • 1 to 600 rpm, reversible
  • Rotary encoded switch
  • 3-digit LED displays current speed
  • IP 31
  • YZ1515X, YZ2515X, YZII15, YZII25

Product Description

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Product Description

Instruction
Precise peristaltic pump BT600-2J can be loaded YZ1515X, YZ2515X,YZII15, YZII25. It can delivers flow rates from 0.07 to 2200 mL/min and its speed can be adjusted manually or automatically through external control interface. Precise peristaltic pump BT600-2J can realize can realize dispensing function when it connects to a FK-1C dispensing controller. It is easy to operate.
Specifications
- Speed: 1 to 600 rpm, reversible
- Speed Resolution: 1 rpm
- Speed Control: Rotary encoded switch
- Display: 3-digit LED displays current speed
- External control: Start/stop and CW / CCW control, 0 to 5V, 0 to 10V, 4 to 20mA and 0 to 10KHz speed control
- Power Supply: AC 90 - 260V 50/60 Hz
- Power Consumption: <100W
- Operating Condition: Temperature 0 to 40°C Relative humidity < 80%
- Dimensions (L×W×H): 280×200×180 (mm)
- Drive Weight: 3.8 kg
- IP Rating: IP 31
Functions and Features
- Applicable pump heads:YZ1515X, YZ2515X, YZII15, YZII25
- Prime button for fast filling and emptying
- Adjust speed manually or automatically through analog interface
- Memory function: Storing the running parameters automatically
- Equipped with Longer Dispensing Controller for filling function
- Realize computer control through RS-485 communication interface
- Indoor use only
Parameters
Type Product
Code
Pump Head Tubing Max. Flow Rate (ml/min) Weight
(kg)
BT600-2J 0502621 YZ1515x,YZⅡ15 13# 14# 19# 16# 25# 17# 18# 2200 4.2
YZ2515x 15# 24# 1600
YZⅡ25 15# 24# 35# 36# 3000
DG15-24 16# 25# 17# 1800 (single channel) 4.6

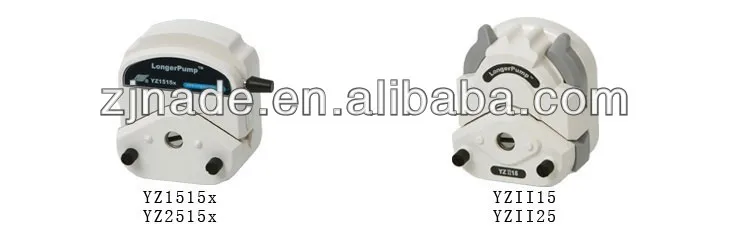

Suitable Pump Head

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Tubing Specifications

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Flow Rate Curves


Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

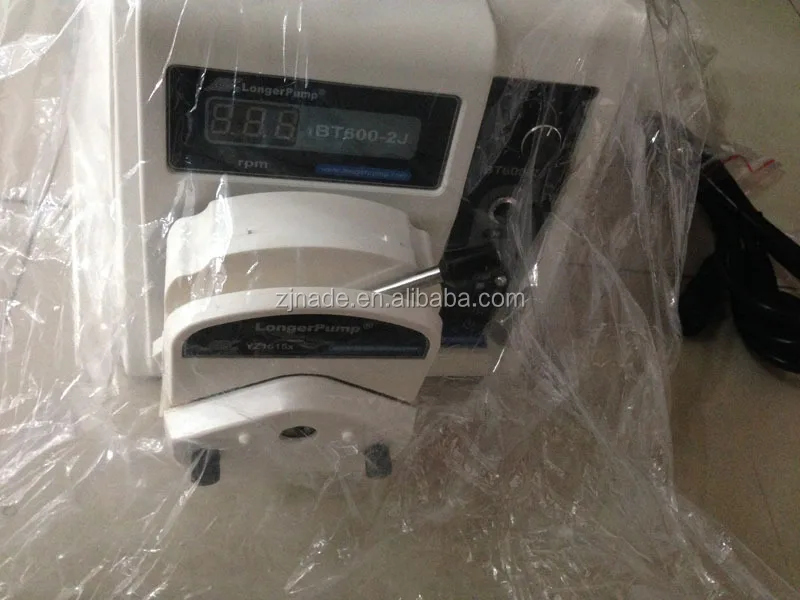

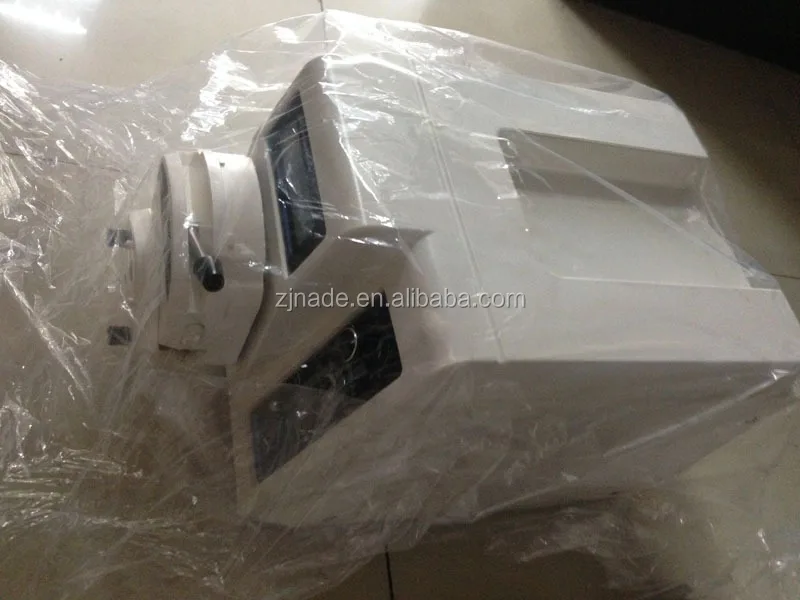

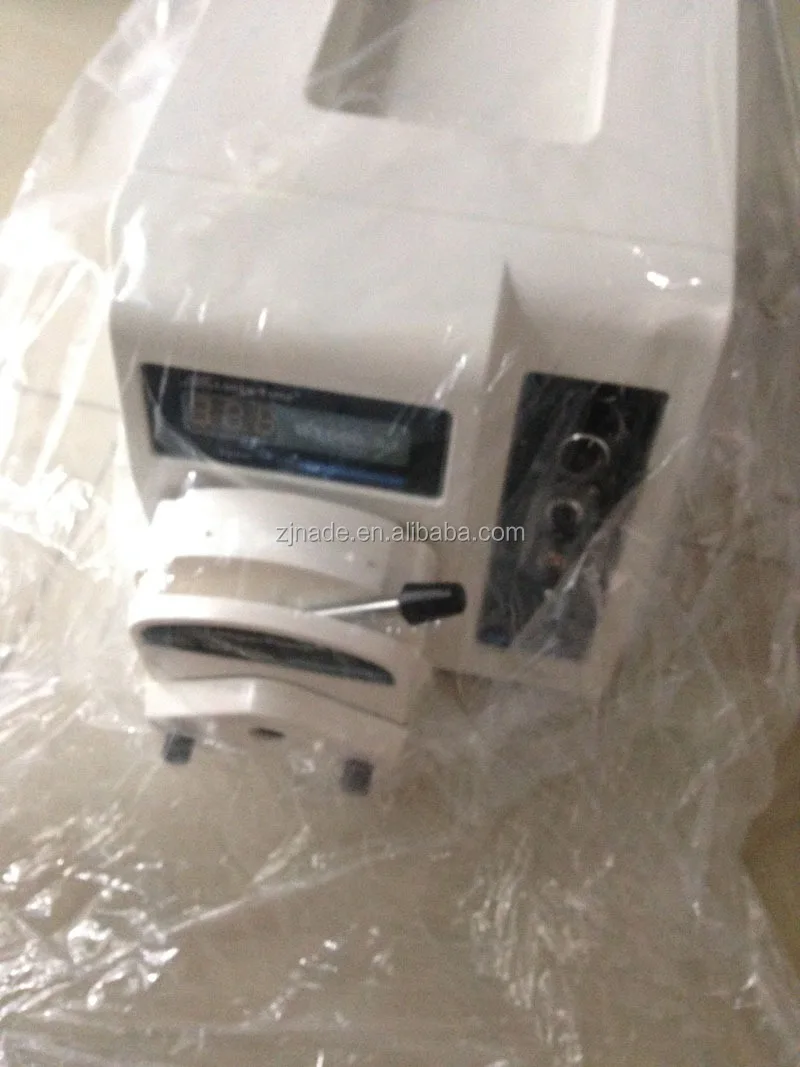

Real photos show

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

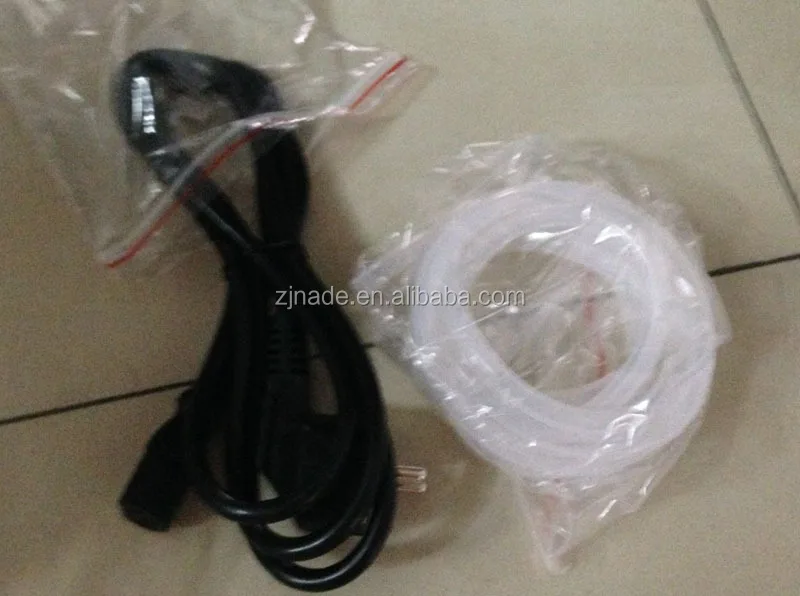

Packaging & Shipping

Our Packaging Details:

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Our Shipping

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Company Information

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

Nade Pump Medium-High Flow Rate Peristaltic Pump BT600-2J

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
