BT300-1F - Dispensing Peristaltic Pump

Dispensing Peristaltic Pump BT300-1F can be loaded YZ1515X, YZ2515X, YZII15, YZII25. The pump delivers flow rates from 0.07 to 1140 mL/min. 128 x 64 graphic LCD displays running menus and parameter setting menus. The display interfaces are friendly. It has many control modes. The external control can be realized through standard external control interface or 485 communication interface.

- Speed: 1 to 300 rpm, reversible

- Speed precision: 1 rpm

- Speed control: Rotary coded switch coupled with membrane keypad

- Display: 128×64 graphic LCD displays flow rate, speed or dispensing mode

- Copy number: 1 to 999

- Dispense volume: 0.1 mL to 99.9 L

- Pause time: 1 to 999 s

- Back suction angle: 0 to 360°, 18° increments

- External control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control

- Communication interface: RS485

- Power supply : AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional)

- Power consumption: < 50 W

- Operating condition: Temperature 0 to 40 °C ; Relative humidity < 80%

- Dimensions (L × W × H): 202 × 160 × 239 (mm)

- Drive weight: 4.3 kg

- IP rating: IP 31

- Applicable pump heads: YZ1515X, YZ2515X, YZII15, YZII25

- Set pause time to realize dispensing and filling automatically

- Display can switch between flow rates and rpm

- Calibrate setting flow rates to acquire more accurate flow rates

- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.

Parameters:

Pump drive Type: BT300-1F

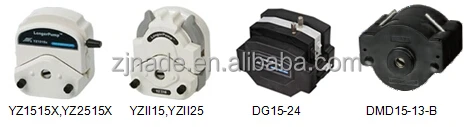

Pump Head	Tubing	Flow Rate (ml/min)	Weight(kg)
YZ1515X, YZⅡ15	13# 14# 16# 19# 25# 17# 18#	1140	4.7
YZ2515X	15# 24#	840
YZⅡ25	15# 25# 35# 36#	1500
DMD15-13-B	13# 14# 19# 16# 25#	1040	4.7
DG15-24	16# 25# 17#	900 (single channel)	5.1

Tubing Specifications:
