Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

  • Nade
  • WT600-3J
  • Zhejiang, China
  • Water Distribution, laboratory, industry, Cryogenic
  • 0.07-0.27Mpa, High Pressure
  • Other
  • 0.8-9.6mm
  • High Pressure
  • Other
  • Air Pump
  • Electric
  • 60-600 rpm
  • ±1.0%
  • RS485
  • 1.0 rpm
  • ≥1.50 N.M
  • 3 Digital LED display rpm

Product Description

Nade Pump High Flow Rate, High IP rating Peristaltic Pump WT600-3J

Product Description

Instruction
Precise peristaltic pump WT600-3J is one kind of high IP rating and high-efficiency product, it features a maintenance-free brushless DC motor and application of specific integrated circuit with big torque (1.5 N.M), small vibration. It can drive various single/dual channels pump heads to provide flow rate from 4.2 to 6000 mL/min.
Specifications
- Speed: 60-600 rpm, reversible
- Speed accuracy: ±1.0%
- Speed resolution: 1 rpm
- Torque output: ≥1.50 N.M
- Display: 3 Digital LED display rpm
4 pcs LED indicators display the working state
- Memory Function: Storing the running parameters automatically
- External control: Start/stop, direction, speed control (0.5-5V,1-10V,0-20mA, 1-10KHz are corresponding to 60-600rmp)
- Communication interface: RS485
- Power supply: AC 176-264V, 50Hz/60Hz
- Power Consumption: ≤200W
- Cooling mode: Natural cooling heat
- Operation condition: Temperature 0 to 40°C, relative humidity: <80%
- Dimensions (L×W×H): 273×190×272(mm)
- Drive weight: 7.3kg
- IP rating: IP55
Functions and Features
- High IP rating: suitable for moist and dust working condition
- Prime key: Fast filling and emptying.
- Memory function: Storing the running parameters automatically
- Communication function: realize the computer control through RS485 interface
- Display: 3 digits LED displays the speed of the pump
- External control: Start/stop, CW/CCW and speed
- Suitable for different pump heads and tubing
- High output torque which can drive double pump heads
- Brushless DC motor, maintenance-free
- Operation mode: Switch and membrane keypad. Easy to operate
Parameters
Type Product Code Pump Head Tubing Flow Rate
(ml/min)
Weight
(kg)
WT600-3J 4-20mA 0502641

0.5-5V 0502642

1-10V 0502643

1kHz-10kHz 0502644
(1,2,3,4)×YZ1515x 13# 14# 19# 16# 25# 17# 18# 4.2-2200 (single channel) 7.7-8.9
(1,2,3,4)×YZⅡ15
(1,2,3,4)×YZ2515x 15# 24# 102-1600 (single channel)
(1,2)×YZⅡ25 15# 24# 35# 36# 102-3000 (single channel) 7.7-8.1
DG15-24 16# 25# 17# 50-1800 (single channel) 8.1
(1,2)×KZ25 15# 24# 35# 36# 200-6000 (single channel) 8.1-8.9
DMD25(≤350rpm) 119# 120# 15# 24# 35# 36# 5-4000 9.8

*Max. speed for DMD25 is 350 rpm.

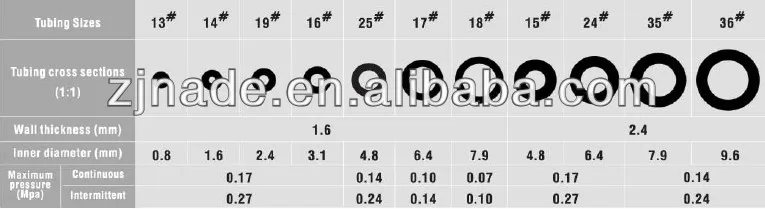

Tubing Specifications

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

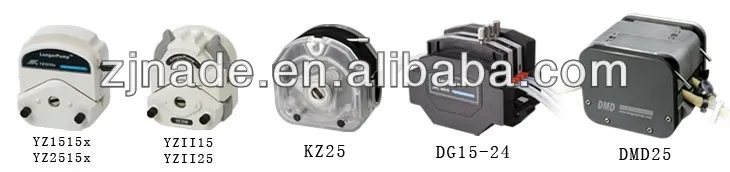

Suitable Pump Head

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

Packaging & Shipping

Our Packaging Details:

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

Our Shipping

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

Company Information

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

Nade Lab Scientfiic Instrument Pump High Flow Rate Peristaltic Pump WT600-3J 60-600 rpm, reversible

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
