NADE G300-1J Industrial Peristaltic Pump(0~1500ml/min)

  • NADE
  • G300-1J
  • China
  • Other, Water Distribution, laboratory, Other
  • 0.07-0.27Mpa, Low Pressure
  • Peristaltic Pump
  • 0.8-9.6mm
  • AC100V~240V/60W,50~60Hz
  • Other
  • Electric
  • max. 1500ml/min
  • 0 to 300.0 rpm, reversible(CW/CCW)
  • IP65
  • AC100V~240V/60W,50~60Hz
  • Liquid pumping
  • Other

Product Description

Introductions

The price we posted is for G300-1J+YZ1515x, if you prefer other pump heads, please contact us for new price.

1.Compact structure, small size, the max flowrate of single channel is 1100mL/min.
2.Adopting aluminium alloy housing with anti-corrosion paint treatment, the pump has good corrosive resistance and longer life time in corrosive environment.
3.With good electromagnetic compatibility, the pump will not behave unacceptably in the EMI environment and will not interfere with other electronic equipment.
4.With high IP rating, the pump could be used in wet and dusty environment.
5.Adopting high quality electronic components, optimizing software design and circuit design, the pump provides long-term reliable and stable operation.
6.LCD with specially designed run screen displays parameters and running status, which provides enough information for correct operation.

Specification:

- Speed:0rpm-300rpm,CW/CCW
- Speed resolution:1rpm
- Display:LCD
- Control mode:Keypad control, external signal control and communication control are available
- External control:Start/stop control, direction control: voltage level signal or switch signal are optional.
Speed control: 0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, max speed can be set between 30rpm and 300rpm.
- Communication control:RS485 interface, Longer protocol or Modbus protocol, the communication parameters (address, baud rate, parity, stop bit) can be set through keypad.
- Parameter memory:Operating parameters will be saved automatically.
- Pump status when power up:The pump status when power up could be set as stop or as the status before power loss.
- Prime:Fast filling or emptying at full speed
- EMC:Comply with EMC Directive 2014/30/EU
- Keypad lock function:Keypad can be locked to prevent the misoperation. The delay time before lock is settable.
- Dimension(L X W X H):235mm*142mm*152mm
- Power supply:AC90V-260V/50W,50-60Hz
- Operating temperature:0℃-40℃
- Relative humidity:10%-90%
- IP rating:IP65
- Weight:3.64kg

Functions and Features:

Parameters:

Pump head

Tubing

Flow Rate ( */min)

Weight(kg)

YZ1515X,YZⅡ15

13#,14#,19#,16#,25#,17#,18#

1100

4.04

YZ2515X

15#,24#

800

YZⅡ25

15#,24#,35#,36#

1500

FG15-13

13#,14#,19#,16#,25#,17#,18#

1200

3.92

FG25-13

15#,24#

1100

DMD15-13-B,DMD15-13-D

2x13#,2x14#,2x19#,2x16#,2x25#

1035

4.07

BZ15-13-A

14#

75

3.95

BZ15-13-B

16#

230

BZ15-13-C

25#

480

BZ15-13-D

17#

800

BZ25-13-B

24#

800

DG15-24

16#,25#,17#

900(Single Channel)

4.46

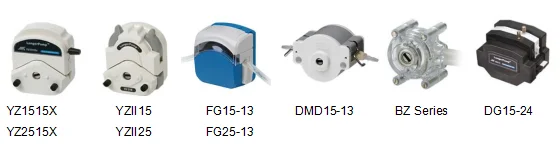

We have different pump head models, please choose 1 or more among above list.
