Nade Pump High Flow Rate Peristaltic Pump WT600-2J

  • Nade

  • WT600-2J

  • Zhejiang, China

  • Water Distribution, laboratory, industry

  • 0.07-0.27Mpa, High Pressure

  • Other

  • 0.8-9.6mm

  • High Pressure

  • Other

  • Water

  • Diesel

  • Reciprocating Pump

  • High Flow Rate Peristaltic Pump

  • WT600-2J

  • 60-600 rpm

  • ±1.0%

  • RS485

  • 1.0 rpm

Product Description

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Product Description

Instruction
WT600-2J precise peristaltic pump adopts DC brushless motor and close loop control integrate circuit. It features big torque, small vibration, high efficiency and maintenance-free. WT600-2J with torque of 1.5 N.M can drive two single-channel pump head or DMD25 pump head, it can deliver flow rate from 4.2 to 6000 ml/min.
Specifications
- Speed: 60-600 rpm
- speed accuracy: ±1.0%
- Speed resolution: 1.0 rpm
- Output torque: ≥1.50N·M
- External Control Input Interface: Start/Stop, CW/CCW, Speed Control (0-5V, 0-10V, 0-20mA, and 1-10kHz are optional)
- Communication interface: RS485
- Power Supply: AC 176-264V 50/60Hz
- Power Consumption: ≤200W
- Operating Condition: Temperature: 0-40°C, Relative Humidity: <80%
- Drive Dimension (L×W×H): 285×207×180 (mm)
- Drive Weight: 5.2 Kg
- IP rating: IP31
Functions and Features
- Prime key for fast filling and emptying
- Memory function: Store working status and machine ID.
- Equipped with RS485 interface to make the pump can be controlled by PC
- Three digital LED display the speed of pump
- Communication function: Realize the computer control through RS485 interface.
- External control input: Control the speed, start/stop and direction of the pump
- Suitable for different pump heads and tubing for multiple application
- Big torque output that can drive double channel pump head
- Brushless DC motor, high output torque and free maintenance
- Operation mode: ON/OFF switch, button, rotated code switch to operate pump. It is simple and pratical
Parameters
Type Product
Code
Pump Head Tubing Flow Rates
(ml/min)
Weight (kg)
WT600-2J 0502631 (1,2,3,4)×YZ1515x 13# 14# 16# 19# 25# 17# 18# 4.2-2200 (single channel) 5.6-6.8
(1,2,3,4)×YZII15
(1,2,3,4)×YZ2515x 15# 24# 100-1600 (single channel)
(1,2)×YZII25 15# 24# 35# 36# 100-3000 (single channel) 5.6-6.0
DG15-24 16# 25# 17# 50-1800 (single channel) 6.0
(1,2)×KZ25 15# 24# 35# 36# 200-6000 (single channel) 6.0-6.8
Suitable Pump Head

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Tubing Specifications

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

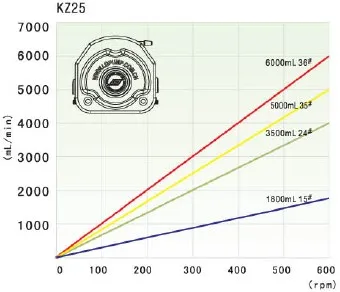

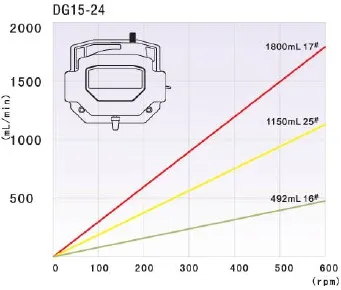

Flow Rate Curves



Nade Pump High Flow Rate Peristaltic Pump WT600-2J Nade Pump High Flow Rate Peristaltic Pump WT600-2J Nade Pump High Flow Rate Peristaltic Pump WT600-2J Nade Pump High Flow Rate Peristaltic Pump WT600-2J Nade Pump High Flow Rate Peristaltic Pump WT600-2J Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Real photos show

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

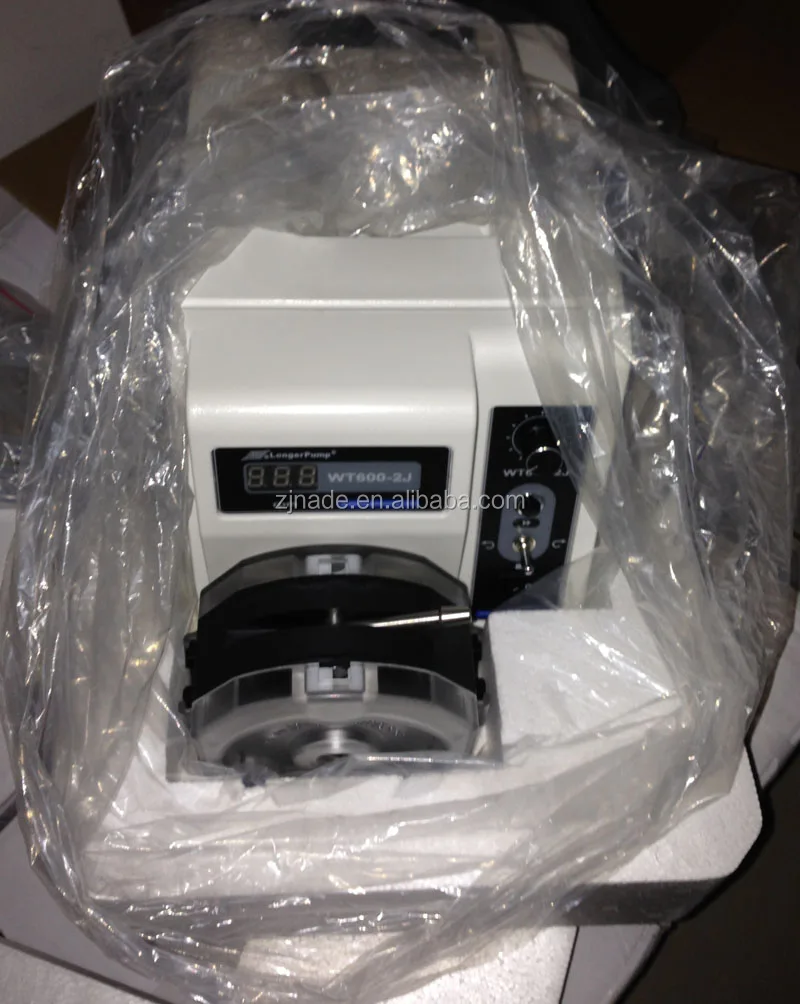

Packaging & Shipping

Our Packaging Details:

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Our Shipping

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Company Information

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

Nade Pump High Flow Rate Peristaltic Pump WT600-2J

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
