NADE BT100-1L Flow rate type Multi channel Peristaltic Pump

  • NADE
  • BT100-1L
  • China
  • Water Distribution, laboratory, industry, liquid transfer
  • 0.07-0.27mPa, Low Pressure
  • Peristaltic Pump
  • 0.8-9.6mm
  • Low Pressure
  • Other
  • Standard
  • Electric
  • Axial Flow Pump
  • max. 380ml/min
  • 1.0 to 100.0 rpm, reversible
  • Liuid pumping
  • electricity

Product Description

Introductions

The max. output torque of Multi-channels Peristaltic Pump BT100-1L drive is 1.65 N.m. Multi-channels pump heads are available. The pump delivers flow rates from 0.002 to 500 mL/min. 128 x 64 graphic LCD displays running menus and parameters setting menus. The flow rate and the speed (rpm) can be displayed in the same screen. The display interface is friendly. It has flow rate calibration function to make the flow rate more accurate. It has many control modes. The external control can be realized through standard external interface or RS485 communication interface.

Specification:

- Speed: 1.0 to 100.0 rpm, reversible

- Speed resolution: 0.1 rpm

- Speed control: Rotary coded switch coupled with membrane keypad

- Display: 128 × 64 graphic LCD displays current running status

- External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control

- Communication interface: RS485

- Power supply: AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional)

- Power consumption: <50 W

- Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%

- Dimensions (L × W × H): 202 × 160 × 239 (mm)

- Drive weight: 5.34 kg

- IP rating: IP 31

Features:

- Speed: 1.0 to 100.0 rpm, reversible

- Speed resolution: 0.1 rpm

- Speed control: Rotary coded switch coupled with membrane keypad

- Display: 128 × 64 graphic LCD displays current running status

- External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control

- Communication interface: RS485

- Power supply: AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional)

- Power consumption: <50 W

- Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%

- Dimensions (L × W × H): 202 × 160 × 239 (mm)

- Drive weight: 5.34 kg

- IP rating: IP 31

Parameters:

Type: BT100-1L

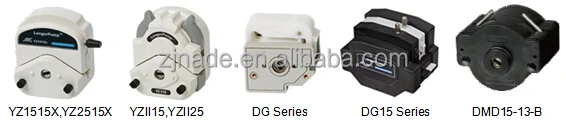

Pump Head

Tubing

Max. Flowrate
(single channel ml/min)

Weight
(kg)

DG15-24

16# 25# 17#

380

6.1

DG15-28

ID≤3.17mm Wall thickness 0.8-1mm 13# 14#

75

5.9

DG15-48

DG-(2.4.6.8.12.16.24)

6 Rollers

ID≤3.17mm wall thickness 0.8-1mm

48

5.7-8.6

DG-(2.4.6.8.12.16.24)

10 Rollers

32

(1.2.3.4.)×YZ1515x

13# 14# 19# 16# 25# 17# 18#

380

5.7-6.9

(1.2.3.4.)×YZII15

(1.2.3.4.)×YZ2515x

15# 24#

270

(1.2.)×YZII25

15# 24# 35# 36#

500

5.7-6.1

(1.2.)×DMD15-13-B

13# 14# 19# 16# 25#

350

5.7-6.1

NADE BT100-1L Flow rate type Multi channel Peristaltic Pump

Tubing Specifications:

NADE BT100-1L Flow rate type Multi channel Peristaltic Pump
