Product Description
Introduction:

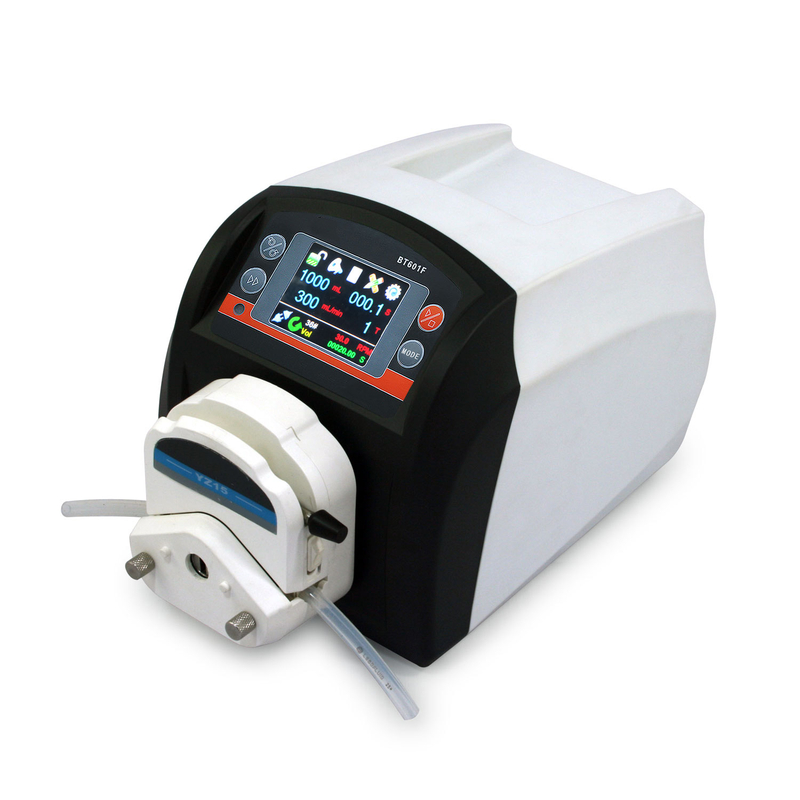

BT101 F/BT301 F/BT601F intelligent dispensing peristaltic pump, adopts color LCD touch screen with intuitive and clear displaying interface, easy to operate. Mainly used for accurate measurement and distribution of fluid. If you need high accuracy when dispensing, volume dispensing mode is available. If need high producing efficiency, time dispensing mode is more convenient .If want to separate fluid to number of equal parts, copy dispensing mode would be best. When working on flow mode, it is as same as intelligent flow peristaltic pump. Adopt intelligent temperature- control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, easier to be connected with other equipment, such as computer, human machine interface and PLC.
Working Principle and Selection of Peristaltic pump:
The most significant advantage of peristaltic pump is to use tubing as pump chamber,the pump and fluid don't pollute with each other.Only need to change another tubing when it cleans,it can greatly save high time cost of dismounting and maintance.
Peristaltic pump can transmit fluid in following industries:food processing, pharmzcy,chemical process,laboratory studies,agriculture and water treatment.Specific applications including: distribution, sampling, measurement, filtering,fermentation.In a short,as long as it is fluid,peristaltic pump can pump.
Peristaltic pump is an ideal choice,as it can pump the fluid of abrasive & corrosive many cases.
For one best peristaltic pump,the key is that choosing suitable pump head,tubing and drive.The special application should choose the function of peristaltic pump.
For the specific need,we can provide pump head,tubing materials and tubing size with different specifications. Different combination can deal with different liquid transmission requirements.
Function and Features
l Color LCD display, touch screen and keypad for operating.
l LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.
l Three types of distributing mode: volume dispensing mode, time dispensing mode, copy dispensing mode.
l Automatically store five groups of working parameters.
l Precious controlling technology for motor 's rotating angle increases the dispensing accuracy comparing to traditional time dispensing mode.
l Start/stop, reversible direction, full speed, adjust speed, state memory (power-down memory).
l Speed resolution is 0.1 rpm.
l Display and control flow rate, accumulate dispensing volume automatically.
l Calibrating flow function.
l The operating expert system guides users setting parameters correctly.
l Intelligent temperature-control technology reduces working noise.
l External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
l RS485 communication interface, MODBUS protocol is available, easy to connect other equipment.
l Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.
l Super anti-interference feature, wide input voltage range, acceptable for the complex power environment
l ABS plastic housing, creative streamlined appearance, beautiful and simple.
l Can drive multi-channels and various types of pump heads.
l External foot switch control start-stop for dispensing volume.
Specification
Technical parameters | BT101F | BT301F | BT601F |
Flow range (ml/min) | 0.0001~720 | 0.006-1690 | 0.006-2900 |
Speed range (rpm) | 0.1-150 | 0.1-350 | 0.1-600 |
Speed resolution (rpm) | 0.1rpm | ||
Dispensing volume | 0.05ml~9999L | ||
Dispensing time | 1~9999, “0” Infinite loops | ||
Dispensing interval time | 0.1~999.9S/Min/H, time unit adjustable | ||
Speed accuracy | ＜±0.2% | ||
Power supply | AC100~240V, 50Hz/60Hz | ||
Power consumption | ＜30W | ＜40W | ＜50W |
External control | Input level 5V,12V(standard),24V(optional) External control analog0-5v(standard),0-10v,4-20mA(optional) | ||
Communication interface | RS485 communication interface, MODBUS protocol is available. | ||
Work environment | Temperature 0 ~ 40°C; Relative humidity <80% | ||
IP grade | IP31 | ||
Dimensions(LxWxH) | 257x180x197(mm) | ||
Weight | 4.5Kg | 4.7Kg | 4.9Kg |
BT101F/BT301F/BT601F Applicable Pump head and tubing,flow parameters:
Drive type | Pump head | Channel number | Tube(mm) | Single channel flow rate(ml/min) |
BT101F | DG(6 rollers) | 1, 2, 4 | Wall thickness 0.8~1, ID≤3.17 | 0.0002~49 |
DG(10 rollers) | 1, 2, 3, 4 | Wall thickness 0.8~1, ID≤3.17 | 0.0001~41 | |
DT10-18 | 1 | 13#14#Wall thickness 0.8~1, ID≤3.17 | 0.0002~82 | |
DT10-28 | 2 | 13#14#Wall thickness 0.8~1, ID≤3.17 | 0.0002~82 | |
YZ15 | 1 | 13#14#16#19#25#17#18# | 0.006~570 | |
YZ25 | 1 | 15#24# | 0.16~420 | |
YT15 | 1 | 13#14#16#19#25#17#18# | 0.006~570 | |
YT25 | 1 | 15#24# | 0.17~720 | |
BT301F | YZ15 | 1 | 13#14#16#19#25#17#18# | 0.006~1340 |
YZ25 | 1 | 15#24# | 0.16~990 | |
YT15 | 1 | 13#14#16#19#25#17#18# | 0.006~1300 | |
YT25 | 1 | 15#24#35#36# | 0.16~1690 | |
DT15-24 | 2 | 16#19#25# | 0.07-770 | |
BT601F | YZ15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 |
YZ25 | 1 | 15#24# | 0.16~1700 | |
YT15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 | |
YT25 | 1 | 15#24#35#36# | 0.16~2900 |
Note: A whole set peristaltic pump includes: pump driver, pump head, pump tubing. When sending quotation, please choose suitable or inquire us by telling the application.

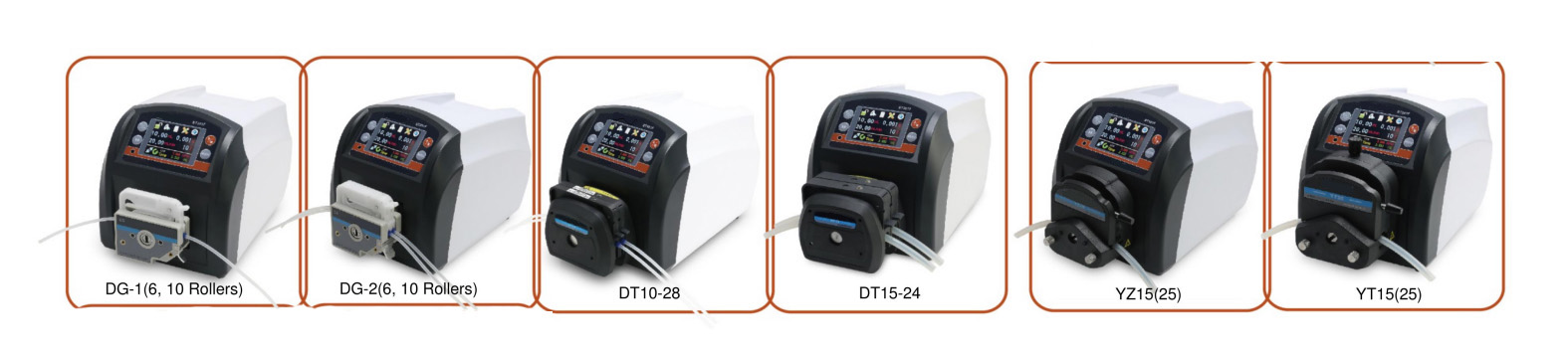

B101F/BT301F/BT601F Applicable Pump head pictures:
Note: BT601F+YZ15 2.3L/MIN mainly used in sub-packaging occasions, the liquid volume range is 1ML - 100ML. There is precision correction to ensure the precision of liquid volume distribution. Smart touch screen operation is simple and convenient. Filling products in pharmaceutical factories, laboratories, biopharmaceuticals, and other occasions.
If the customer has special liquids such as strong corrosion and high viscosity, please contact the sales engineer in time.
