NADE G100-1J Industrial Peristaltic Pump(0-1500ml/min)

1. With aluminium alloy housing, the pump has good corrosive resistance and could be used in corrosive environment.
2. With the powerful electro magnetic compatibility, the pump will not behave unacceptably in the EMI environment and will not interfere with other electronic equipment.
3. With high IP rating, the pump could be used in wet and dusty environment.
4. Using high quality electronic components, optimizing software design and circuit design, the pump provides long-term reliable and stable operation.
5. LCD displays parameters and running state, which provides enough information for correct operation.

- Speed: 0rpm-100rpm,CW/CCW
- Speed resolution: 0.1rpm
- Display: LCD
- Control mode: Keypad, external signal control and communication control are available
- External control: Start/stop control, direction control: voltage level signal or switch signal are optional.
- Speed control: 0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, max speed can be changed within 100rpm.
- Communication control: RS485 interface, Longer protocol or Modbus protocol, the communication parameters (baud rate, parity, stop bit) can be set through keypad.
- Parameter memory: Running parameters and system parameters will be saved automatically.
- Running state when power on: The running state when power on can be set as stop or as previous state.
- Prime: Fast filling or emptying at full speed
- EMC: Comply with EMC Directive 2014/30/EU
- Keypad lock function: Keypad can be locked to prevent the misoperation. The locking delay time can be set.
- Dimension(L X W X H): 235mm*142mm*152mm
- Power supply: AC90V-260V/20W,50-60Hz
- Operating temperature: 0℃-40℃
- Relative humidity: 10%-90%
- IP rating: IP65
- Weight: 3.64kg

Parameters:

Type G100-1J

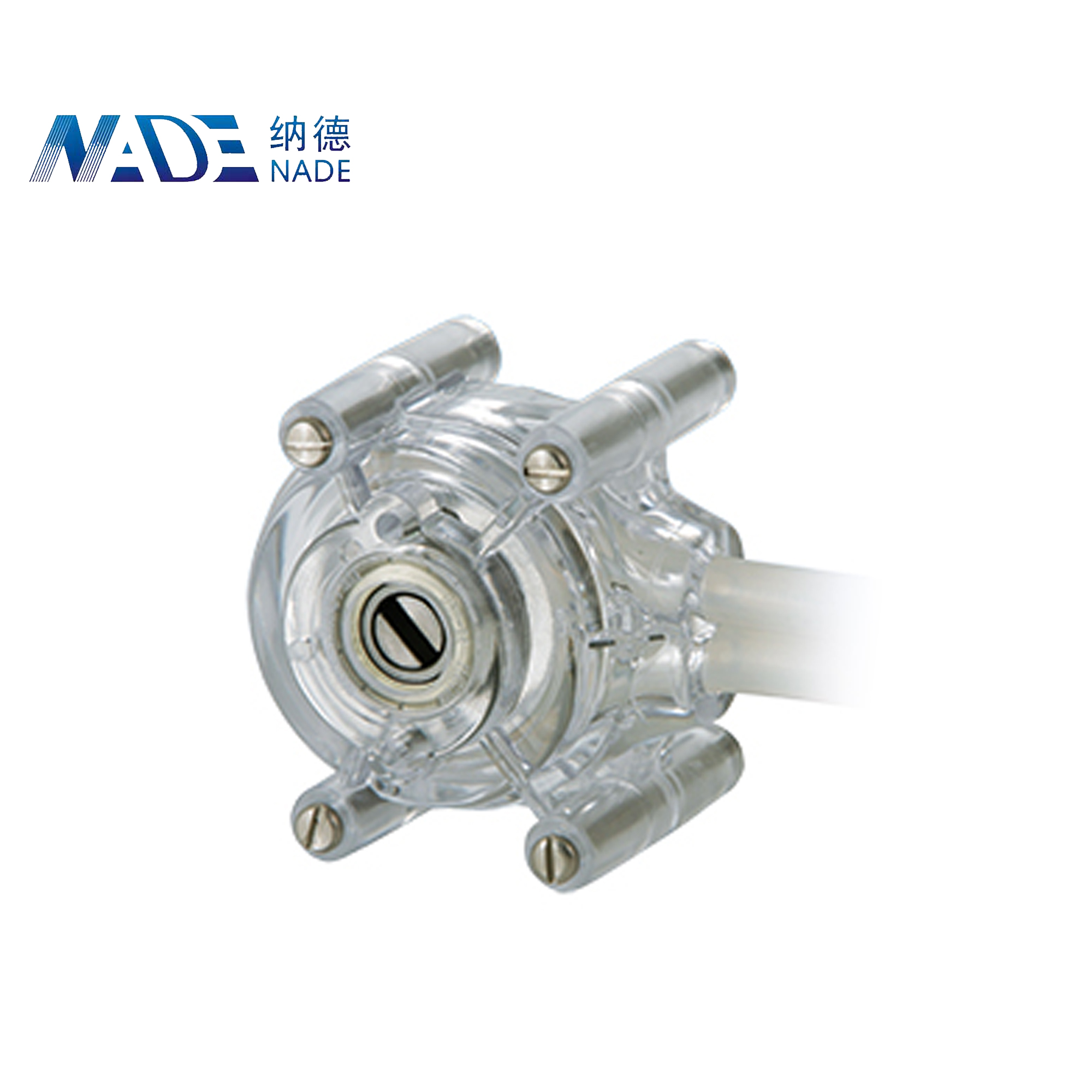

Pump Head	Tubing	Flow Rate (ml/min)	Weight(kg)
YZ1515x, YZⅡ15	13#, 14#, 19#, 16#, 25#, 17#, 18#	380	4.04
YZ2515x	15#, 24#	270
YZⅡ25	15#, 24#, 35#, 36#	500
FG15-13	13#, 14#, 19#, 16#, 25#, 17#, 18#	430	3.92
FG25-13	15#, 24#	320
DMD15-13-B DMD15-13-D	2x13#, 2x14#, 2x19#, 2x16#, 2x25#	375	4.07
BZ15-13-A	14#	22	3.95
BZ15-13-B	16#	80
BZ15-13-C	25#	150
BZ15-13-D	17#	270
BZ25-13-B	24#	250
DG15-24	16#, 25#, 17#	300 (Single Channel)	4.46
DG15-28	Wall Thickness: 0.8-1, ID≤3.17, 13#, 14#	75(Single Channel)	4.31
DG-(1,2,4,6,8)6 rollers	Wall Thickness: 0.8-1, ID≤3.17	48(Single Channel)	3.84-3.91
DG-(1,2,4)10 rollers		32(Single Channel)

We have different pump head models, please choose 1 or more among above list.

Tubing Specifications:
