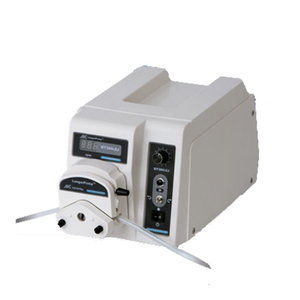

NADE L100-1E Dispensing Peristaltic Pump(0.0002-380ml/min)

  • 1 year

  • NADE

  • L100-1E

  • China

  • Other, laboratory, industry, Other

  • 0.07-0.27Mpa, Low Pressure

  • Peristaltic Pump

  • 0.8-7.9mm

  • AC100V~240V/15W,50~60Hz

  • Electric

  • 0.0002ml/min-380ml/min

  • 0.1 to 100.0 rpm, reversible(CW/CCW)

  • IP31

  • AC100V~AC240V/15W,50~60Hz

  • Liquid pumping

  • Other

Product Description

Introductions

The price we posted is for L100-1E + YZ1515x, if you prefer other pump heads, please contact us for new price.

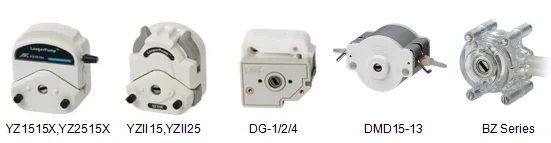

Peristaltic pump L100-1E can be loaded YZ1515X, YZ2515X, YZII15, YZII25, DG-1, DG-2,DMD15-13 and KZ Series . The pump delivers flow rates from 0.2μL to 380 mL/min.A variety of exquisite color options, different colors can be used to intuitively identify different types of applications.Compact Structure, small-foot print, save more space on your benchtop.Metal housing with anti-corrosion paint treatment, prolong pump life time.

Specification:

- Speed:0.1rpm-100rpm, CW/CCW
- Speed resolution:0.1rpm
- Display:3-digit LED display for current speed,2 LED indicators for running direction
- Control Mode:Membrane keypad control
- Prime:Fast filling or emptying at full speed
- Power-off memory:Return to previous status when power on
- EMC:Comply with EMC Directive 2014/30/EU
- Dimension(L*W*H):197mm*110mm*91mm
- Power supply:AC100V~AC240V/15W,50~60Hz
- Operating temperature:0℃~40℃
- Relative humidity:<80%

- Weight:2.3kg

- IP rating:IP31

Functions and Features:

1.Compact Structure, small-foot print, save more space on your benchtop
2.Concise function, easy operation, improve work effeciency
3.Metal housing with anti-corrosion paint treatment, prolong pump life time.
4.Good electromagnetic compatibility, ensure stable and reliable operation.

Parameters:

Pump Drive Type: L100-1E

Pump head

Tubing

Flow Rate ( */min)

Weight (kg)

YZ1515X,YZⅡ15

13#,14#,19#,16#,25#,17#,18#

380

2.84

YZ2515X,YZⅡ25

15#,24#

270

DMD15-13-B

DMD15-13-D

2x13#,2x14#,2x19#,2x16#,2x25#

350

2.83

BZ15-13-A

14#

22

BZ15-13-B

16#

77

BZ15-13-C

25#

160

2.75

BZ15-13-D

17#

300

BZ25-13-B

24#

300

DG-(1,2)6 rollers

Wall Thickness :0.8-1,

ID≤3.17

48

2.64-2.71

DG-(1,2)10 rollers

32

We have different pump head models, please choose 1 or more among above list.

NADE L100-1E Dispensing Peristaltic Pump(0.0002-380ml/min)

Tubing Specifications:

NADE L100-1E Dispensing Peristaltic Pump(0.0002-380ml/min) NADE L100-1E Dispensing Peristaltic Pump(0.0002-380ml/min)
