NADE
LEAD-2
China
Water Distribution, laboratory, industry
0.1-0.27Mpa, Low Pressure
Peristaltic Pump
3.1-6.4mm
220V
Other
Standard
Electric
Axial Flow Pump
max. 1200ml/min
1.0 to 100.0 rpm, reversible
Liuid pumping
Product Description

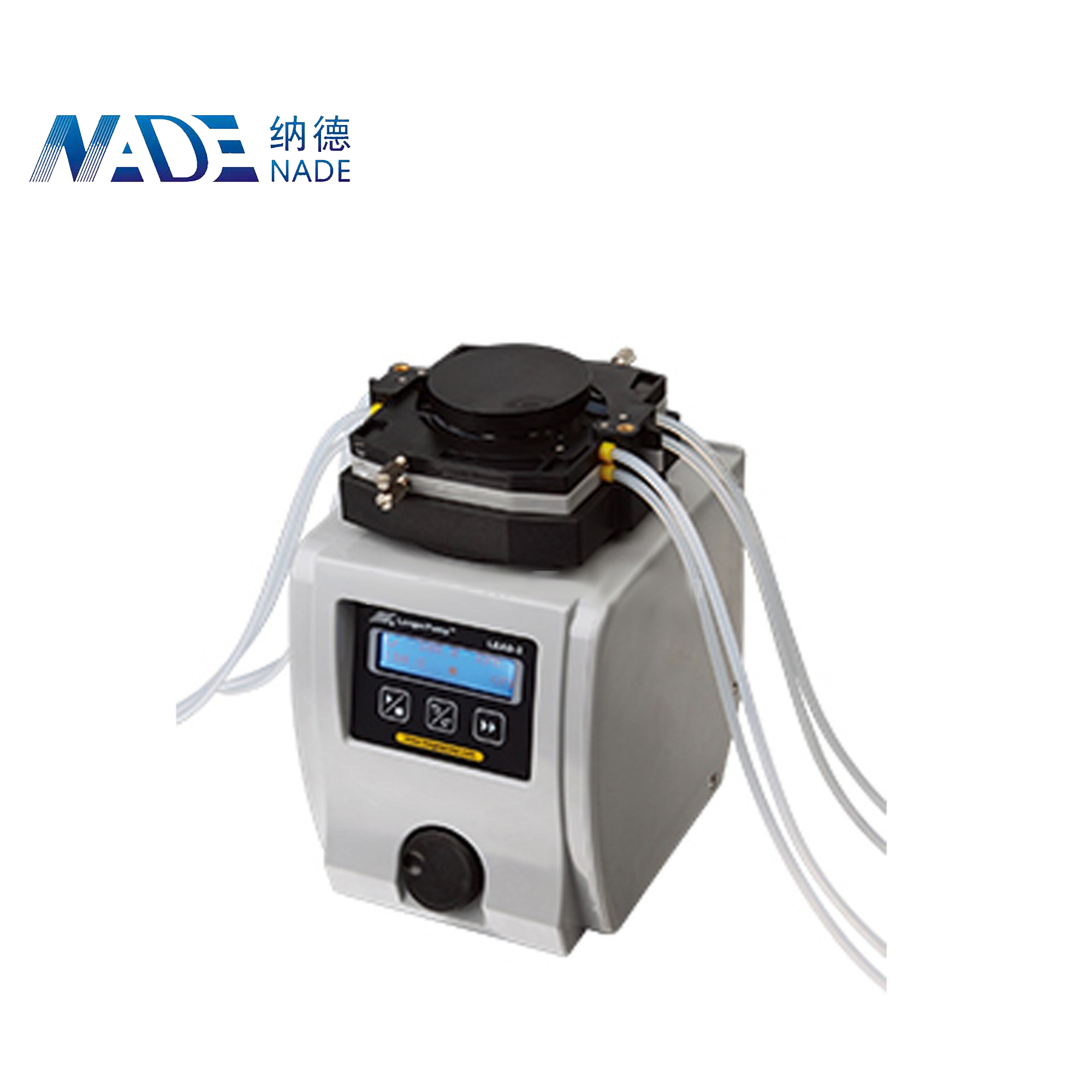

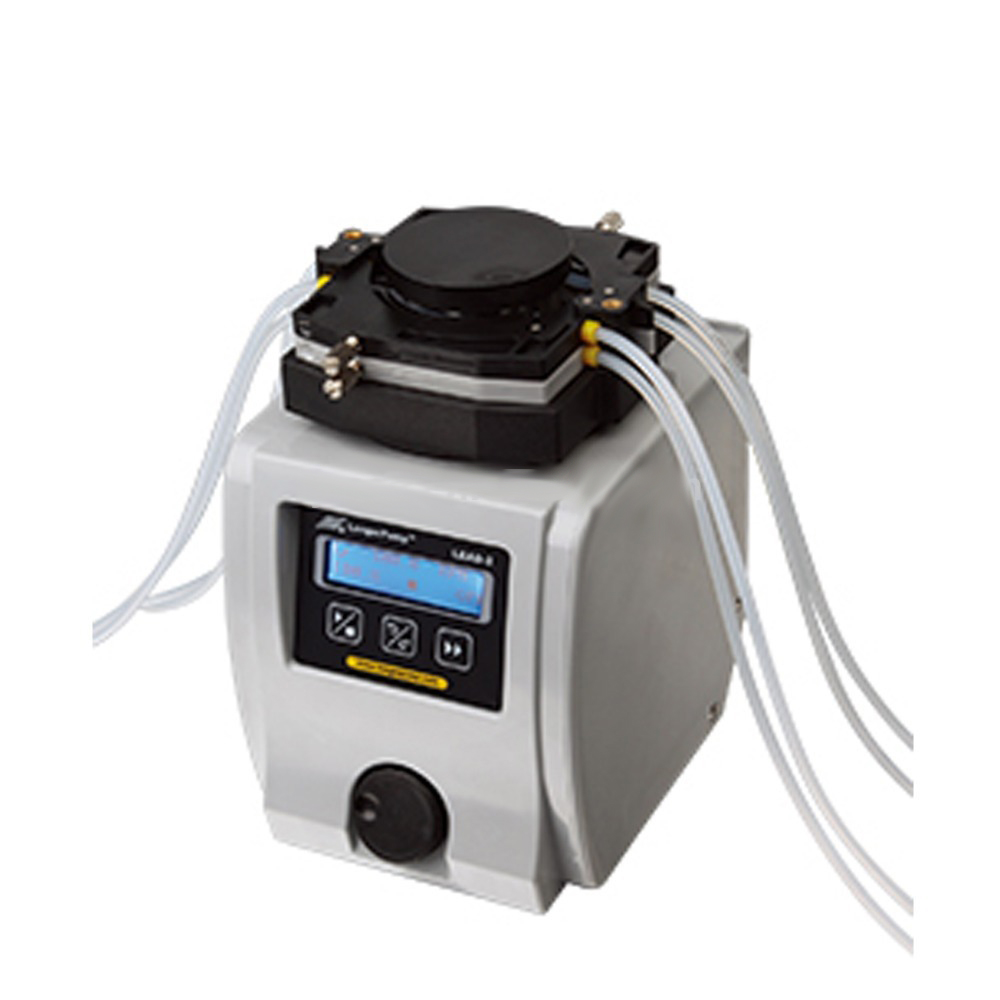

Multi-channels Peristaltic Pump Lead-2 can be loaded Lead15-48, Lead15-88, Lead15-24, Lead15-44 and max.8 channels are available. The pump delivers flow rates from 0.005 to 350 mL/min. It has flow rates display and flow rates calibration functions. It also has functions of speed adjustment, start/stop, cw/ccw, prime (rinsing), tubing selection, RS485 communication, analog control, etc.
- Speed: 1.0 to 100.0 rpm, reversible
- Speed resolution: 0.1 rpm
- Speed control: Rotary encoded switch coupled with membrane keypad
- Display: 128 × 32 graphic LCD displays current running status
- External control: Start/stop, direction, speed control (0-5V,0-10V,0-20mA, 0-10KHz)
- Communication: RS485
- Power supply: AC 90-260V 50/60 Hz (standard)
- Power consumption: < 50W
- Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
- Dimensions (L × W × H):190 × 162 × 275 (mm)
- Drive weight: 3.5 kg
- IP rating: IP 31
- Vertical structure
- Accept 4 kind of special pump heads.
- Display can switch between flow rates and speed.
- Calibration function for more accurate flow rates
- Computer control available through RS485 communication
- Prime key for fast filling and emptying

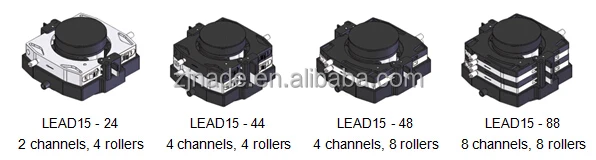

| Pump drive Type: LEAD - 2 | ||||
| Pump Head | Channle/Roller | Tubing | Max.Flow Rate(ml/min) | Weightml/min |
| LEAD15 - 24 | 2/4 | 16# 25# 17# | 300 (single channel) | 4.36 |
| LEAD15 - 44 | 4/4 | 4.42 | ||
| LEAD15 - 48 | 4/8 | 13# 14#,Id≤3.17(mm) WT 0.8-1(mm) | 75 (single channel) | 4.48 |
| LEAD15 - 88 | 8/8 | |||
Tubing Specifications:
