NADE L100-1S-1 Standard Peristaltic Pump(0.00015-500ml/min)

  • 1 year

  • NADE

  • L100-1S-1

  • China

  • laboratory, industry, Other

  • 0.07-0.27Mpa, Low Pressure

  • Peristaltic Pump

  • 0.8-9.6mm

  • AC100V~240V/100W,50~60Hz

  • Other

  • Electric

  • 0.00015ml/min-500ml/min

  • 0.01 to 100.0 rpm, reversible(CW/CCW)

  • IP31

  • AC100V~240V/100W,50~60Hz

  • Max.8

  • Liquid pumping

  • Other

Product Description

Introductions

The price we posted is for L100-1S-1 + YZ1515x, if you prefer other pump heads, please contact us for new price.

1.Mainly designed for Laboratory and light industry applications
2.With precise speed control in 0.01rpm resolution (10000:1 turndown ratio), and flow rate calibration function, the pump has more accurate and wider range of flow rate.
3.With the intelligent fan control, the pump has lower noise and better energy efficiency.
4.LCD with specially designed run screen displays parameters and running status, which provides enough information for correct operation.

Specification:

- Speed:0.01rpm-100rpm,CW/CCW
- Speed resolution:0.01rpm resolution within the speed of 0.01rpm-10rpm
- 0.1rpm resolution within the speed of 10rpm-100rpm
- Display:LCD
- Control mode:Keypad control
- Work mode:Speed control mode and flow rate mode
- Flow rate mode:Flow rate is displayed and the pump runs continuously at the set flow rate
- Flow rate calibration:Improve the flow rate accuracy
- Flow rate setting range:0.01uL/min-999L/min, unit could be set as uL/min, mL/min or L/min
- Timing function:Set the running time (0-30min), the pump could run/stop automatically
- Parameter memory:Operating parameters will be saved automatically.
- Pump status when powered up:The pump status when powered up could be set as stop or - as the status before power loss.
- Prime:Fast filling or emptying at full speed
- Keypad lock function:Keypad can be locked to prevent the misoperation.
- Dimension(LxWxH):232*142*149(mm)
- Power supply:AC100V~240V/25W,50/60Hz
- Operating temperature:0℃~40℃
- Relative humidity:<80%
- IP rating:IP31
- Weight:2.38kg

Functions and Features:

Parameters:

Type L100-1S-1

Pump Head

Tubing

Flow Rate (ml/min)

Weight(kg)

YZ1515x, YZ15

13#, 14#, 19#, 16#, 25#, 17#, 18#

0.6uL/min-380mL/min

2.78

YZ2515x

15#, 24#

16uL/min-270mL/nin

YZ25

15#, 24#, 35#, 36#

16uL/min-500mL/min

FG15-13

13#, 14#, 19#, 16#, 25#, 17#, 18#

0.5uL/min-430nL/min

2.66

FG25-13

15#, 24#

22uL/min-320mL/min

DMD15-13-B

DMD15-13-D

2x13#,2x14#,2x19#,2x16#,2x25#

2uL/min-375mL/min

2.81

BZ15-13-A

14#

3uL/min-22mL/min

BZ15-13-B

16#

8uL/min-80mL/min

BZ15-13-C

25#

16uL/min-150mL/min

2.69

BZ15-13-D

17#

27Ll/min-270mL/min

BZ25-13-B

24#

27uL/min-250mL/min

DG15-24

16#,25#,17#

8uL/min-300mL/min(single

channel)

3.2

DG15-28

Wall Thickness :0.8-1,

ID≤3.17,13#,14#

0.31uL/min-75mL/min(single

channel)

3.05

DG-(1,2,4,6,8)6 rollers

Wall Thickness :0.8-1,

ID3.17

0.21uL/min-48ml/min(single

channel)

2.58-3.01

DG-(1,2,4)10 rollers

0.15uL/min-32mL/min(single

channel)

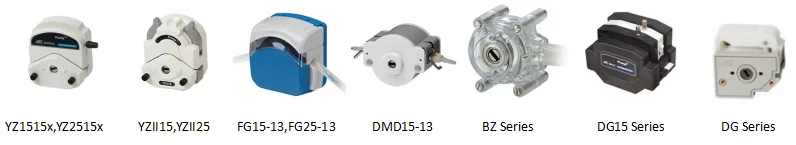

We have different pump head models, please choose 1 or more among above list.
