WT300F+DMD25 6L/MIN Intelligent Dispensing Peristaltic Pump

Flow range (ml/min): 0.006~4000
Speed range (rpm): 0.1-350
Speed resolution (rpm): 0.1rpm
Dispensing volume: 0.05ml~9999L
Availability:
  • WT300F+DMD25

  • 110~240 50/60hz

  • 1

  • 1 year

  • China

Product Description

WT300F-(DMD25)

Introduction:

     WT300F/WT600F intelligent dispensing peristaltic pump adopts LF- Touch-OS software system, color LCD touch screen with intuitive and clear displaying interface. Brushless servo motor drive with large torque, free maintenance. Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements. The standard communication protocol, the pump is easier to be connected with other equipment. With intelligent temperature control fan, reduce noise, stainless steel housing, easy to clean, corrosion resistant.





Working Principle and Selection of Peristaltic pump:

       The most significant advantage of peristaltic pump is to use tubing as pump chamber,the pump and fluid don't pollute with each other.Only need to change another tubing when it cleans,it can greatly save high time cost of dismounting and maintance.

       Peristaltic pump can transmit fluid in following industries:food processing, pharmzcy,chemical process,laboratory studies,agriculture and water treatment.Specific applications including: distribution, sampling, measurement, filtering,fermentation.In a short,as long as it is fluid,peristaltic pump can pump.

       Peristaltic pump is an ideal choice,as it can pump the fluid of abrasive & corrosive many cases.

       For one best peristaltic pump,the key is that choosing suitable pump head,tubing and drive.The special application should choose the function of peristaltic pump.

       For the specific need,we can provide pump head,tubing materials and tubing size with different specifications. Different combination can deal with different liquid transmission requirements.




Function and Features

True color LCD display, touch screen and key operation.

Flow mode, volume mode, time mode and copy mode optional

Three dispensing modes store five groups of working parameters automatically (power-off memory).

Start stop, positive and reversible direction, full speed, speed adjustment, state memory and other functions

Flow display, flow control, flow accumulation

Brushless servo drive, large torque, high efficiency and maintenance free

Flow rate calibration

Infrared remote control function

Peristaltic pump professional operating system, wizard prompt operation, more convenient

Intelligent temperature control fan to minimize noise

The external control signal controls the start and stop, positive and reversible direction, time dispensing, optocoupler isolation, and the external control analog quantity adjusts the speed

communication, support Modbus communication protocol, easy to connection with various control equipment

The circuit board is sprayed with three proofing paint to achieve dust-proof and moisture-proof effect

Strong anti-interference characteristics, wide voltage design, suitable for complex power supply environment

The shell is made of 304 stainless steel, which is easy to clean and can effectively prevent the corrosion of various acid, alkali, salt and organic solvents

Large torque output, multiple pump heads can be installed to realize the combination of different pump heads and drivers

Optional footswitch or delete or timer for dispensing fluid.



Specification

Technical parameters

WT300F

WT600F

Flow range (ml/min)

0.006-4000

0.006-1690

0.006-2900

0.06-6000

Speed range (rpm)

0.1-350 rpm

0.1-600 rpm

Speed resolution (rpm)

0.1rpm

Dispensing volume

0.05ml~9999L

Dispensing time

1~9999, 0 Infinite loops

Dispensing interval time

0.1~999.9S/Min/H

Power supply

AC100~240V, 50Hz/60Hz

External control

Input level 5V,12V(standard),24V(optional)

External control analog0-5v(standard),0-10v,4-20mA(optional)

Communication interface

RS485 communication interface, MODBUS protocol is available.

Work environment

Temperature 0 ~ 40°C; Relative humidity <80%

IP grade

IP31




WT300F/WT600F Applicable Pump head and tube,flow parameters:

Drive type

Pump head

Channel number

Tube(mm)

Single channel flow rate(ml/min)

WT300F

YZ15

1, 2, 4

13#14#16#19#25#17#18#

0.006~1300

YZ25

1, 2, 4

15#24#

0.16~990

YT15

1, 2, 4

13#14#16#19#25#17#18#

0.006~1300

YT25

1, 2, 4

15#24#35#36#

0.16~1690

DT15-14

1

19#16#25#17#

0.07~1300

DT15-24

2

19#16#25#17#

0.07~1300

DT15-44

4

19#16#25#17#

0.07~1300

KZ25

1, 2

15#24#35#36#

0.25~3500

DMD25

1

15#24#35#36#

0.4~4000

WT600F

WT600F-65

YZ15

1

13#14#16#19#25#17#18#

0.006~2300

YZ25

1

15#24#

0.16~1700

YT15

1

13#14#16#19#25#17#18#

0.006~2300

YT25

1

15#24#35#36#

0.16~2900

KZ25

2

15#24#35#36#

0.25~6000

Note: A whole set peristaltic pump includes: pump driver, pump head, pump tubing. When sending quotation, please choose suitable or inquire us by telling the application.




Filling Application Reference Table

Flling Fluid volume

Pump Head

Tube

Speed(rpm)

Filling Time(S)

Reliability Error(%)

30ml

DMD25

35#

>300

<0.7

1

50ml

DMD25

36#

>300

<0.85

1

80ml

KZ25

36#

>300

<0.96

1

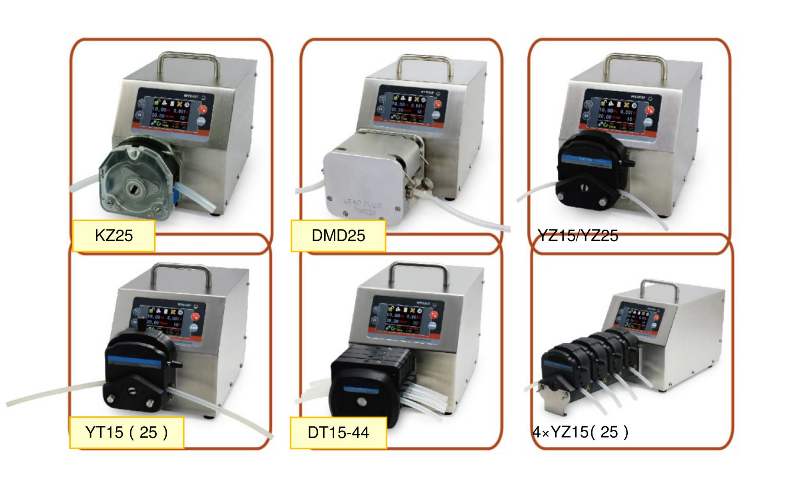

WT300F/WT600F Applicable Pump head pictures:

wt300

Note: WT300F+DMD25 6L/min, the volume of liquid is between 100 microliters and 500 ml, and the range of liquid volume is large, which can meet the filling requirements of filling users in a wide range. The product is durable and has a stainless steel casing. It is mainly used in pharmaceutical factories to regularly and quantitatively fill liquid products such as various reagents and liquid medicines. High precision, high efficiency and stable use.
