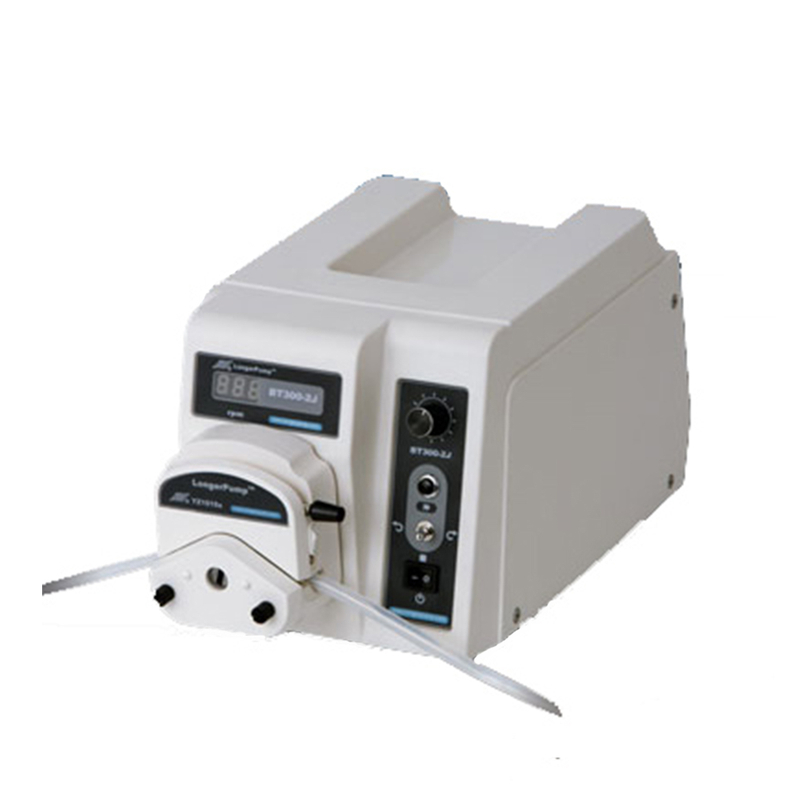

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

  • Nade

  • BT300-2J

  • Zhejiang, China

  • Water Distribution, laboratory, industry

  • 0.07-0.27Mpa, Low Pressure

  • Other

  • 0.8-9.6mm

  • 220V

  • Other

  • Air Pump

  • Diesel

  • Reciprocating Pump

  • Medium Flow Rate Peristaltic Pump

  • 1 to 300 rpm, reversible

  • 3-digit LED displays current speed

  • 3-digit LED displays current rpm

  • RS485

  • YZ1515X, YZ2515X,YZII15, YZII25

Product Description

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Product Description

Instruction
Precise peristaltic pump BT300-2J can be loaded YZ1515X,YZ2515X,YZII15, YZII25. The pump delivers flow rates from 0.07 to 1140 mL/min. Its speed can be adjusted manually or automatically through external control interface. Store the running parameters automatically. Easy to operate.
Specifications
- Speed: 1 to 300 rpm, reversible
- Speed resolution: 1 rpm
- Speed control: Rotary encoded switch
- Display: 3-digit LED displays current speed
- Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
- Power supply: AC 90 - 260V 50/60 Hz
- Power consumption: < 48 W
- Operating condition: Temperature 0 to 40°C Relative humidity < 80%
- Dimensions (L×W×H): 285×207×180 (mm)
- Drive weight: 3.6 kg
- IP rating: IP 31
Functions and Features
- Applicable pump heads: YZ1515X, YZ2515X,YZII15, YZII25
- Prime button for fast filling and emptying
- Adjust speed manually or automatically through External interface
- Realize computer control through RS-485 communication interface.
- Memory function: Storing the running parameters automatically
- Equipped with Longer Dispensing Controller for filling function
Parameters
Type Product
Code
Pump Head Tubing Max. Flow Rate(ml/min) Weight
(kg)
BT300-2J 0502311 YZ1515x YZII15 13# 14# 19# 16# 25# 17# 18# 1140 4.0
YZ2515x 15# 24# 840
YZII25 15# 24# 35# 36# 1500
DG15-24 16# 25# 17# 900 (single channel) 4.4

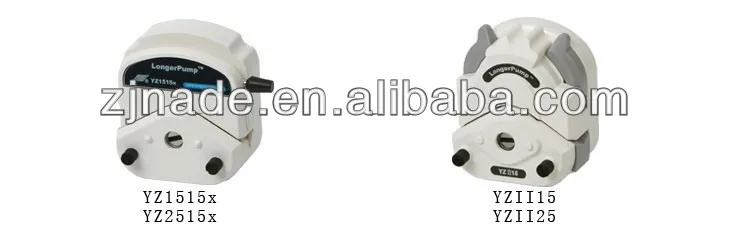

Suitable Pump Head

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Tubing Specifications

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

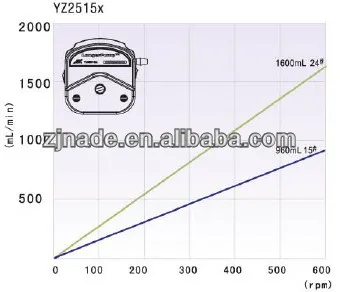

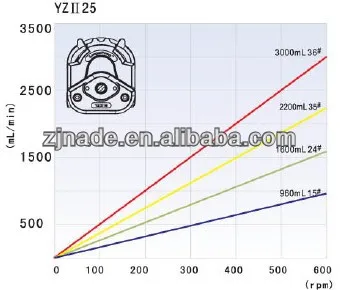

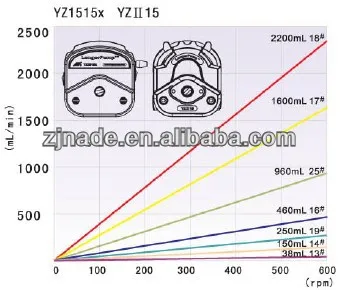

Flow Rate Curves:

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Packaging & Shipping

Our Packaging Details:

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Our Shipping

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Company Information

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

Nade Pump Medium Flow Rate Peristaltic Pump BT300-2J

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
