Nade
BT100-2J
Zhejiang, China
laboratory, Cryogenic
0.07-0.27Mpa, Low Pressure
instrument
0.8-6.4mm
AC 176-264V, 50Hz/60Hz
other
Air Pump
Diesel
0.1 to 100 rpm, reversible
0.1 rpm
Membrane keypad
3-digit LED displays current rpm
RS485
YZ1515X, YZ2515X, YZII15,YZII25, DG-1, DG-2
Product Description

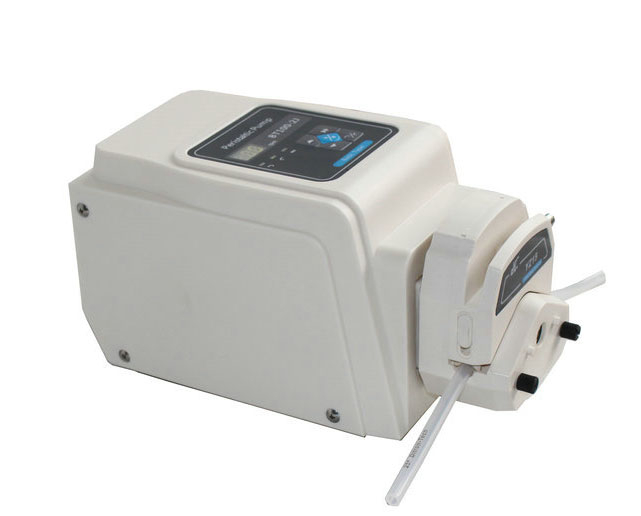

Nade Pump Low Flow Rate Peristaltic Pump BT100-2J
Instruction:
Precise peristaltic pump WT600-3J is one kind of high IP rating and high-efficiency product, it features a maintenance-free brushless DC motor and application of specific integrated circuit with big torque (1.5 N.M), small vibration. It can drive various single/dual channels pump heads to provide flow rate from 4.2 to 6000 mL/min.
Specification:
- Speed: 60-600 rpm, reversible
- Speed accuracy: ±1.0%
- Speed resolution: 1 rpm
- Torque output: ≥1.50 N.M
- Display: 3 Digital LED display rpm
4 pcs LED indicators display the working state
- Memory Function: Storing the running parameters automatically
- External control: Start/stop, direction, speed control (0.5-5V,1-10V,0-20mA, 1-10KHz are corresponding to 60-600rmp)
- Communication interface: RS485
- Power supply: AC 176-264V, 50Hz/60Hz
- Power Consumption: ≤200W
- Cooling mode: Natural cooling heat
- Operation condition: Temperature 0 to 40°C, relative humidity: <80%
- Dimensions (L×W×H): 273×190×272(mm)
- Drive weight: 7.3kg
- IP rating: IP55
Function and feature :
- High IP rating: suitable for moist and dust working condition
- Prime key: Fast filling and emptying.
- Memory function: Storing the running parameters automatically
- Communication function: realize the computer control through RS485 interface
- Display: 3 digits LED displays the speed of the pump
- External control: Start/stop, CW/CCW and speed
- Suitable for different pump heads and tubing
- High output torque which can drive double pump heads
- Brushless DC motor, maintenance-free
- Operation mode: Switch and membrane keypad. Easy to operate
| Type | Product | Pump Head | Tubing | Max. Flow rate(ml/min) | Weight |
| BT100-2J | 05.02.11A |
| 13# 14# 19# 16# 25# 17# 18# | 380 | 2.7 |
|
|
|
| 15# 24# | 270 | 2.7 |
|
|
|
| ID≤3.17mm | 48 (single channel) | 2.5-2.6 |
|
|
|
|
| 32 (single channel) | 2.5-2.6 |
|
|
|
| 16# 25# 17# | 300 (single channel) | 3.1 |
|
|
|
| 13# 14# ID≤3.17mm | 75 (single channel) | 3 |
