NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

  • Conductivity/ TDS/Sal./Res.Meter
  • Zhejiang, China
  • NADE
  • SX713
  • 0.00 ~ 19.99

Product Description

Introduction:

Built-in microprocessor chips, intelligent functions such as automatic calibration,

automatic temperature compensation, data storage, function set-up, automatic power-off and low voltage display.

Automatic identification of 8 conductivity standard calibration solutions,

two options of standard calibration solutions: Europe and America series and China series.

Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1,

only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.

Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and

salinity to ensure the conversion precision of the full scale.

Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
Plastic conductivity electrode with automatic temperature compensation, fast response and accurate result.
Meter meets IP57 rating, equipped with calibration solution and portable case.

Category Product Name Basic features and specifications
Conductivity Measuring range

Conductivity:(0.00~19.99)μS/cm (20.0~199.9)μS/cm (

200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm

TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm

Resolution

0.01/0.1/1μS/cm 0.01/0.1 mS/cm
Accuracy Meter:±1.0% FS, Overall:±1.5% FS

Temp. compensation range

(0 ~ 50)°C(manual)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25°C,20°C and 18°C
Other Technical Parameters

Data storage

200 groups
Storage content Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

meter:(65×120×31)mm/180g Suitcase: (360×270×76)mm/1.6Kg
Quality and safety certification ISO9001:2000, CE and CMC
Working Condition

Environment temperature

5 ~ 35 °C(0.01grade)

Environmental humidity

≤85%

IP rating

IP57 Dustproof and waterproof

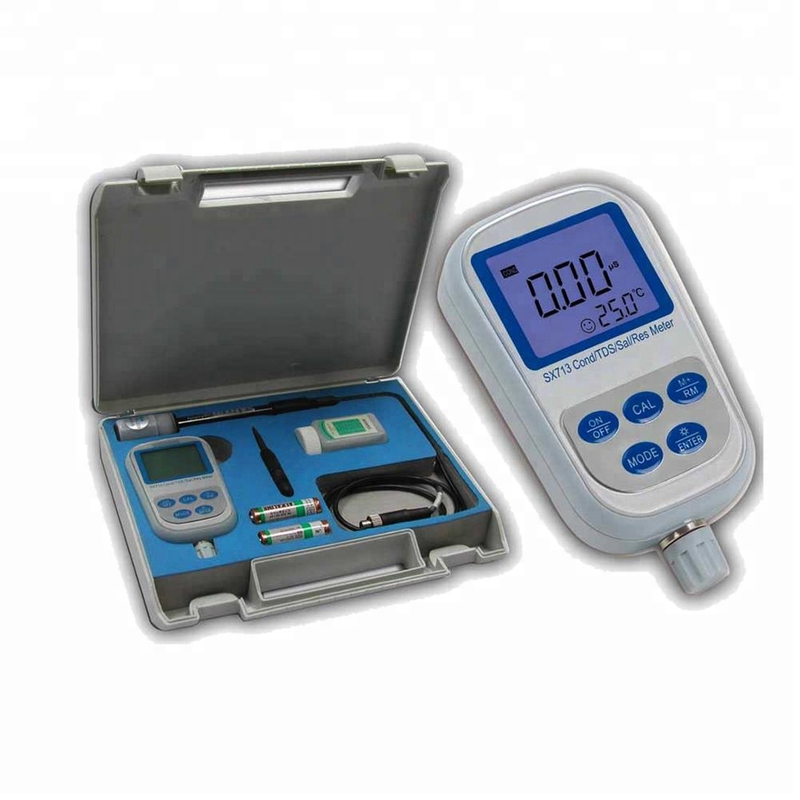

Standard kits includes:

1. Model SX713 Conductivity/TDS/Salinity/Resistivity meter 1unit
2. 2301-S plastic conductivity electrode 1pc
3. 1413μS/cm conductivity standard solution (50mL) 1btl
4.Screw driver 1pc
5. Spare AA batteries 2pcs
6. Operation manual 1pc
7. Carrying case 1unit

Optional accessories:

Accessory Category

Description

Specifications

Conductivity electrode

2301-S Plastic conductivity electrode

K=1.0 cm-1,ATC, suited for conductivity measurement of general water solution, 8 pin connector.

DJS-0.1-S Glass conductivity electrode

K=0.1cm-1,ATC, suited for pH measurement of of high purity water, 8 pin connector.

Glass flow cell

Match DJS-0.1-S electrode.

Conductivity standard

84 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

1413 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

12.88 mS/cm conductivity standard

500mL/250mL/50mL(bottle)

146.6 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

1408 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

12.85 mS/cm conductivity standard

500mL/250mL/50mL(bottle)

Portable case

Small portable case(255×210×50)mm

Match single electrode.

Big portable case(360×270×76)mm

Match multi- electrode

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

Packaging & Shipping

Our Packaging Details:

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

Our Shipping

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

Company Information

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

NADE SX713 Portable Conductivity/ TDS/Sal./Res.Meter

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
