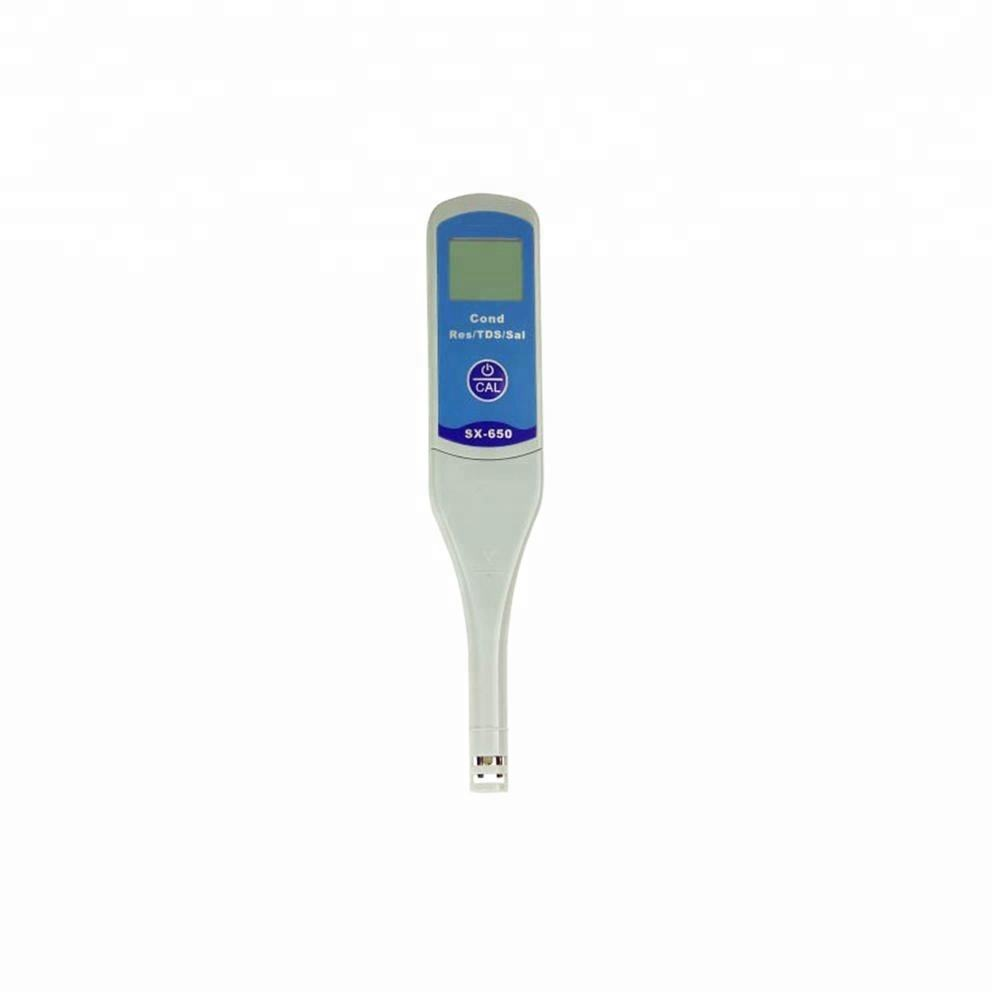

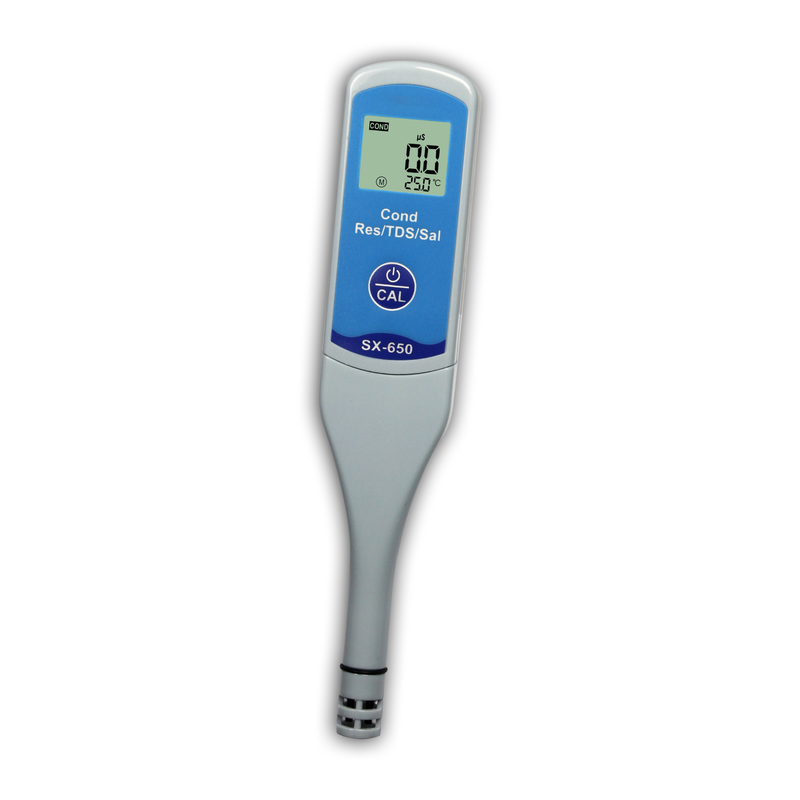

SX650 Slim Type Conductivity Pen Meter

Electrical conductivity: 0 ~ 50.0μS/cm; 50 ~ 500μS/cm
                                               0.50 ~ 5.00 mS/cm; 5.0~ 50.0 mS/cm
Resistivity: 0 ~ 20.0 MΩ·cm
Temperature: 0 ~ 50.0℃
Model:
SX650
Availability:
Inquire

  • SX650

  • NADE

  • CR2032 Cell Battery*2

  • 1

  • 1 year

  • China

Product Description

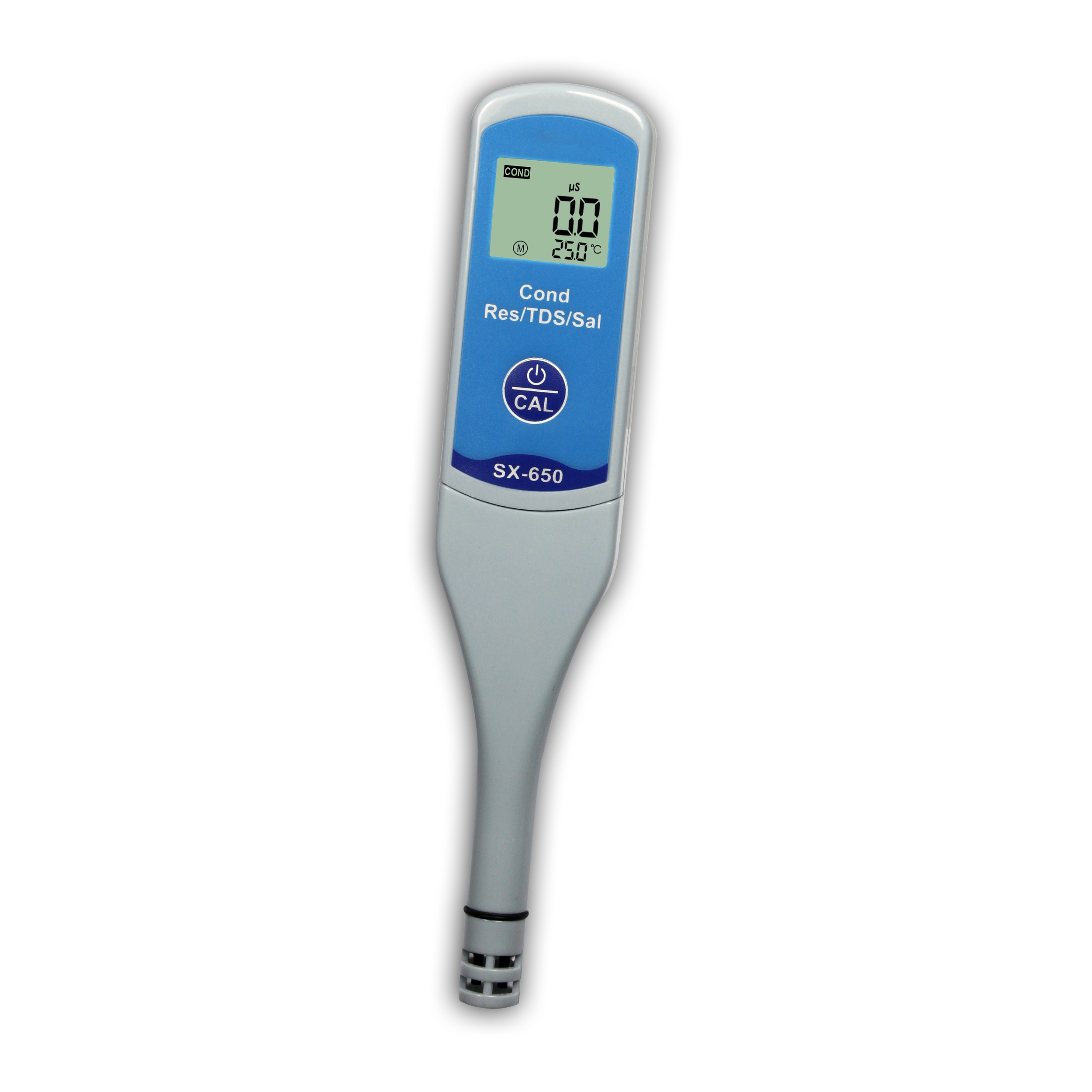

SX650 P1

SX650 Pen-Type Conductivity Meter
It is compact and mini-sized, making it extremely easy to carry. It is used for testing the conductivity/TDS/salinity/resistivity
of regular aqueous solutions, and is suitable for scenarios such as hydroponics, aquaculture, swimming pools and hot springs,
water treatment, and factory cooling towers. Comes with a sturdy carrying case that contains all accessories, and performs
exceptionally well for field and on-site use.


Features：

* Ultra-compact and ultra-slim design: Dimensions are 148 × 29 × 14 mm, with an electrode diameter of 10 mm, enabling measurement directly inside test tubes.
* All operations require only one button, making operation simple and convenient.
* Equipped with a robust platinum-black conductivity electrode, which is replaceable.
* Featuring intelligent chip design and advanced measurement technology, it includes intelligent functions such as 1-point
  automatic calibration, automatic temperature compensation (0~50℃), function setting, auto-shutdown, and low-voltage display.
* The instrument adopts advanced automatic frequency conversion and automatic voltage regulation technology, which extends the measurement range of the conductivity electrode with cell constant K=1 by 5 to 10 times. Only one-point calibration is required to meet the measurement accuracy requirements.
* Its unique porous platinum-black technology increases the electrode's surface area, reducing current density, minimizing
  polarization effect, and lowering capacitance interference.
* Complies with the IP57 ingress protection rating, making it suitable for field and on-site use.

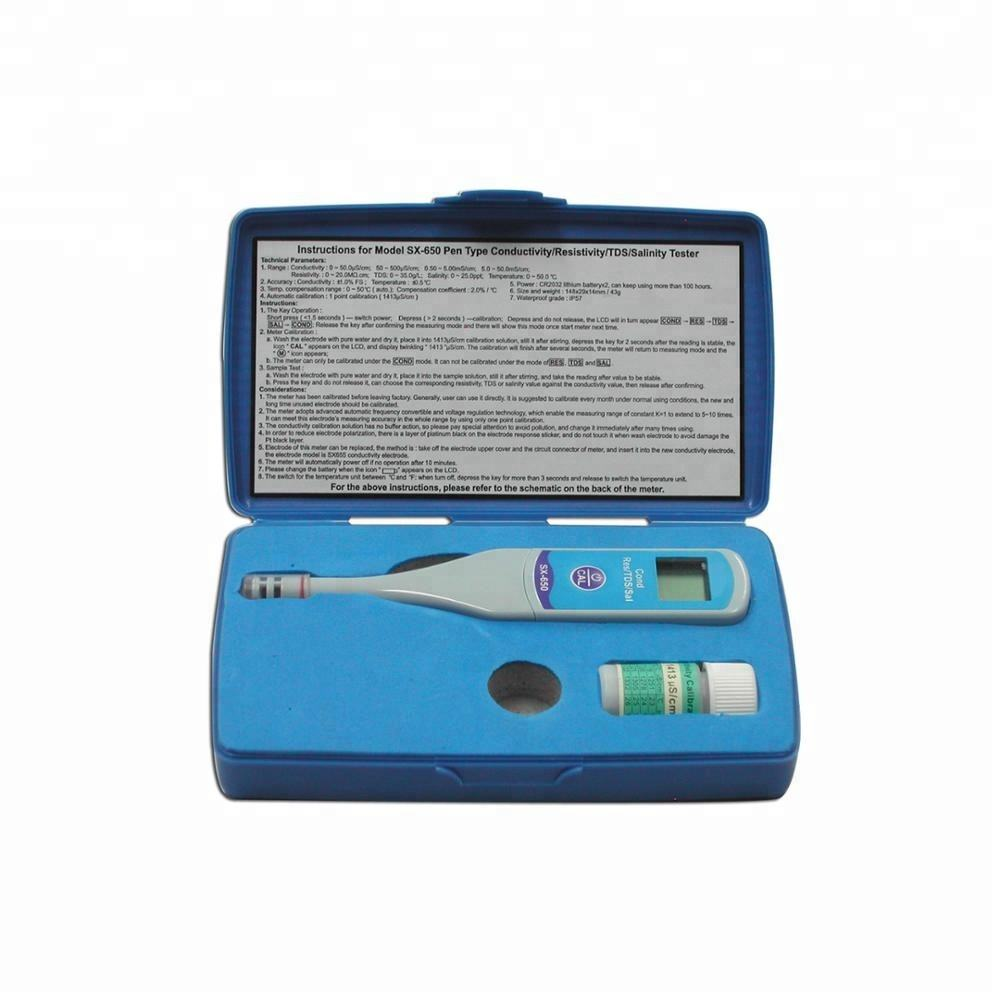

* Comes with a dedicated pocket-sized carrying case that contains accessories such as calibration solutions, further enhancing portability and usability.


Application

SX610

Specification

Model

SX610

SX620

SX630

SX650







Measuring range





pH:  0 to 14.0 pH

Temp: 0 to 60 ˚C





-1 to 15.00 pH; Temp: 0 to 60˚C





±1999 mV

Conductivity: 0 ~ 50.0μS/cm; 50 ~ 500μS/cm; 0.50 ~ 5.00 mS/cm;  5.0~ 50.0 mS/cm

Resistivity:  0 ~ 20.0 MΩ·cm

TDS: 0 ~ 35.0 g/L

Salinity: 0 ~ 25.0 ppt

Temp: 0 to 50˚C

Accuracy

pH: ± 0.1 pH

Temp: ±1˚C

pH: ± 0.01 pH Temp: ±1˚C

±0.2%FS

Conductivity: ±1.0% FS，

Temp: ±0.5℃

Automatic temperature compensation

0 to 60˚C

0 to 60˚C

No

0 to 50˚C

 Automatic calibration

1-point calibration

1-3 points calibration

No

1-point calibration

Calibration solution

pH 7.00

pH 7.00, pH 4.00, pH 10.01

222mV ORP Solution

1413μS/cm

Electrode Soaking Solution

Yes

Yes

Yes

No

Waterproof rating

IP57

Power

CR2032 Cell Battery*2

Automatic power-off

Automatic shutdown after 10 minutes of inactivity

Dimension and Weight

Meter: 148*29*14mm/43g

Meter Box: 168*96*28mm 180g
