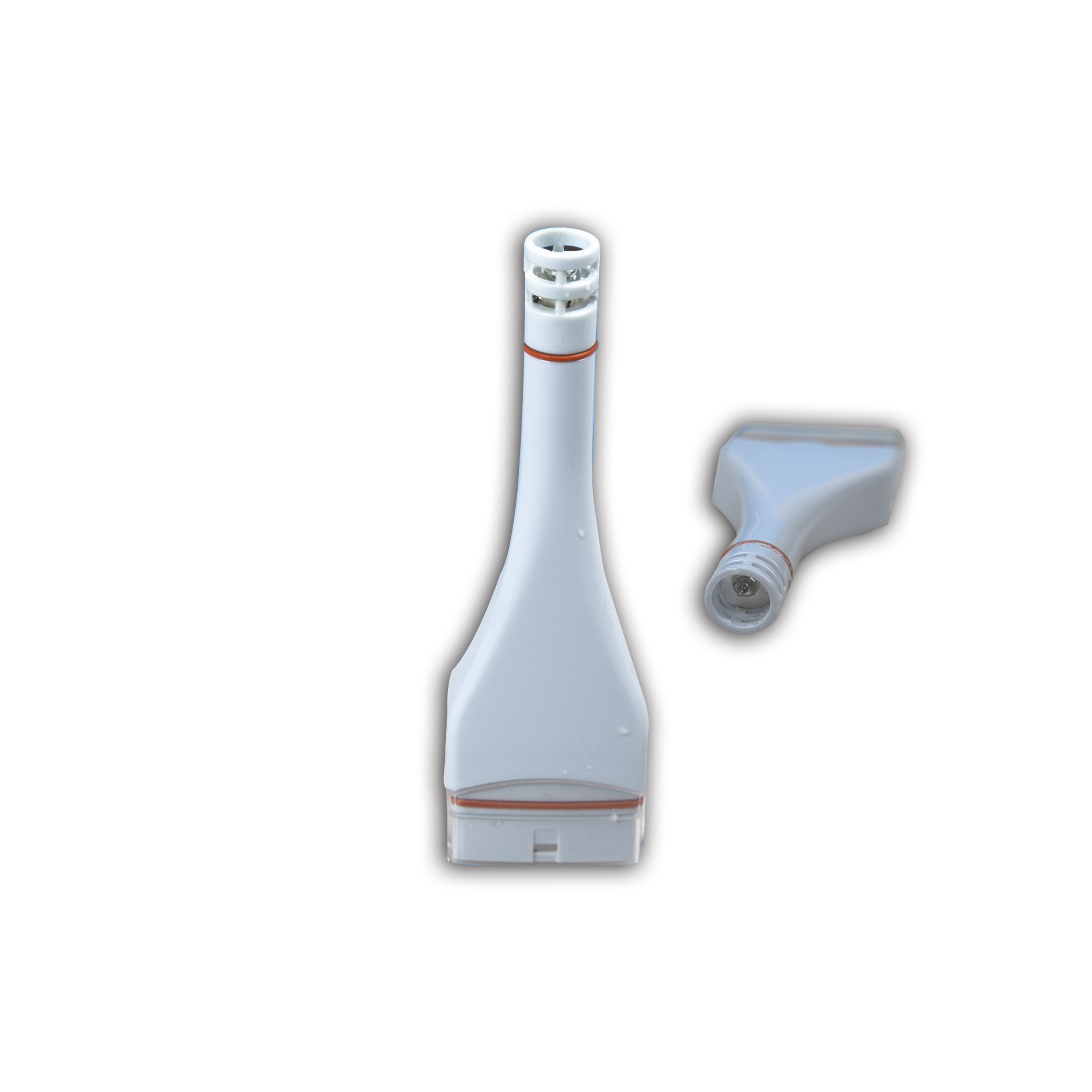

SX630 Slim Type ORP Pen Meter

Measurement range:-1999 mV ~ +1999 mV
Accuracy: ±0.2%FS
Automatic temperature compensation: No
Calibration solution: 222mV ORP Solution

Model:
SX630
Availability:
Inquire

  • SX630

  • NADE

  • CR2032 Cell Battery*2

  • 1

  • 1 year

  • China

Product Description

SX630

SX630 Pen-Type ORP Meter
It is compact and mini-sized, making it extremely easy to carry. It is used for testing the ORP value of regular aqueous solutions
and is suitable for scenarios such as hydroponics, aquaculture, swimming pools and hot springs, water treatment, and factory
cooling towers. Comes with a sturdy carrying case that contains all accessories, and performs exceptionally well for field and
on-site use.


Features：

* Equipped with a replaceable platinum ORP electrode.
* All operations require only one button, ensuring easy use.
* Ultra-compact and ultra-slim design: Dimensions are 148 × 29 × 14 mm, with an electrode diameter of 10 mm, enabling measurement directly inside test tubes.
* Featuring intelligent chip design and advanced measurement technology, it includes intelligent functions such as function setting, auto-shutdown, and low-voltage display.
* Complies with the IP57 ingress protection rating, making it ideal for field and on-site applications.
* Comes with a dedicated pocket-sized carrying case that contains accessories like calibration solutions and test vials, further enhancing portability and usability.


Application

SX610

Specifications

Model

SX610

SX620

SX630

SX650







Measuring range





pH:  0 to 14.0 pH

Temp: 0 to 60 ˚C





-1 to 15.00 pH; Temp: 0 to 60˚C





±1999 mV

Conductivity: 0 ~ 50.0μS/cm; 50 ~ 500μS/cm; 0.50 ~ 5.00 mS/cm;  5.0~ 50.0 mS/cm

Resistivity:  0 ~ 20.0 MΩ·cm

TDS: 0 ~ 35.0 g/L

Salinity: 0 ~ 25.0 ppt

Temp: 0 to 50˚C

Accuracy

pH: ± 0.1 pH

Temp: ±1˚C

pH: ± 0.01 pH Temp: ±1˚C

±0.2%FS

Conductivity: ±1.0% FS，

Temp: ±0.5℃

Automatic temperature compensation

0 to 60˚C

0 to 60˚C

No

0 to 50˚C

 Automatic calibration

1-point calibration

1-3 points calibration

No

1-point calibration

Calibration solution

pH 7.00

pH 7.00, pH 4.00, pH 10.01

222mV ORP Solution

1413μS/cm

Electrode Soaking Solution

Yes

Yes

Yes

No

Waterproof rating

IP57

Power

CR2032 Cell Battery*2

Automatic power-off

Automatic shutdown after 10 minutes of inactivity

Dimension and Weight

Meter: 148*29*14mm/43g

Meter Box: 168*96*28mm 180g
