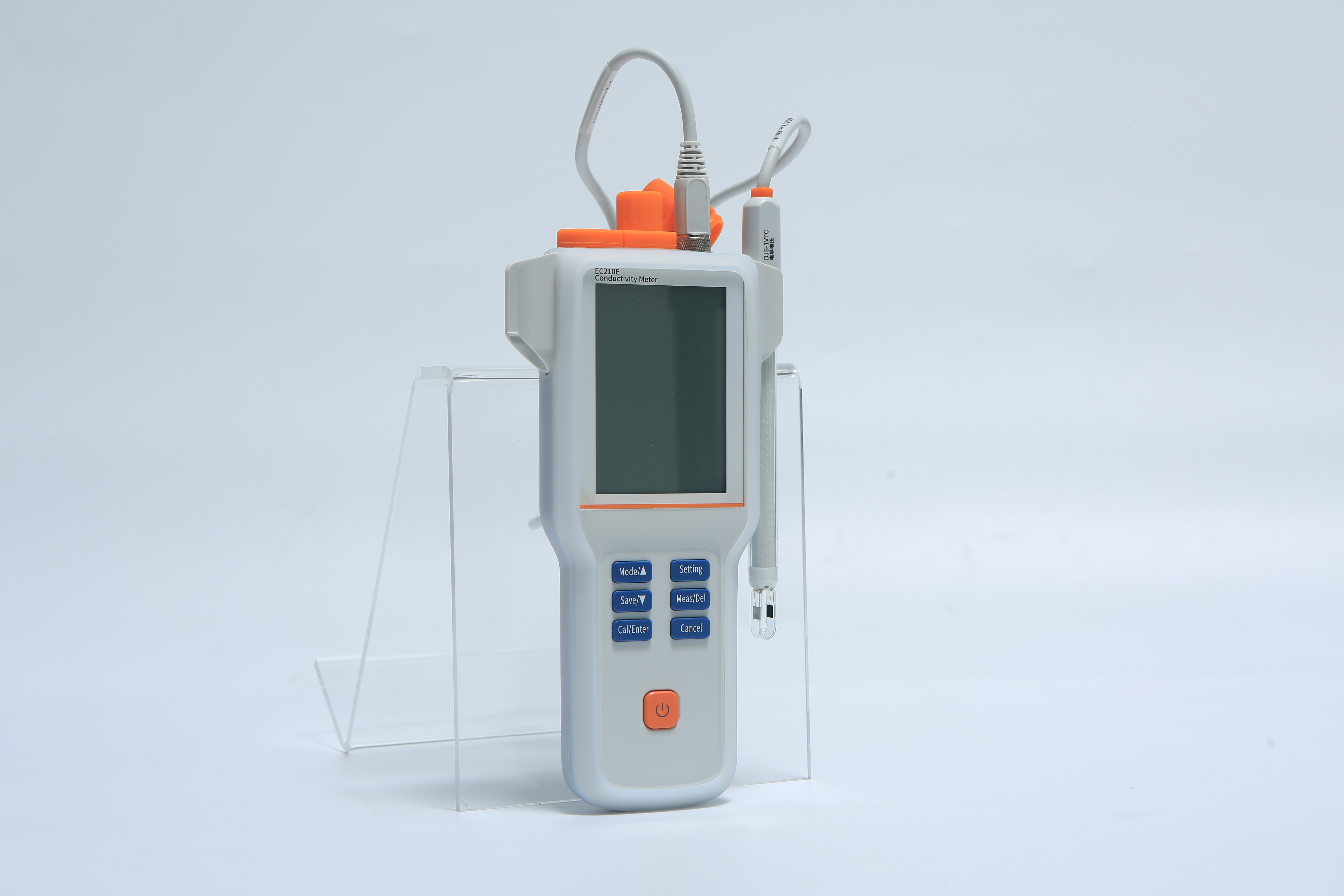

EC210E Portable Conductivity Meter

Conductivity range: 0.00 μ S/cm to 200 mS/cm
TDS range: 0.00mg/L~300g/L
Temp Range: -5 to 110 ºC, 23 to 230 ºF
Data Storage: 200 results each
Availability:
  • EC210E

  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

  • 1

  • 1 year

  • China

Product Description

EC210E

● LCD display screen, 3.5 inches.

● Multi-reading feature allows auto-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data capacity of up to 200 sets for each parameter.

● Auto-power off feature effectively extends the battery service life.

● Reset feature automatically resumes all settings back to factory default options.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

● 1 point calibration with Standard Recognition.

● Cell constant is settable

● Automatic/manual temperature compensation ensures accurate results.

Specification

Model

EC210E

Parameters

EC/Temp.(TDS)

    Conductivity

Range

0.00 μ S/cm to 200 mS/cm



Resolution

0.01 μ S/cm minimum,

various with range selection



Accuracy

± 1.0% FS



Reference Temperature

25 ºC



Calibration Points

Up to 1



Standard Recognition

84 μ S/cm, 1413 μ S/cm, 12.88mS/cm

            TDS

Range

0.00mg/L~300g/L



Resolution

0.01mg/L minimum, various with range selection



Accuracy

± 1.0%FS

     Temperature

Range

-5 to 110 ºC, 23 to 230 ºF



Unit

ºC, ºF



Resolution

0.1



Relative Accuracy

± 0.2

    Measurement

Reading Mode

Auto Read, Continuous



Reading Prompts

Reading, Stable, Locked



Temp. Compensation

ATC, MTC

Data management

Data Storage

200 results each

Inputs

Conductivity with Temp. Probe

5-pin aviation connector

  Display options

Backlight

Yes



Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off



IP Rating

IP65

       General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output



Dimensions

80 × 255 × 35 mm



Weight

400g (0.88 lb)


Configuration

DJS-1VTC EC Electrode

1413μS/cm Conductivity Standards Solution 1 Bottle (50ml/bottle)

Electrode Hanger Protective Cover

Wrist Strap Assembly


DJS-1VTC EC ElectrodeConductivity Standards Solution
