MP551 Benchtop pH/mV/Ion Concentration/Conductivity/Dissolved Oxygen Meter

pH Range: (-2.000 ~ 19.999) pH
Ion Concentration: 0.00 ~ 14.00 pX
Conductivity range: Conductivity: (0.00~20.00)μS/cm (20.0~200.0)μS/cm
(200~2000)μS/cm (2.00~20.00)mS/cm
(20.0~200.0)mS/cm (200~2000)mS/cm(K=10)
Availability:
Inquire

  • MP551

  • NADE

  • DC9V

  • 1

  • 1 year

  • China

Product Description

MP551

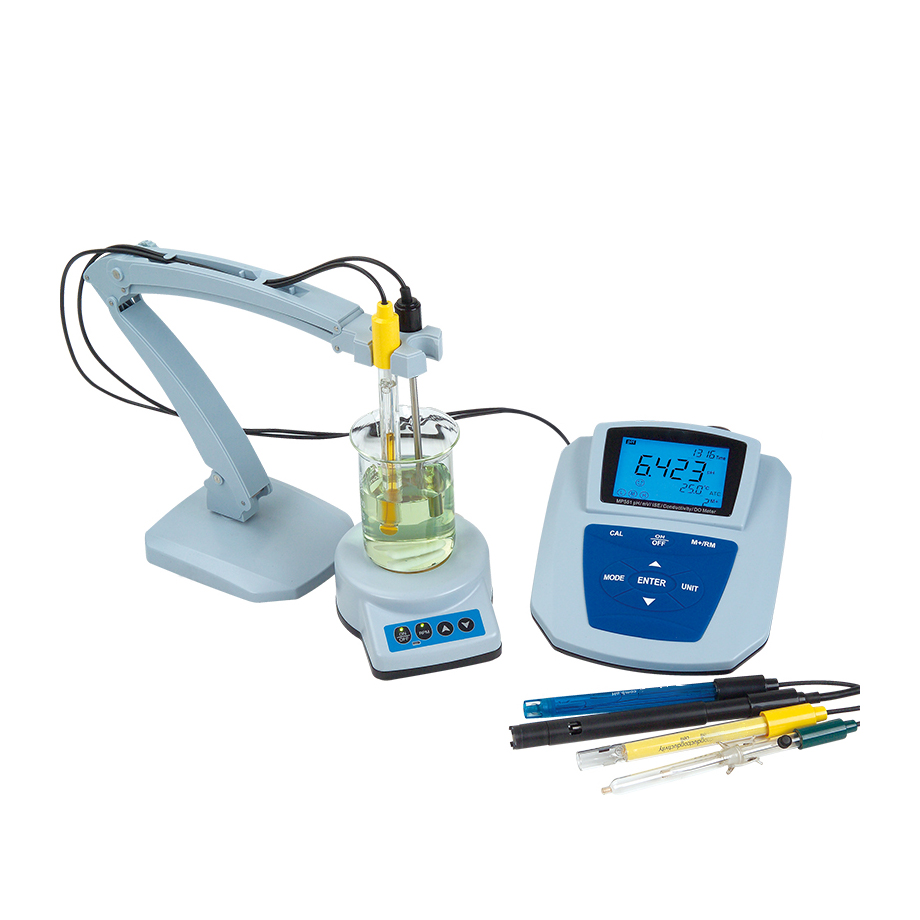

MP551 pH/mV/Ion Concentration/Conductivity/Dissolved Oxygen Meter

The MP551 is a laboratory-grade, high-precision, multi-parameter benchtop electrochemical instrument. With this instrument, you can cover all aspects of water quality testing, including more than 10 electrochemical parameters such as pH, ion concentration, conductivity, and dissolved oxygen.


It boasts an extremely wide range of applications, suitable for industries like petroleum, chemicals, pharmaceuticals, power plants, and environmental protection. It has also long enjoyed a strong reputation in the fields of education and scientific research.

Leveraging its advanced digital processing technology, the instrument consistently delivers fast, accurate, stable, and higher-precision measurement results, earning it high trust from users.

MP551 P3

Features:

It complies with GLP requirements in line with international standards and is equipped with intelligent functions including
automatic calibration, automatic temperature compensation, data storage, RS232 output, clock display, function setting, and self-diagnostic information.

It offers three distinct measurement modes: Stable Display Mode, Timed Measurement Mode, and Continuous Measurement Mode.

It automatically recognizes 13 types of pH standard buffer solutions, with four series of standard buffer solutions available for selection: European & American series, NIST series, Chinese series, and custom solutions.

It comes standard with a high-end Swiss LabSen glass rechargeable combination electrode, featuring high-precision measurement, a long-life reference system, and a thick-film low-impedance glass membrane.

It can be set to high-purity water pH measurement mode and ammonia-added pure water pH measurement mode, meeting the application requirements of industries such as electric power and petrochemicals.

It includes an EH redox potential measurement mode, which directly displays the ORP value relative to the potential of the
standard hydrogen electrode (SHE).

It automatically recognizes 8 types of conductivity standard solutions, with two series of standard solutions available: European & American series and Chinese series.

Adopting advanced conductivity measurement technology, when used with a conductivity electrode of cell constant K=1, it requires only a single-point calibration to meet the measurement accuracy requirements for the range of 0.5μS/cm ~ 200 mS/cm.

It can switch between conductivity, TDS (Total Dissolved Solids), salinity, and resistivity measurements. TDS and salinity are calculated using polynomial algorithms to ensure conversion accuracy across the entire measurement range.

The conductivity measurement mode includes a non-linear temperature compensation function for high-purity water.

The dissolved oxygen measurement mode features automatic temperature compensation, automatic salinity compensation, and automatic atmospheric pressure compensation.

The patented-structured polarographic dissolved oxygen electrode can simultaneously measure temperature, salinity, and dissolved oxygen. When used with the dedicated dissolved oxygen electrode calibration sleeve, electrode polarization takes only 3–5 minutes.

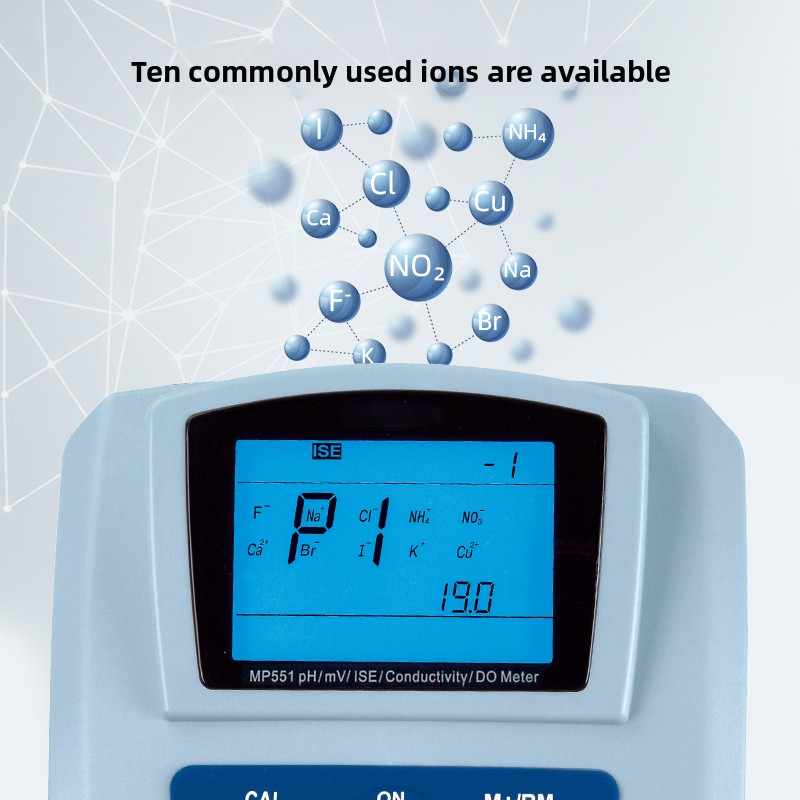

The meter stores 10 commonly used ion modes for selection (Na⁺, F⁻, Cl⁻, Br⁻, I⁻, Cu²⁺, Ca²⁺, K⁺, NH₄⁺, NO₃⁻), and other ions can also be set manually.

It can switch between four ion concentration units: pX, mol/L, mg/L, and ppm. It comes standard with an intelligent stirrer that supports rotation speed memory, facilitating consistent measurement repeatability.

The meter meets the IP54 dust and splash protection rating, and all instrument interfaces are sealed and protected with silicone caps.



Specification

Model

MP551





pH

Measuring range

(-2.000 ~ 19.999) pH

Resolution

0.1/0.01/0.001 pH

Accuracy

Meter:±0.002 pH, connect meter with electrode:±0.01pH

Stability

±0.002 pH/3h

Temp. Compensation Range

(0 ~100)°C (Automatic or Manual)


mV (ORP)

Measuring range

-1999.9mV ~0 ~1999.9mV

Resolution

0.1mV

Accuracy

±0.03% FS







Ion Concentration

Measuring range

0.00 ~ 14.00 pX

Display unit

pX, mol/L, mg/L, ppm

Accuracy

Meter:±0.5% of reading (for monovalent ions), ±1.0% of reading (for divalent ions)

Temp. compensation range

(0 to 60) ℃ ( automatic or manual )

Preset ion mode

Na+, F-, Cl-, Br-, I-, Cu2+, Ca2+, K+, NH4+, NO3





Conductivity

Measuring range

Conductivity: (0.00~20.00)μS/cm (20.0~200.0)μS/cm
(200~2000)μS/cm (2.00~20.00)mS/cm
(20.0~200.0)mS/cm (200~2000)mS/cm(K=10)
Resistivity: (0 ~ 100)MΩ·cm
TDS: (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt

Resolution

0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm

Accuracy

Meter:±0.5% FS,connect meter with electrode:±0.80% FS

Temp. compensation range

(0 ~ 50)℃(automatic )

Electrode constant

0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1

Reference temperature

25℃, 20℃ and 18℃















Dissolved Oxygen

Measuring range

(0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)%

Resolution

0.1/0.01 mg/L(ppm) 1/0.1 %

Accuracy

Meter: ±0.10 mg/L，connect meter with electrode: ±0.40 mg/L

Response time

≤30 s(25℃, 90% response)

Residual current

≤0.1 mg/L

Temp. compensation range

(0 ~ 45)℃(automatic)

Salinity compensation range

(0 ~ 45)ppt(automatic)

Air pressure compensation

(80 ~ 105)kPa(automatic)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type


Temp.

Range

-10°C ~110°C

Resolution

0.1°C

Accuracy

5~ 60℃range:±0.4℃ other range:±0.8℃




Other Technical Parameters

Data storage

300 groups

Storage content

serial number, date, time, measurement value, temperature value, ATC or MTC state

Communication connector

RS232

Power

DC9V/300mA

Size and weight

160 × 190 × 70mm/880g

Quality and safety certification

ISO9001, CE and CMC


Working Condition

Environment temperature

5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade)

Environmental humidity

≤75%

IP rating

IP54 Dustproof and waterproof
