EC110B Portable Conductivity Meter

Conductivity range: 0.00 μ S/cm to 100 mS/cm
Conductivity accuracy: ± 1.0% FS
Conductivity Reference Temp: 25 ºC
Measurement Reading Mode: Continuous
Availability:
  • EC110B
  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
  • 1
  • 1 year
  • China

Product Description

EC110B

● LCD display screen, 3.5 inches.

● Reset feature automatically resumes all settings back to factory default options.

● Auto-power off feature effectively extends the battery service life.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

● Cell constant is settable

● Manual temperature compensation ensures accurate results


Specification

Model

EC110B

Parameters

EC

      Conductivity

Range

0.00 μ S/cm to 100 mS/cm



Resolution

0.01 μ S/cm minimum,

various with range selection



Accuracy

± 1.0% FS



Reference Temperature

25 ºC

     Measurement

Reading Mode

Continuous



Reading Prompts

Reading, Stable



Temp. Compensation

MTC

Inputs

Conductivity

5-pin aviation connector

    Display options

Backlight

Yes



Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off



IP Rating

IP65

         General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output



Dimensions

80 × 255 × 35 mm



Weight

400g (0.88 lb)


Configuration

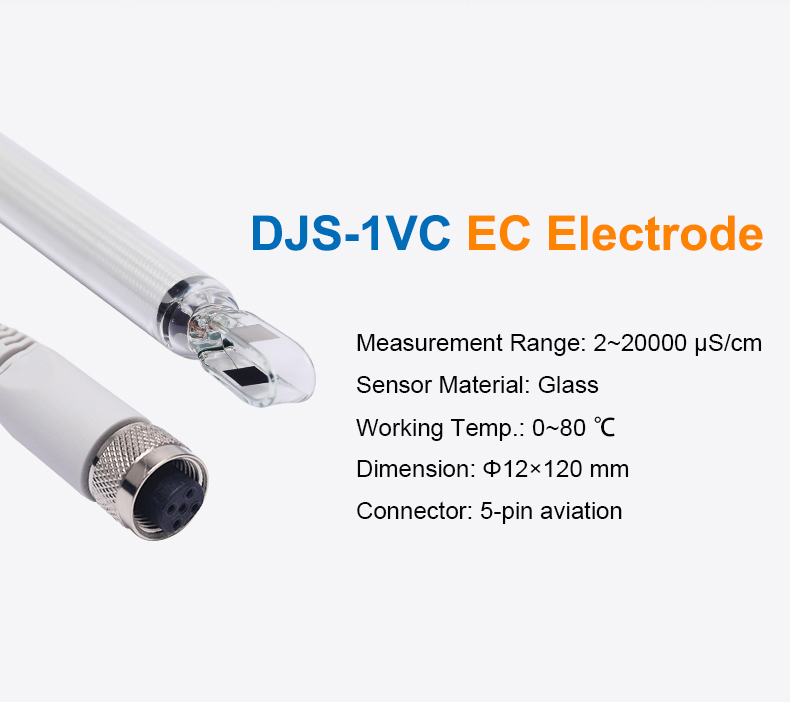

DJS-1VC EC Electrode

1413μS/cm Conductivity Standards Solution 1 Bottle (50ml/bottle)

Electrode Hanger Protective Cover

Wrist Strap Assembly


DJS-1VC EC ElectrodeConductivity Standards Solution
