MP515-01 Benchtop High-Precision Conductivity Meter

MP513

Laboratory Conductivity Meter

Conductivity measurement of conventional aqueous solutions in laboratories

An economical benchtop conductivity meter with advanced conductivity measurement technology. One conductivity electrode has a test
range of 0.5μS/cm~200mS/cm.

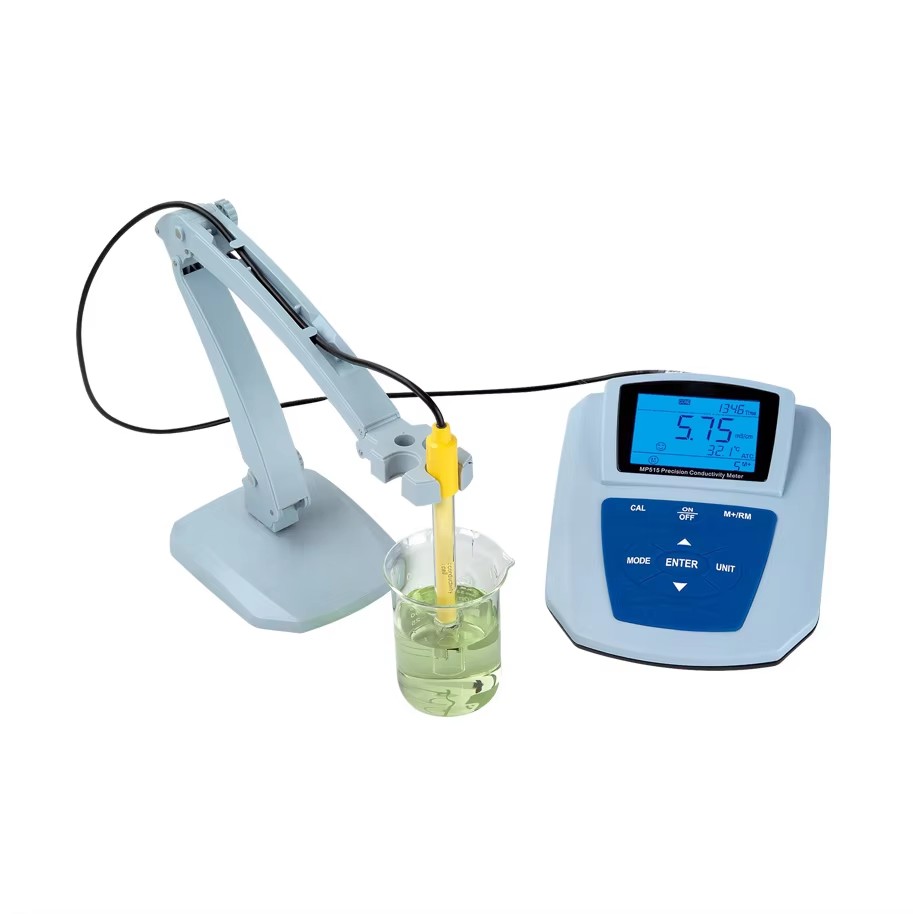

MP515-01

Precision Conductivity Meter

Precise conductivity measurement suitable for scientific research and quality control

A precision benchtop conductivity meter with a measurement range of 0 ~ 2000 mS/cm, equipped with a 2401T-M type conductivity
electrode.

MP515-02

High-Purity Water Conductivity Meter

For conductivity measurement of high-purity water

Equipped with two conductivity electrodes: the 2401T-M type conductivity electrode is for conventional aqueous solutions, and the
DJS-0.1-M type conductivity electrode is for high-purity water measurement.

MP515-03

High-Concentration Conductivity Meter

For conductivity measurement of high-concentration solutions

Equipped with two conductivity electrodes: the 2401T-M type conductivity electrode is for conventional aqueous solutions, and the
2310 type conductivity electrode is for high-conductivity measurement in the range of 200 ~ 2000mS/cm.

Measurement parameters

Conductivity/Resistivity/TDS/Salinity/Temp

Measurement range

Conductivity: 0-200.0 mS/cm, divided into 5 ranges:
(0-19.99) μS/cm,
(20.0~199,9) μS/cm,
(200-1999) μS/cm,
(2.00-19.99) mS/cm,
(20.0~200) mS/cm
TDS: (0-100) g/L
Salinity: 0-100 ppt
Resistivity: 0-100MΩ

Conductivity: 0-2000 mS/cm, divided into 6 ranges:
(0-19.99) μS/cm,
(20.0~199,9) μS/cm,
(200-1999) μS/cm,
(2.00-19.99) mS/cm,
(20.0~199.9) mS/cm,
(200~2000)mS/cm (K=10)
TDS: (0-100) g/L
Salinity: 0-100 ppt
Resistivity: 0-100MΩ

Accuracy

Conductivity/TDS/Salinity/
Resistivity: ±1.0%F.S
Temp: ±0.5℃

Conductivity/TDS/Salinity/
Resistivity: ±0.5%F.S
Temp: ±0.4℃

Other technical parameters

Auto temp. Compensation: 0 to 50℃
Data storage: 100 sets
communication interface: RS323
Power Supply: DC9V
Dimensions and Weight: 160x190x70mm/88g

Auto temp. Compensation: 0 to 50℃
Data storage: 600 sets
communication interface: RS323
Power Supply: DC9V
Dimensions and Weight: 160x190x70mm/88g

Main function

Economic benchtop conductivity meter complies with the GLP standards that meet international specifications.

The precision benchtop conductivity meter has a measurement range of 0~2000 mS/cm. It is equipped with a non-linear temperature
compensation function for high-purity water and allows setting three reference temperatures: 18°C, 20°C, and 25°C.
