EC510T
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
1
1 year
China
Product Description
● Color High contrast LCD touchscreen, 4.3 inches.
● Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
● Multi-reading feature allows auto-read, timed-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 1000 sets for each parameter (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Support for USB communication.
● Auto-power off feature effectively extends the battery service life.
● Reset feature automatically resumes all settings back to factory default options.
● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
● 1-5 points calibration automatically recognizes the standard solutions.
● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
● Temperature compensation type (none, linear, pure water)
Specification
Model | EC510T | |
Parameters | EC/Resistivity/TDS /Sal./Temp. | |
Conductivity | Range | 0.000 μ S/cm to 3000 mS/cm |
| Resolution | 0.001 μ S/cm minimum, various with range selection |
| Accuracy | ± 0.5% FS |
| Reference Temp | 5, 10, 15, 18, 20, 25 ºC |
| Calibration Points | Up to 5 |
| Calibration Reminder | Yes |
| Standard Recognition | 10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88mS/cm |
Resistivity | Range | 5.00 Ω ·cm~100.00 M Ω ·cm |
| Resolution | 0.01 Ω ·cm minimum |
| Accuracy | ± 0.5% FS |
TDS | Range | 0.000mg/L~1000g/L |
| Resolution | 0.001mg/L minimum, changed with range |
| Accuracy | ± 0.5%FS |
Salinity | Range | (0.00~8.00)% |
| Resolution | 0.01% |
| Accuracy | ± 0. 1% |
Temperature | Range | - 10 to 135 ºC, 14 to 275 ºF |
| Unit | ºC, ºF |
| Resolution | 0.1 |
| Relative Accuracy | ± 0. 1 |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temp. Compensation | ATC, MTC |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| Bluetooth | printer |
Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off |
| IP Rating | IP65 |
| Date and Time | Yes |
General | Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 90 × 255 × 40 mm |
| Weight | 500g (1. 1 lb) |

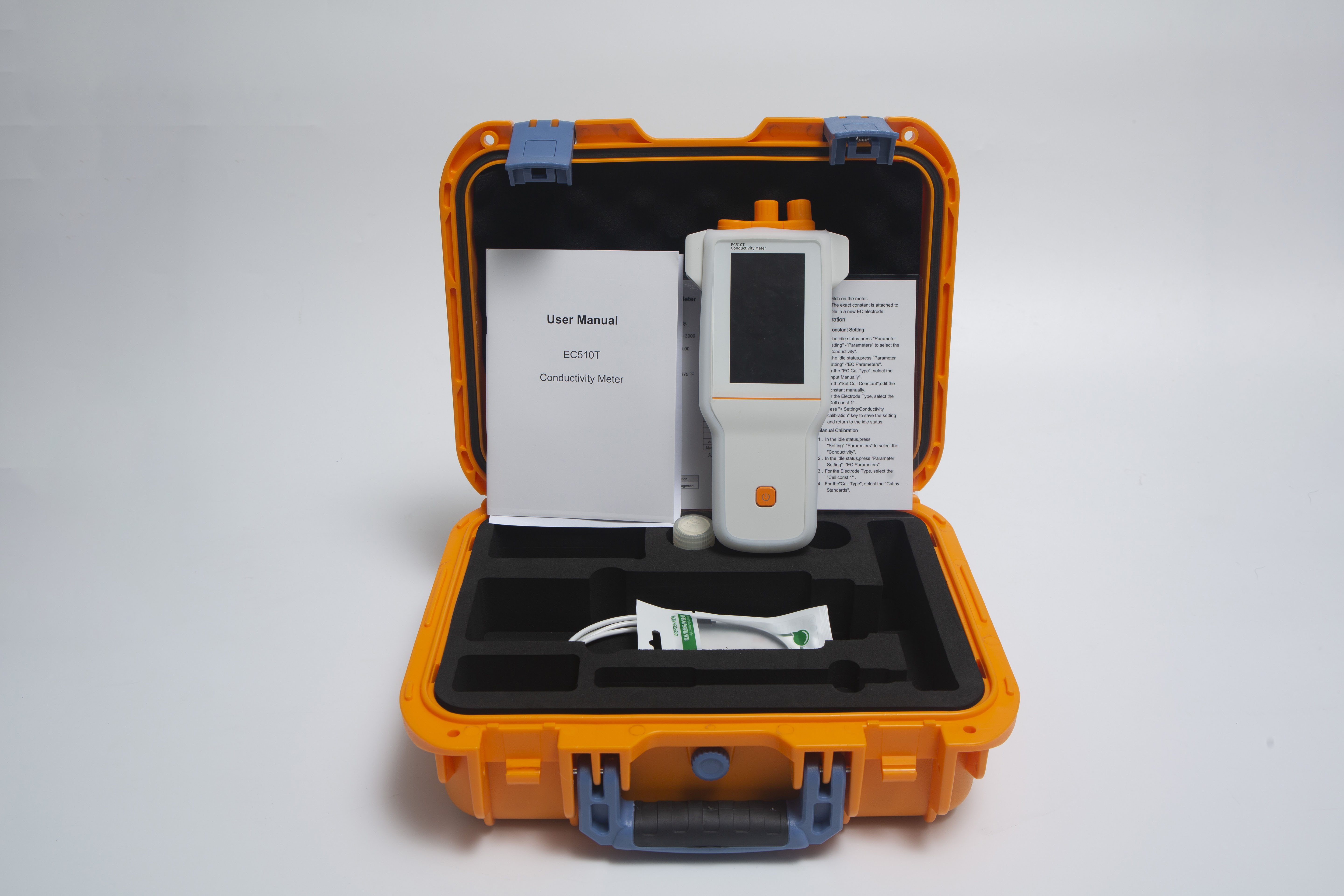

Configuration
DJS-1VTC EC Electrode
1413μS/cm Conductivity Standards Solution 1 Bottle (50ml/bottle)
Electrode Hanger Protective Cover
Wrist Strap Assembly
Touch Screen Pen
Portable Protective Case
