EC100B Benchtop Conductivity Meter

Conductivity range: 0.00 μ S/cm to 100 mS/cm

Conductivity Reference Temp: 25 ºC

Conductivity Accuracy: ± 1.5% FS

Measurement Reading Mode: Continuous

Product Description

EC100B

● LCD display screen, 6.0 inches.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● Cell constant is settable.

● Manual temperature compensation ensures accurate results.

Upgrade Function: Increase the display of conductivity constant and data stability signs

Specification

Model		EC100B
Parameters		EC
Conductivity	Range	0.00 μ S/cm to 100 mS/cm
	Resolution	0.01 μ S/cm minimum, various with range selection
	Accuracy	± 1.5% FS
	Reference Temperature	25 ºC
Measurement	Reading Mode	Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	MTC

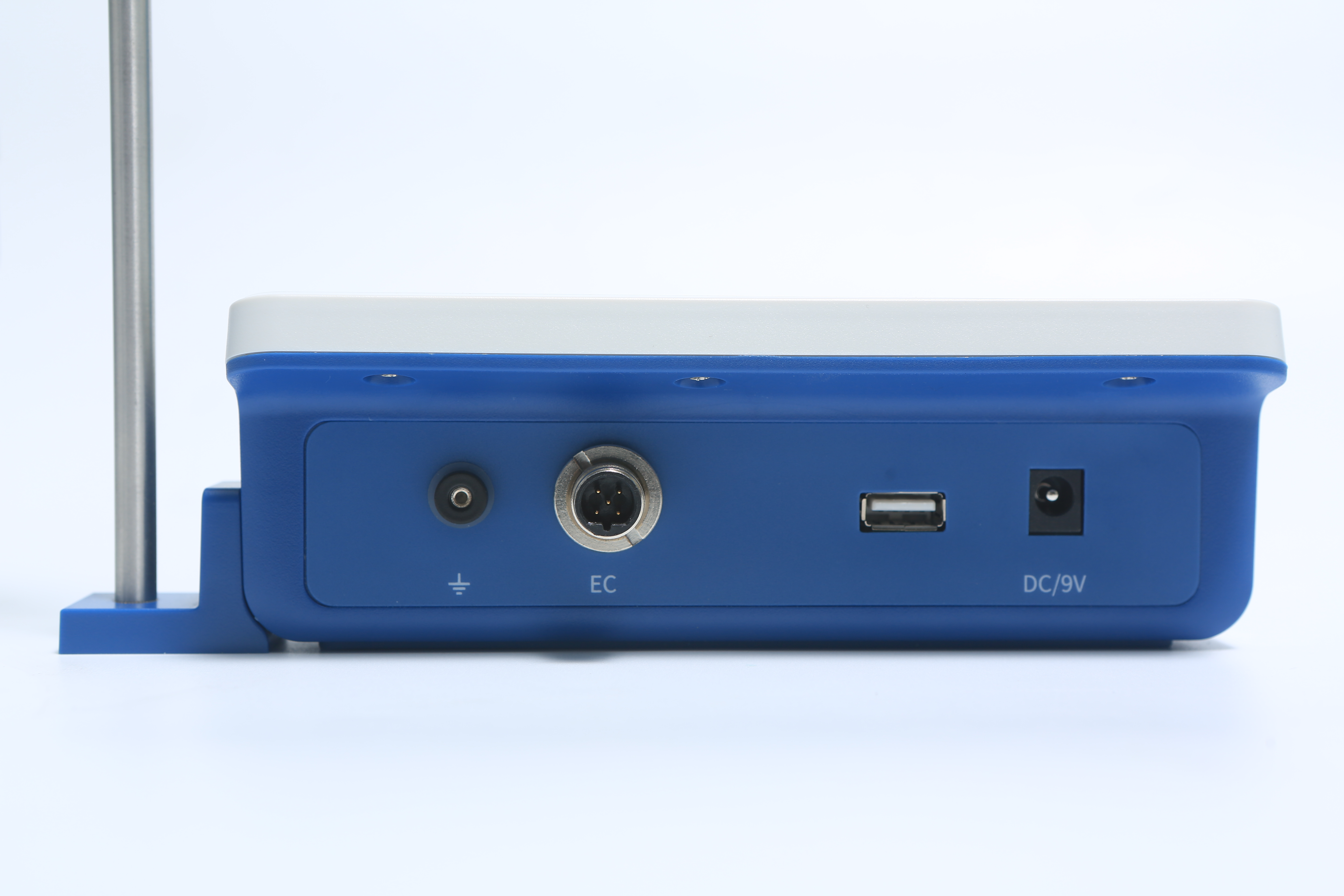

Inputs	Conductivity Probe	5-pin aviation connector
Display options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
	IP Rating	IP54
General	Power	AC Adapter, 100-240V AC input, DC9V output
	Dimensions	200 × 160 × 63 mm
	Weight	600g (1.32 lb)
