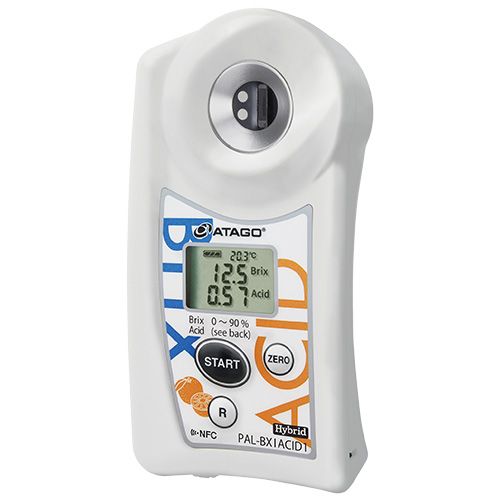

PAL-BX|ACID1 Brix-Acidity Meter

testing sugar content (Brix):0.0 to 90.0%
High Acidity Range:2.50 to 8.80%
Low Acidity Range:0.10 to 4.00%


  • 1

  • 1 year

Product Description

This Master Kit is specifically for measuring citrus and includes everything you need for easy, precise and accurate measurements.The Master Kit comes complete with a scale, 1 beaker, and 1 measuring spoon


ModelPAL-BX|ACID1 Master Kit
Acid (Total Acidity to Citric Acid Conversion),
Sugar/Acid ratio (displayed item)
RangeBrix : 0.0 to 90.0%
Low Acidity : 0.10 to 4.00%
High Acidity : 2.50 to 8.80%
10.0 to 40.0℃
ResolutionBrix : 0.1%
Acid: 0.01%
AccuracyBrix : ±0.2%
Acid : ±0.10% (0.10 to 1.00%)
Relative precision ±10% (1.01 to 8.80%)
Measurement TimeApprox. 3 seconds
Power Supply2 × AAA Batteries
International Protection ClassIP65
Dimensions & Weight55(W)×31(D)×109(H)mm, 100g


Hybrid Measurement Device


With PAL-BX/ACID, the integral parameters of fruit, sugar (Brix) and acidity can be measured with one device. It measures sugar level (Brix) through a refractometry method using light refraction. Also, it measures acidity level through electroconductivity method using electrical current.

Sugar (Brix) x Acidity Balance


Besides sugar level or sweetness, the acidity or tartness is another important element that influences the taste of fruit. By simply pressing a button, it promptly displays the indispensable sugar acid ratio of fruit and vegetables.

Simple Measurement Procedures


To measure acidity, dilute sample with water, place it on the sample stage and press the START button. Anyone can easily take these measurements.

No Reagent Required


Conventional acid level measurement such as the acid-base titration method requires large amounts of costly reagent and tedious disposal procedures. ATAGO Brix-Acidity Meters require absolutely no reagent at all!

Easy to Read Measurement Values


The acid-base titration method derives the acid content as phenolphthalein changes color when the solution is alkalized, but it is difficult to determine the equivalence point. With ATAGO Brix-Acidity Meters, anyone can easily see the results with a digital readout.

Transportable and Easy to Carry


Transportable and compact size. It is lightweight and can be easily carried by anyone.

Glassware is Unnecessary


We have heard customers tell us how they broke the glassware required for the titration method. Have peace of mind and be worry free of damage with ATAGO Brix-Acidity Meters.

Kits & Accessories


Master Kit that includes everything you need is available.
Unit + included accessories
Digital Scale … 1 pc
100mL Beaker (PMP) … 1pc
1mL Measuring Spoon … 1pc
