Product Recommendation Leak Tester:LEAK-01

Author: Site Editor     Publish Time: 2020-09-04      Origin: Site

LEAK-01 Leak Tester, using negative pressure method, is applicable to leak detection of packaging bags, bottles, cans and boxes, etc. The instrument also can be used to test seal performance of specimens after falling and compression tests.

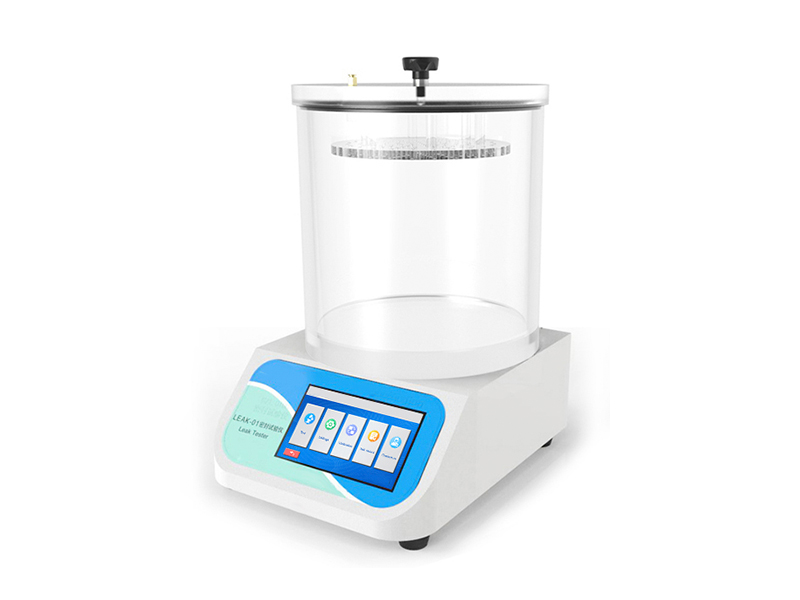

Product-Recommendation-Leak-Tester:LEAK-01

• 7” HD LCD, displaying test data and curves in real time

• With gradient test mode, which is convenient to find the critical value of sample leakage pressure quickly

• With a powerful data storage function, which can store up to 50,000 test records



Vacuum Degree:0 ~ -90kPa

Accuracy:0.1%FS

Gas Supply Pressure:0.7~0.9MPa (Not in supply scope)

Port of Gas Supply:Φ6 mm PU Tubing


There are three Vacuum Chamber Size :

Vacuum Chamber 300:φ270mm×210mm(H)(Standard)

Vacuum Chamber 400:φ360mm×585mm(H)(Optional)

Vacuum Chamber 500:φ460mm×330mm(H)(Optional)
