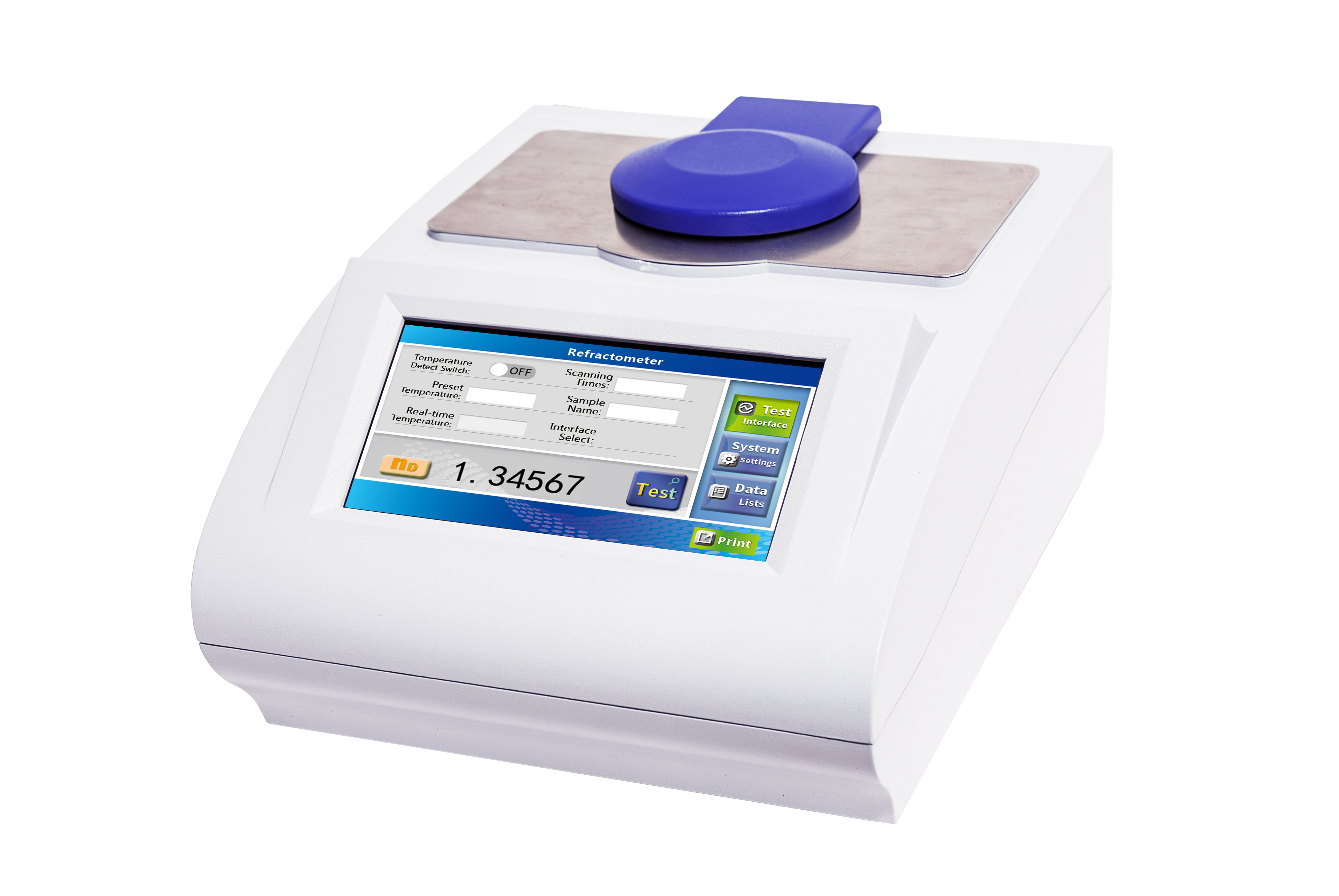

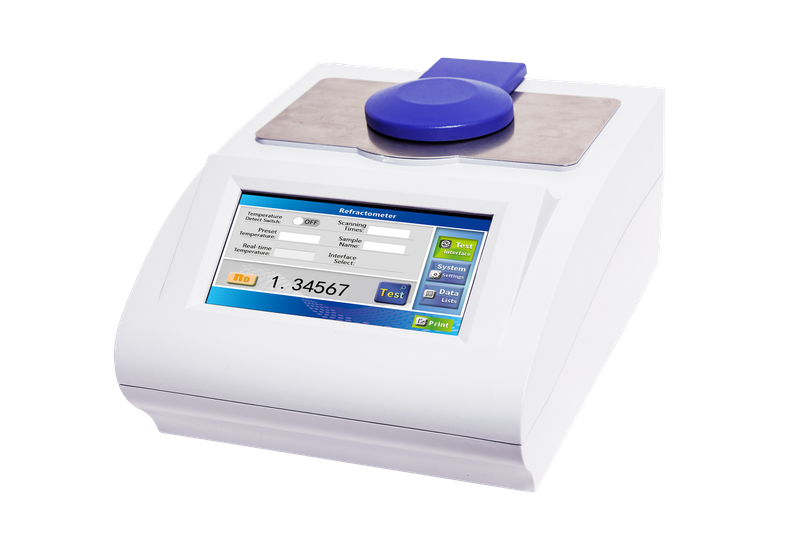

SGW -733 / SGW -731
NADE
1
CHINA
Product Description
• Full automatic measuring, high resolution CCD detection system.
• Temperature correction function to avoid human error.
• Have the function of temperature display, automatic correction and saving the date.
• LED light source that lasts over 100000 hours.
• Multiple measuring methods: F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose
concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks),
Honey water content, nD20 and user-defined formula.
• Temperature control, temperature automatic correction and saving the data. (SGW -733)
• Touch Screen.
Applications
• Food Industry (measurement of sugar content, oil purity, alcohol, and dairy products)
• Agriculture (assessment of fruit maturity and honey quality grading)
• Pharmaceutical Industry (quality control of chemical raw materials and cosmetic analysis)
Specifications
Parameters/Model | SGW-733 | SGW-731 |
Measuring range | Refractive index (nD): 1.30000-1.70000 Brix : 0-100% | |
Measuring Accuracy | Refractive index (nD): ±0.0002 Brix : ±0.1% | |
Resolution | Refractive index (nD): ±0.00001 Brix : ±0.01% | |
Temp. control mode | Peltier（Built-in） | / |
Temp. display range | 0-90℃ | / |
Temp. control range | 10-60℃ | / |
Temp. control accuracy | ±0.1℃ | / |
Prism | Hard glass | |
Date Storage | 1000 sets | |
Display | 7 inch color touch screen | |
Interface | RS232，USB，U Disk | |
Power supply | 220V±22V，50Hz±1 Hz，50w | |
Overall dimensions | 500mm×330mm×220mm | |
Weight (Gross) | 9 kg | |
