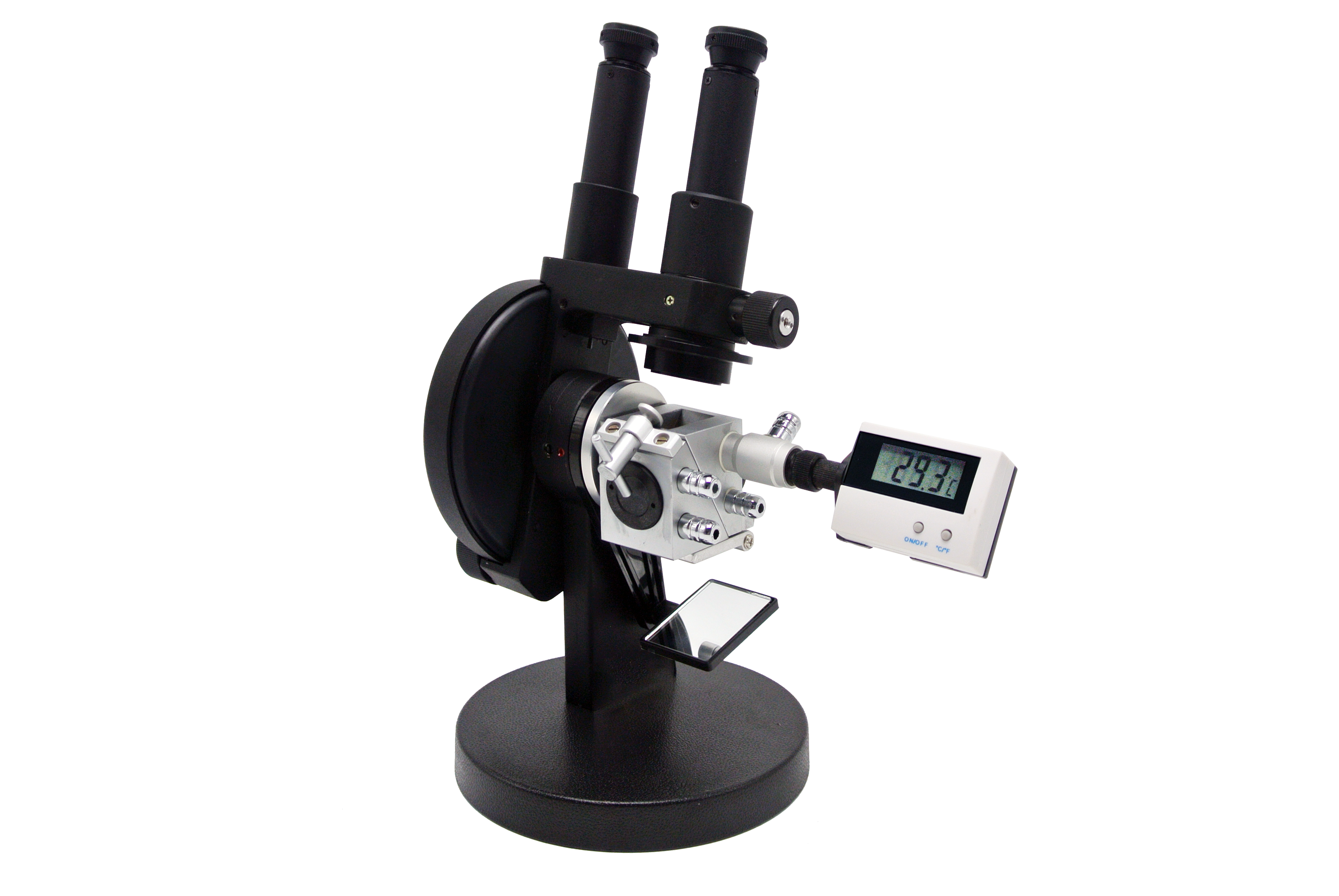

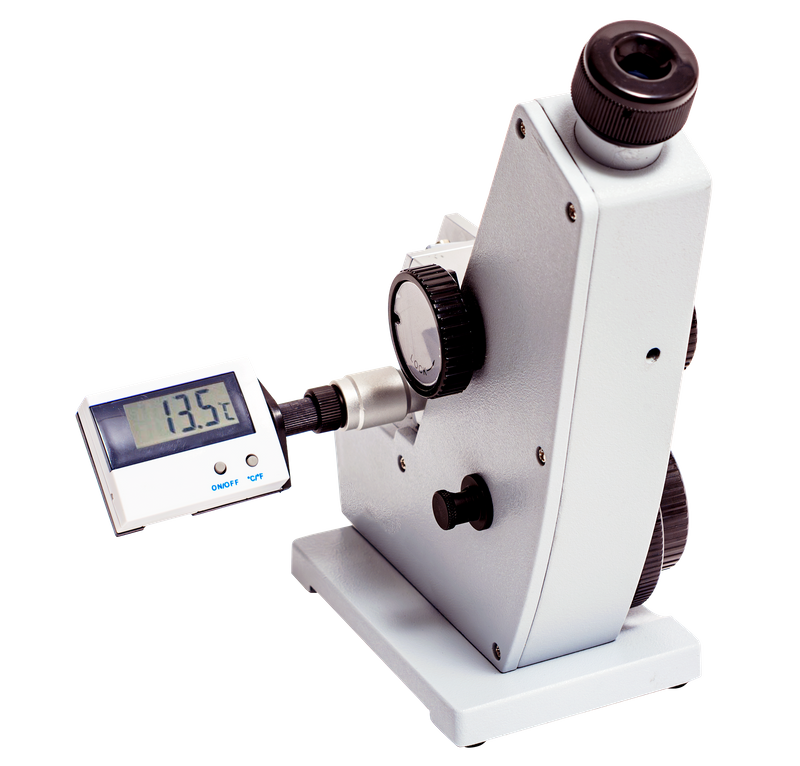

WYA-2W / WYA (2WAJ)
NADE
1
CHINA
Product Description
• Measurement of refractive index nD, average dispersion nF-nc of transparent or translucent liquid and solid substances, and mass fraction (Brix) of cane sugar solution.
• Widely used in the field of sugar, pharmaceutical, beverage, petroleum, food, chemical industries as well as research institutes and educational department.
• Prism is made of hard glass, abrasion resistance.
• Visual aim, optical index-plate reading.
• Easy and reliable.
Applications
• Food Industry (measurement of sugar content, oil purity, alcohol, and dairy products)
• Agriculture (assessment of fruit maturity and honey quality grading)
• Pharmaceutical Industry (quality control of chemical raw materials and cosmetic analysis)
Specifications
Parameters/Model | WYA (2WAJ) | WYA-2W |
Measuring range | Refractive index (nD): 1.3000-1.7000 Brix: 0-95% | Refractive index (nD): 1.3000-1.7000 Brix: 0-95% |
Accuracy(nD) | ±0.0002(Estimate Reading) | ±0.0003（Estimate Reading) |
Average dispersion indication | ±0.0005 | |
Temperature display | Digital thermometer | |
Observation mode | Monocular | Binocular |
Weight (Gross) | 3kg | 4kg |
Overall dimensions | 270mm×180mm×370mm | 240mm×200mm ×390mm |
