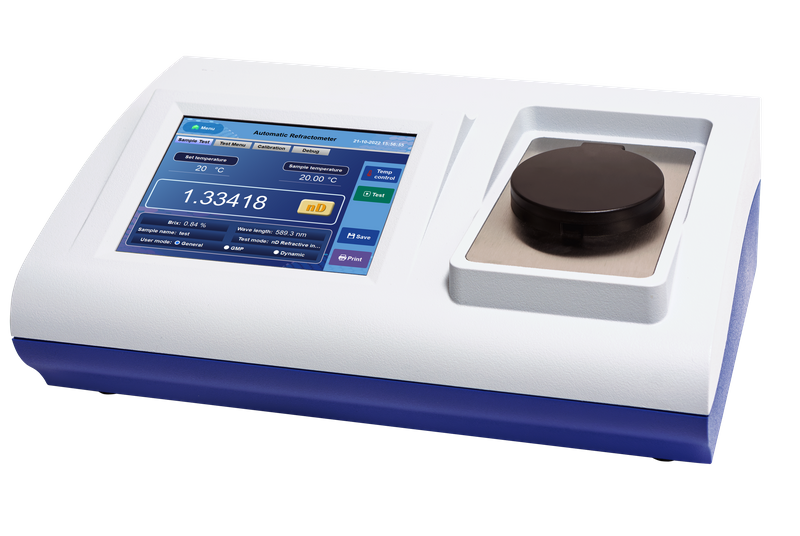

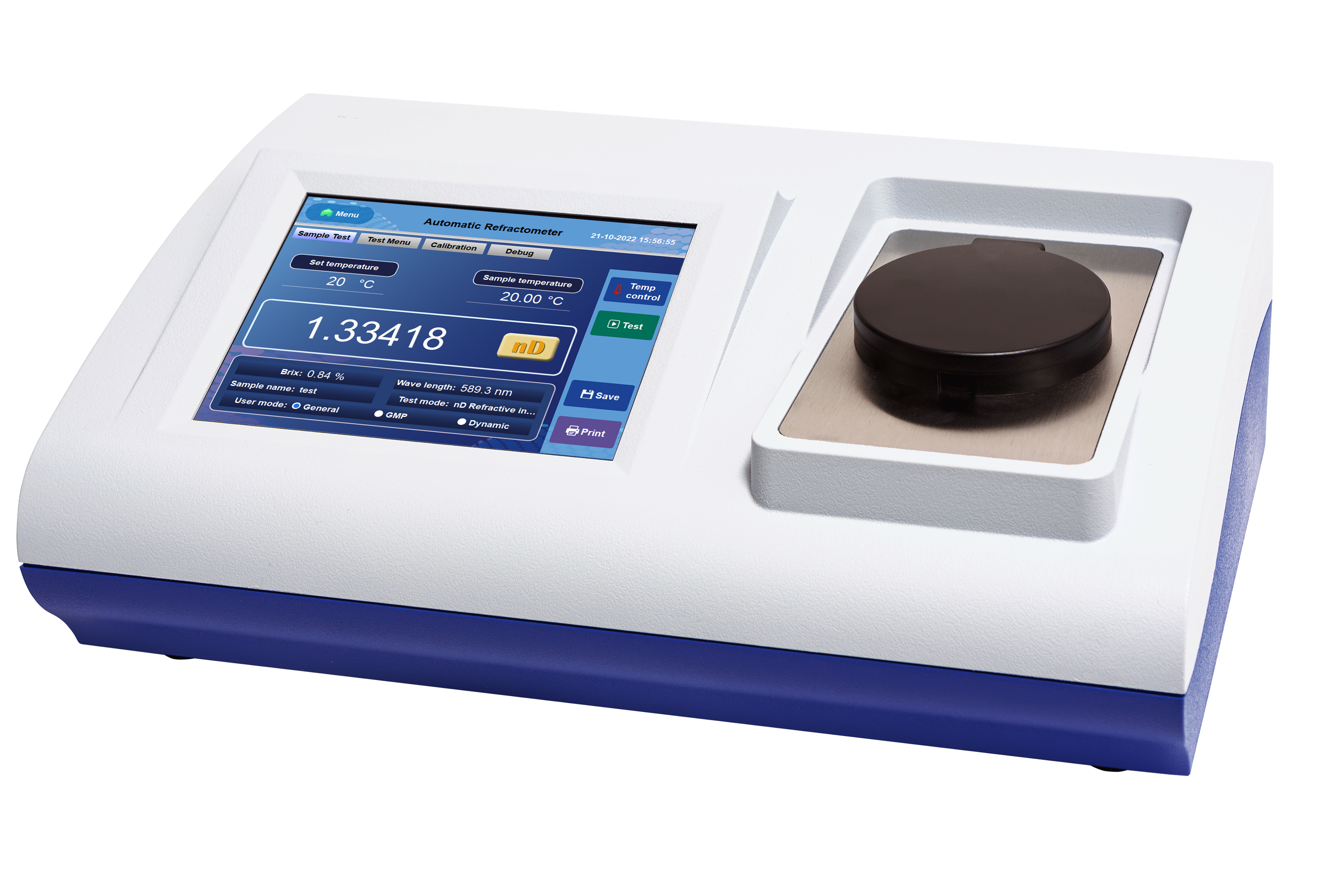

SGW -756 / SGW -753
NADE
1
CHINA
Product Description
• High resolution CCD detection system.
• Fast measuring speed, good repeatability, and wide temperature control range.
• Measuring the corrosion resistance, scratch resistance, easy cleaning, and durability of prism.
• Minimum sample amount is approximately 0.5ml, and the sample can be recycled.
• LED light source that lasts over 100000 hours.
• Multiple measuring methods: Fragrance refractive index, Vegetable oil refractive index, F42 fructose
corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid
content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined
formula.
• It meets graded management, provides scientific and user-friendly operation.
Applications
• Food Industry (measurement of sugar content, oil purity, alcohol, and dairy products)
• Agriculture (assessment of fruit maturity and honey quality grading)
• Pharmaceutical Industry (quality control of chemical raw materials and cosmetic analysis)
Specifications
Parameters/Model | SGW-756 | SGW-753 |
Measuring range | Refractive index (nD): 1.30000-1.70000 Brix : 0-100% | |
Measuring Accuracy | Refractive index (nD): ±0.0002 Brix : ±0.1% | |
Resolution | Refractive index (nD): ±0.00001 Brix : ±0.01% | |
Audit Trail | Optional | / |
Temp. control mode | Peltier（Built-in） | |
Temp. display range | 0-100℃ | |
Temp. control range | 5-85℃ | |
Temp. control accuracy | ±0.02℃ | |
Prism | Artificial sapphire | |
Operating system | Windows | / |
Display | 8 inch color touch screen | |
Date Storage | 16G | 10000 sets |
Interface | USB，Keyboard，Mouse，Ethernet， Universal Printer，Optional: WLAN | USB，U Disk |
Power supply | 100V~240V, 50/60Hz, 150W | |
Overall dimensions | 570mm×460mm×300mm | |
Weight (Gross) | 5 kg | |
