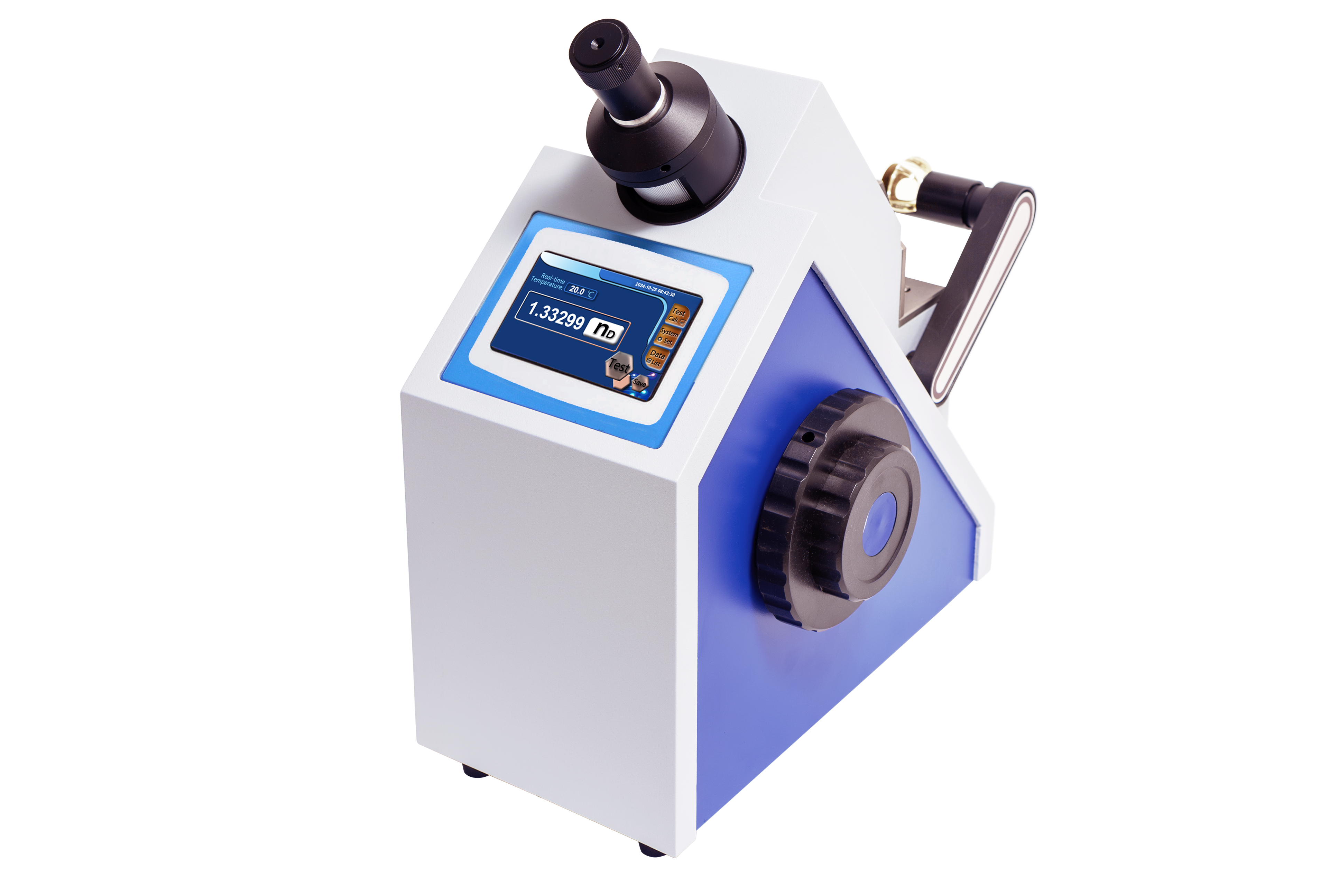

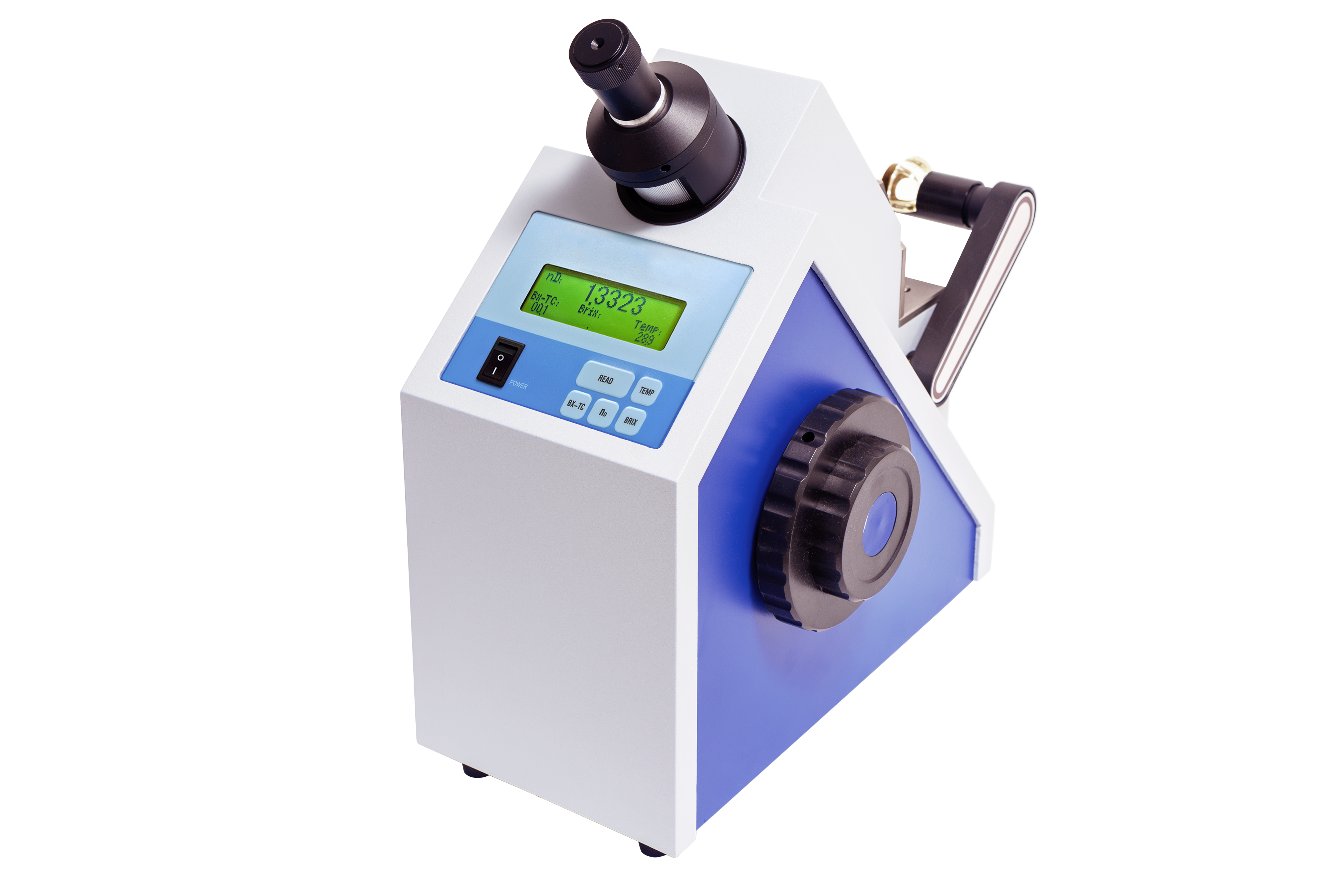

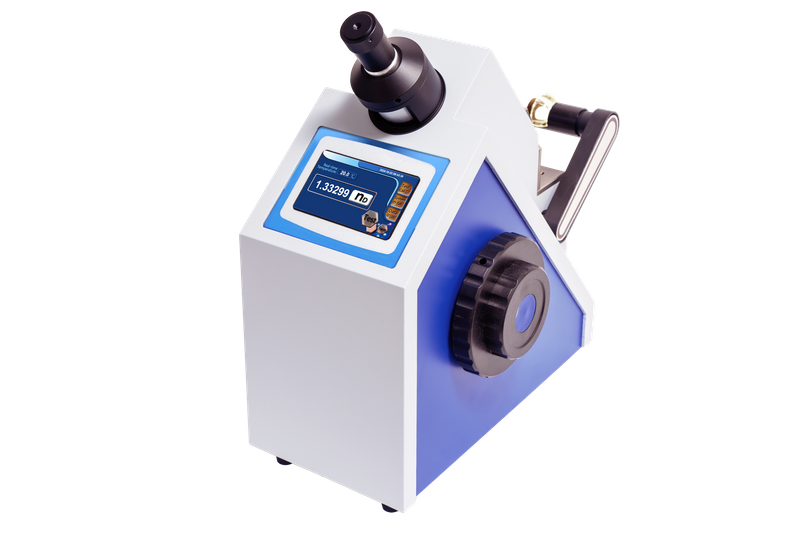

WYA-3S / WYA-2S
NADE
1
CHINA
Product Description
• Measurement of refractive index nD of transparent or translucent liquid and solid substances.
• Measurement of the Brix of sugar solution.
• Automatic correction of the effect of temperature on the Brix.
• Prism made of hard glass.
• It works with 589nm wavelength and uses LED as light source.(WYA-3S)
Applications
• Food Industry (measurement of sugar content, oil purity, alcohol, and dairy products)
• Agriculture (assessment of fruit maturity and honey quality grading)
• Pharmaceutical Industry (quality control of chemical raw materials and cosmetic analysis)
Specifications
Parameters/Model | WYA-3S | WYA-2S |
Measuring range | Refractive index (nD): 1.30000-1.72000 Brix: 0-100% | Refractive index (nD): 1.3000-1.7000 Brix: 0-100% |
Measuring Accuracy | Refractive index (nD): ±0.0002 Brix: ±0.1% | Refractive index (nD): ±0.0002 Brix: ±0.1% |
Resolution | Refractive index (nD): 0.00001 Brix: 0.01% | Refractive index (nD): 0.0001 Brix: 0.1% |
Measuring methods | 8 types | / |
Temp. display range (Min. 0.1℃) | -20-120℃ | 0-50℃ |
Display | Color touch screen | LCD |
Interface | RS232，USB | RS232 |
Date Storage | 500 sets | / |
Power supply | 220V±22V，50Hz±1Hz，30w | |
Overall dimensions | 370mm×240mm×470mm | |
Weight (Gross) | 10 kg | |
