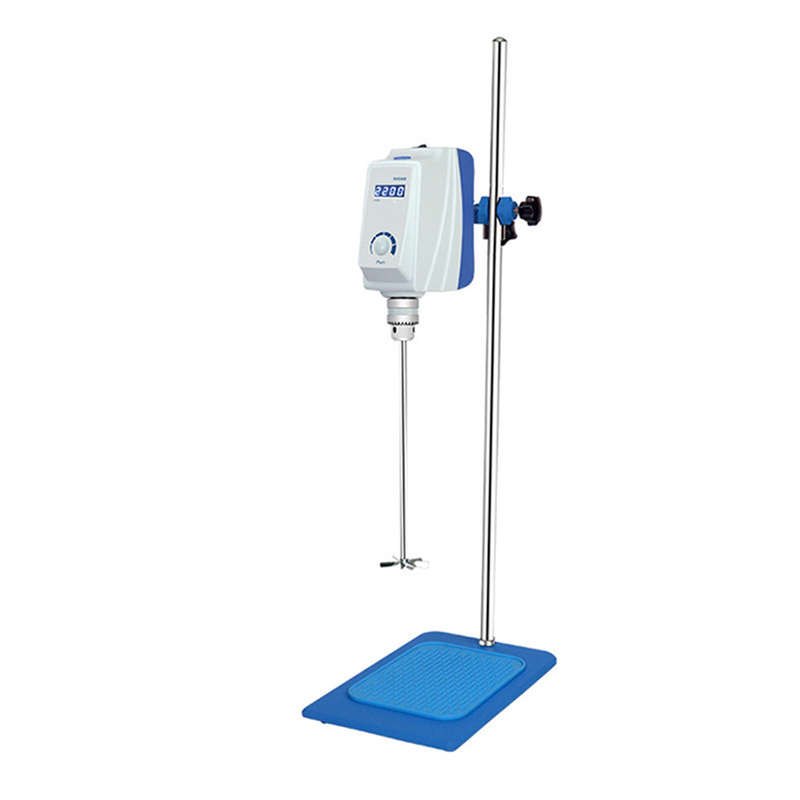

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

  • Paddle
  • 20 L
  • Chemicals, Medicine
  • 20 L
  • 30 - 2200 r.p.m
  • 20L
  • 2.6 KG
  • New
  • liquid
  • Liquid
  • China
  • 100-240VAC 50/60Hz
  • 186*83*220
  • 0.07 kW
  • 1 YEAR
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Provided
  • Not Available
  • 1 Year
  • Motor
  • 20L
  • 40
  • 60
  • 50
  • 10000
  • 30-2200
  • LED
  • ±1
  • Sound prompt, stop automatically
  • 0.5-10

Product Description

LED Overhead Stirrer Series

Product Description

Introductions:

The overhead mixers adopt LED digital display operating speed, making the body more safe and reliable, advanced technology, low-noise mechanical deceleration structure, small size, large output torque, suitable for scientific research, universities, chemical, pharmaceutical, medical units, etc.

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Feature

1. Speed range: 30-2200rpm, constant speed, high and low speed can be accurately controlled. The minimum operating speed is 30 rpm, which meets the requirements of lower speed. Digital feedback with rotational speed to ensure constant speed and torque of the mixer.

2. Performance: The use of maintenance-free DC brushless motor, continuous and stable operation for a long time, outstanding performance.

3. Safety protection: including overload protection and motor protection. When overload, short circuit and abnormal speed occur, the circuit will be automatically cut off and alarmed to ensure operational safety and laboratory safety.

4. Anti-sample overflow: smooth start, effectively preventing sample overflow.

5. Closed shell: The closed shell prevents liquid from splashing into the machine and corrodes the circuit, ensuring safe operation.

6. There is a stirring rod penetrating hole, the stirring rod is easy to replace, no need to move the stirring head up and down, just easily adjust the height of the stirring paddle.

7. Use stainless steel chuck, convenient and quick operation, lock function, prevent the stirring rod from loosening, high axis degree.

8. The torque can be adjusted automatically according to the change of sample viscosity, and the speed can be fine-tuned according to the needs during operation, which is convenient for experimental operation.

9. Various stirring paddles, brackets are optional.

Specification

Model

RWD50E

Stirring amount (L)

20L

Torque (N.cm)

40

Motor input power (W)

60

Motor output power (W)

50

Weight (kg)

2.6

Power W

70

Viscosity (Pas)

10000

Speed range (rpm)

30-2200

Speed display

LED

Speed display resolution (rpm)

±1

Overload protection

Sound prompt, stop automatically

Motor protection

Sound prompt, stop automatically

Drill chuck clamping diameter range (mm)

0.5-10

Dimensions mm (D*W*H)

186*83*220

Protection method

IP42

Allowable ambient temperature ()

5-40

Allowable ambient humidity (%)

80

RS232

NO

Voltage VAC

100-240

Frequency Hz

50/60

Chuck

Stainless steel chuck

Time setting

NO

Motor type

Brushless DC motor

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

The following are optional stirring paddles.

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,. Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Packaging & Shipping

Our Packaging Details:

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Our Shipping

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Company Information

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

Nade RWD50E Electric LED Overhead Stirrer suitable for scientific research, universities, chemical, pharmaceutical,.

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
