OS-T40-Plus 30L Overhead Stirrer

Max.stirring quantity[H2O]: 30L
Speed range: 50~2200rpm
Time settings range: 0min~99h59min
Viscosity max.: 10000mPa.s
Availability:
  • OS-T40-Plus

  • NADE

  • 100V-240V; 50Hz/60Hz

  • 1

  • OEM

  • 1 year

  • China

Product Description

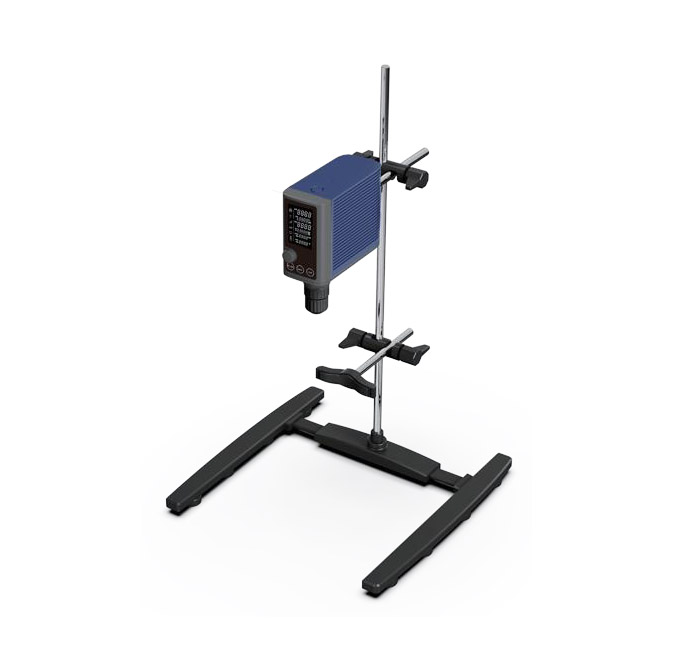

OS-T-Plus Series

OS-T40-Plus

OS-T60-Plus

OS-T400-Plus

LCD Digital Timed Overhead Stirrer

Features

Timing function: Timing range 1min-99h59min.

Thermometer function: There is an external temperature sensor inlet that plugs into the instrument and displays the sample temperature.

Safety lock to prevent accidental change of operation.

Paddle "through-the-top" design for easy container replacement.

LCD display of speed, torque, timing, temperature, etc.

Constant speed, automatically adjusts the torque according to changes in sample viscosity and maintains the set speed.

The speed can be switched forward and reverse.

Buzzer: When the machine malfunctions, or the timer function counts down to the end of the buzzer will emit a "drip drip drip" sound.

Without external transformer, the machine is safer to use.

Calibration can be achieved for torque and temperature of the sample.


Applications

Field of chemical synthesis, field of material science.

Food analysis field: homogenisation for sample pre-treatment.

Biopharmaceuticals: pills, tablets, raw material mixing, colloidal gold preparation, etc.

Food processing: butter, ketchup, eggs, jaggery, etc.

Cosmetics: creams, ointments, shampoos, conditioners, etc.

Building materials: earth, mortar, clay, stone dust, etc.




Specification

Model

OS-T40-Plus

OS-T60-Plus

OS-T400-Plus

Max stirring quantity[H₂O]

30L

50L

100L

Speed range

50-2200rpm

50-2200rpm

A gear: 10-400 rpm;

B gear: 50-2000 rpm

Time settings range

0min-99h59min

0min-99h59min

0min-99h59min

Max. torque

40N·cm

60N·cm

400N·cm

Viscosity max.

10000mPa·s

50000mPa·s

150000mPa·s

Motor type

Brushless DC motor

Brushless DC motor

Brushless DC motor

Speed display

LCD

LCD

LCD

Torque display

LCD

LCD

LCD

Forward and reverse rotation

Forward, reverse,

intermittent mixing

Forward, reverse,

intermittent mixing

-

Temperature display accuracy

0.1℃

0.1℃

0.1℃

External temperature sensor

0-100℃

0-100℃

0-100℃

Overload protection display

LCD

LCD

LCD

Chuck clamp range diameter

0.5-10mm

0.5-10mm

0.5-10mm

Data interface

RS485, Type-C, USB

RS485, Type-C, USB

RS485, Type-C, USB

Voltage/Frequency

100-240V, 50/60 Hz

100-240V, 50/60 Hz

100-240V, 50/60 Hz

Motor input/output power

60W/50W

120W/100W

180W/170W

Power

70W

130W

300W

Dimension[W×H×D]

90×240×227mm

90×240×227mm

101×270×264mm

Weight

3.5Kg

3.5Kg

5.2Kg

Permissible ambient temperature and humidity

5-40℃, 80%RH

5-40℃, 80%RH

5-40℃, 80%RH
