Paddle
60 L
Chemicals, Medicine
60 L
30 - 2200 r.p.m
60L
3 KG
New
Liquid
China
100-240VAC 50/60Hz
186*83*220
0.16 kW
1 year
Easy to Operate
Retail, laboratory
Video technical support, Online support
None
None
Ordinary Product
Not Available
Not Available
1 Year
Motor
60L
80
160
150
80000
30-2200
LCD
Display failure and stop
0.5-10
IP42
Product Description

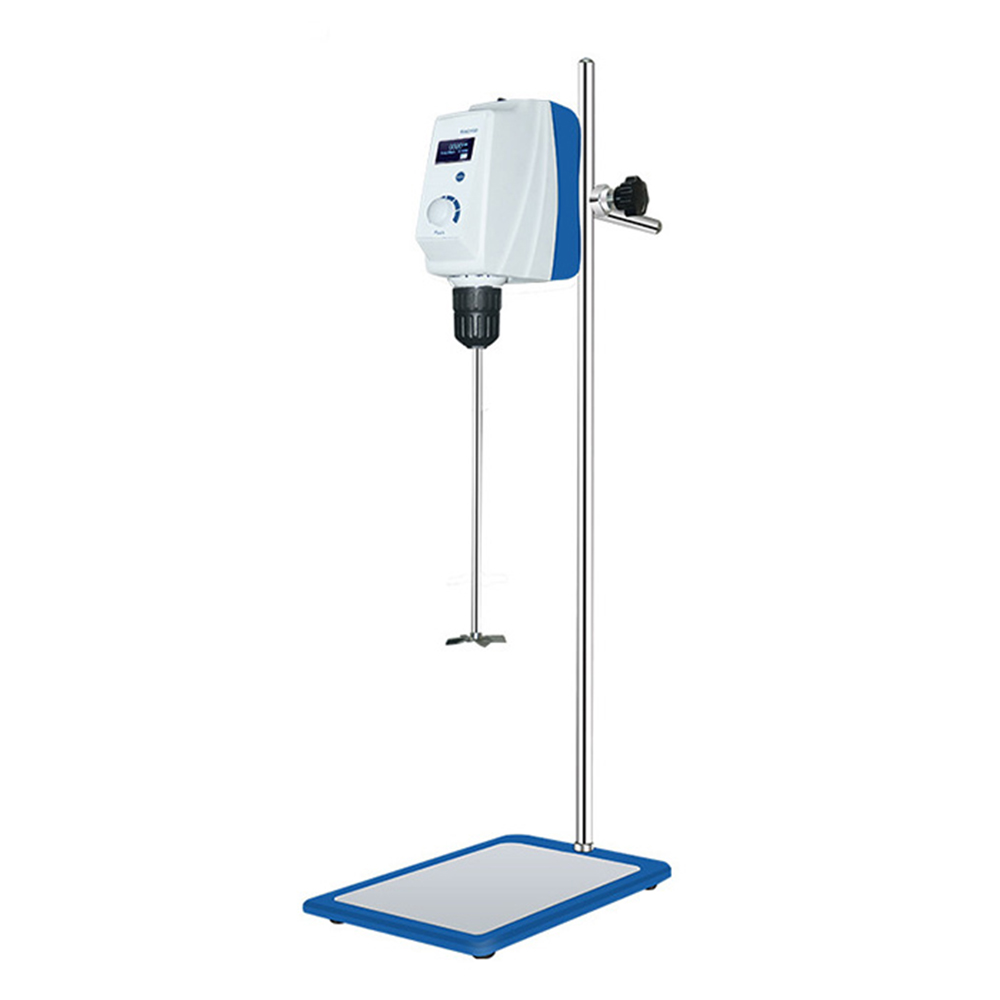

LCD Overhead Stirrer Series
Introduction:
The liquid crystal display electric mixer adopts a numerically controlled stepless speed regulator, which is high-speed and convenient, and can digitally display the running speed, making the body more safe and reliable, advanced technology, low-noise mechanical deceleration structure, small size, large output torque, suitable for scientific research, colleges and universities Schools, chemical industry, pharmaceuticals, medical units and other purposes.
1. Speed range: 30-2200rpm, constant speed, high and low speed can be accurately controlled. The minimum operating speed is 30 rpm, which meets the requirements of lower speed. Digital feedback with rotational speed to ensure the constant speed and torque of the mixer.
2. Rotation speed and time have coarse and fine adjustments. The coarse adjustment is fast to the set stirring speed, and the fine adjustment can be accurate to the stirring speed. The time and working time of the equipment can be fine-tuned in the working state.
3. Performance: The use of maintenance-free brushless DC brushless motor, continuous and stable operation for a long time, outstanding performance.
4. Safety protection: including overload protection and motor protection. When overload, short circuit and abnormal speed occur, the circuit will be automatically cut off and alarmed to ensure operational safety and laboratory safety.
5. Anti-sample overflow: smooth start, effectively preventing sample overflow.
6. Closed shell: The closed shell prevents liquid from splashing into the machine and corrodes the circuit, ensuring safe operation.
7. There is a stirring rod penetrating hole, the stirring rod is easy to replace, without moving the stirring head up and down, just easily adjust the height of the stirring paddle.
8. Abundant extended applications: It can be connected to a PC through the RS232 data transmission port to control the instrument and record the speed, torque data, etc.
9. Imported self-locking chuck is adopted, which is convenient and quick to operate and has a locking function to prevent the stirring rod from loosening. High axis.
10. LCD displays the set value and actual value of the speed, and can monitor the speed in real time.
11. The torque can be automatically adjusted according to the viscosity of the sample, and the speed can be fine-tuned according to the needs during operation, which is convenient for experimental operation.
12. Various stirring paddles, brackets are optional.
| Model | RWD150 |
| Maximum mixing volume | 60L |
| Motor input power (W) | 160 |
| Motor output power (W) | 150 |
| Weight (kg) | 3 |
| Power (W) | 160 |
| Range of rotation | 30-2200(rpm) |
| Timing range | 1~9999min |
| Speed display | LCD |
| Mixing time setting | Yes |
| Speed display resolution (rpm) | ±1 |
| Speed memory | Yes |
| Speed mode | Coarse and fine adjustment |
| Maximum torque(N.cm) | 80 |
| Maximum viscosity (Pas) | 80000 |
| Overload protection | Display failure and stop |
| Motor protection | Display failure and stop |
| Drill chuck clamping diameter range (mm) | 0.5-10 |
| 186*83*220 | |
| Protection method | IP42 |
| Allowable ambient temperature (C°) | 5-40 |
| Permissible environmental humidity (%) | 80 |
| RS232 interface | Yes |
| Voltage (VAC) | 100-240 |
| Frequency (Hz) | 50/60 |
| Stirring paddle fixing method | Self-locking chuck |
| Security | Chuck protective cover, safety buckle, non-slip mat |
The following are optional stirring paddles
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
