Paddle
20 L
Chemicals, Food, Medicine
20 L
30 - 2000 r.p.m
20L
7.6 KG
New
Liquid
China
NADE
100V~240V, 100V~240V
215*310*600
0.16 kW
1 Year
Online support
Low Noise Level
Laboratory
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
Motor
30-2000 rpm
20,000 ml (20L)
110W
Brushless DC Motor
1~6000min
50Hz/60Hz
OLED
100000 mPa.s
13.1 N.cm
Product Description

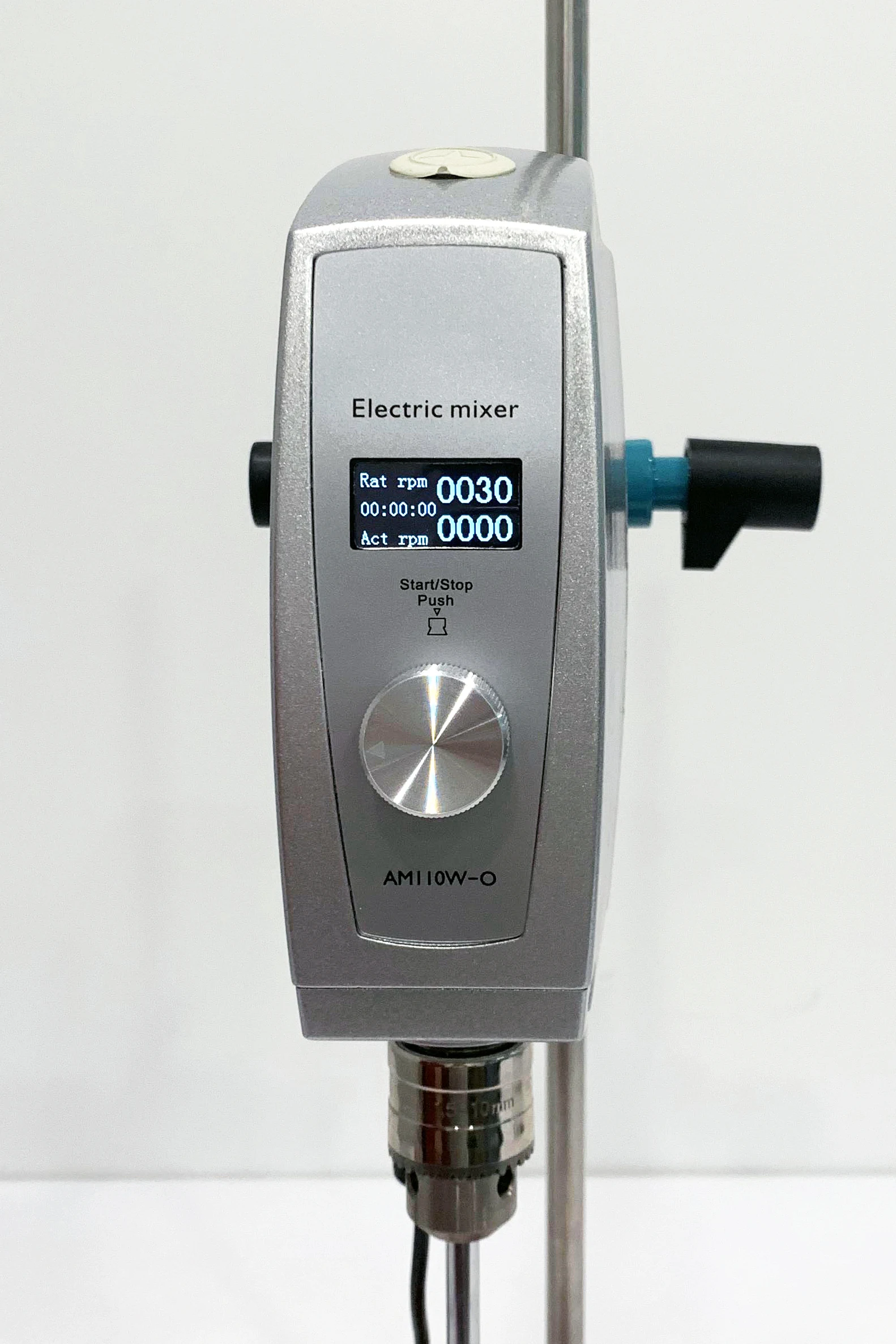

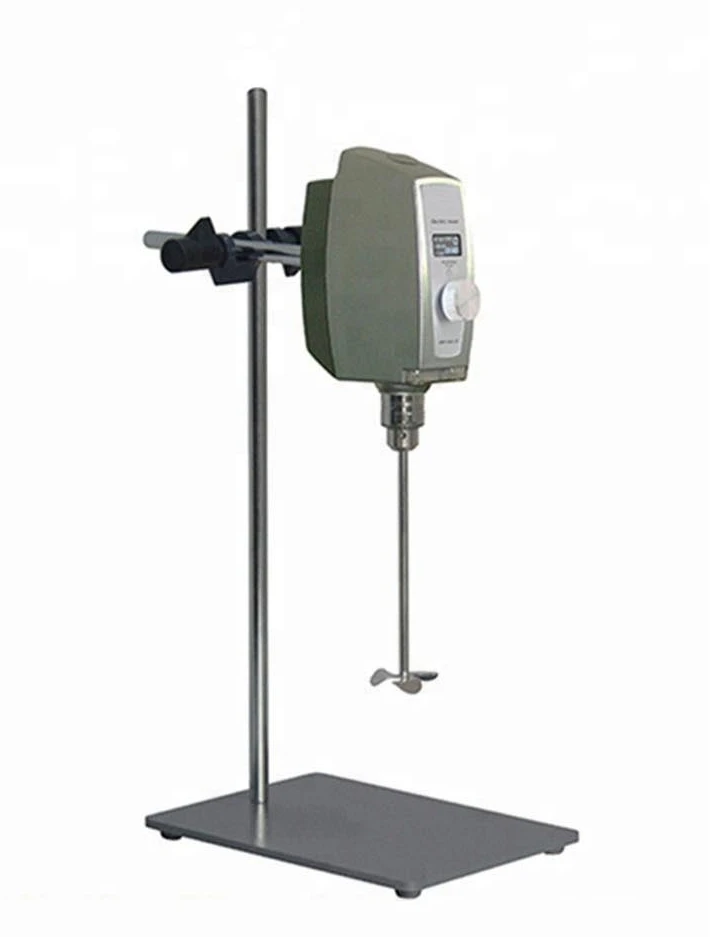

NADE High-power brushless DC motor overhead stirrer for mixing low-to-medium, high-viscosity liquids in laboratory
This high-power brushless mixer is driven by a brushless DC motor and is suitable for mixing low-to-medium, high-viscosity liquids in the laboratory. The machine has low speed operation, high torque output, low noise, and no maintenance. The stirring speed is controlled by the microprocessor. It can instantly and effectively compensate the speed change caused by the load change and power supply voltage fluctuation, and the constant speed is reliable. Built-in automatic overload protection device to ensure the safety of continuous high-load continuous operation for a long time. The stirring speed is adjusted steplessly to meet the stirring speed at any time in the experiment.The digital display shows the actual output stirring speed and speed increase and decrease to ensure the intuitive collection of experimental data.Running timing control ensures that the time of the experiment is effectively controlled. The stable stirring speed of the machine is suitable for stirring high viscosity media and slurry.
 | 1. Brushless Direct Current Motor. 2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high. 3. Suitable for a wide range of material with different stirring paddle and different speed. 4. Stable and constant operation. 5. Overload protection. 6. Long time running. 7. High effective in speed control. 8. Easy operate and easy clean easy maintenance. 9. Timing. speed setting memoried. |
| Model | AM110W-O |
| Processing capacity (H2O) | 20 L |
| Input power | 162 W |
| Output power | 110 W |
| Rated torque | 13.1 N.cm |
| Peak torque | 39 N.cm |
| Rated voltage | AC 100~240 V |
| Rated frequency | 50\60 Hz |
| Rotary clamp head range | Φ2~10 mm |
| Stirrer configuration | 4 blade paddle |
| Brushless DC Motor | |
| Work mode | S1 (Continuous) |
| OLED | |
| Operation control method | Combined control knob |
| Speed adjustment range | 30~2000 rpm |
| Speed control type | Stepless |
| Timing control range | 1~6000 min |
| Speed dynamic detection function | Yes |
| Motor temperature dynamic detection function | Yes |
| Speed memory function | Yes |
| Overload protection | Yes |
| Stir bar fixing method | Quick install chuck |
| Treatment viscosity | 100000 mPa.s |
| Allowable ambient temperature | Not more than 40 ℃ |
| Allowable relative humidity | Not more than 80 % |
| Protection level | IP 40 |
| Machine size | 215×310×600 mm |
| Weight | 7.6 kg |

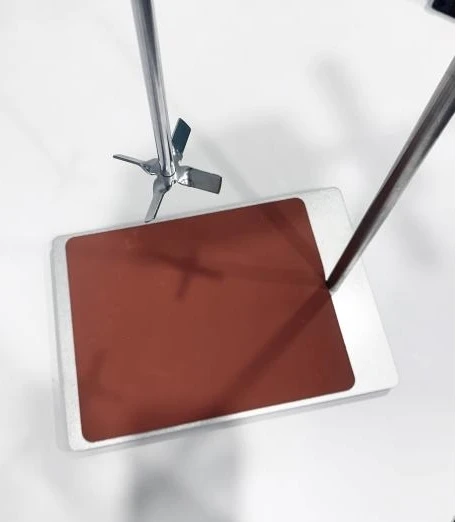

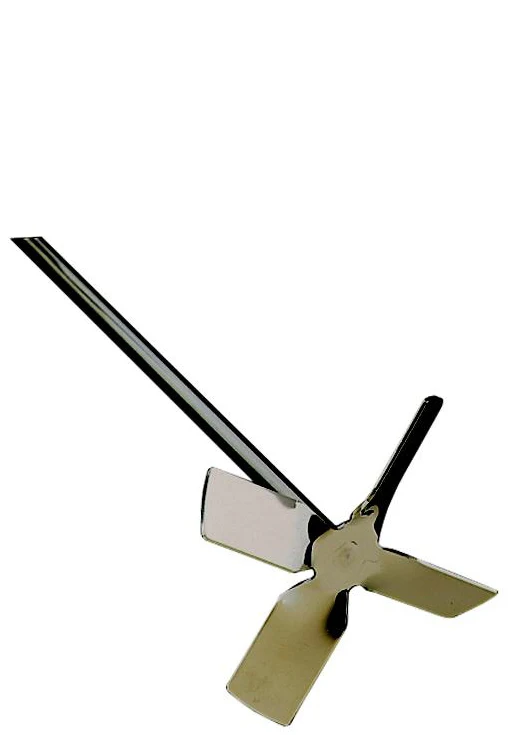

Standard paddle shape is 4 blade paddle.
User can equipment different shapes, available shapes are:

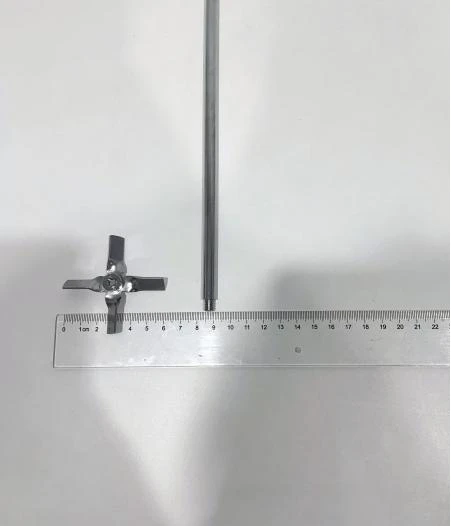

Eg. AM110W-O with the standard 4 blade paddle below. (Diameter 6cm, rod length 35cm, rod diameter 8mm. SS316L material)
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
