Paddle
60 L
Chemicals, Medicine
60 L
30 - 2200 r.p.m
60L
3 KG
New
Liquid
China
100-240VAC 50/60Hz
186*83*220
0.16 kW
1 year
Easy to Operate
Retail, laboratory
Video technical support, Online support
None
None
Ordinary Product
Not Available
Not Available
1 Year
Motor
60L
80
160
150
80000
30-2200
LED
±1
Sound prompt, stop automatically
0.5-10
Product Description
LED Overhead Stirrer Series
Introduction:
The overhead mixers adopt LED digital display operating speed, making the body more safe and reliable, advanced technology, low-noise mechanical deceleration structure, small size, large output torque, suitable for scientific research, universities, chemical, pharmaceutical, medical units, etc.
1. Speed range: 30-2200rpm, constant speed, high and low speed can be accurately controlled. The minimum operating speed is 30 rpm, which meets the requirements of lower speed. Digital feedback with rotational speed to ensure constant speed and torque of the mixer.
2. Performance: The use of maintenance-free DC brushless motor, continuous and stable operation for a long time, outstanding performance.
3. Safety protection: including overload protection and motor protection. When overload, short circuit and abnormal speed occur, the circuit will be automatically cut off and alarmed to ensure operational safety and laboratory safety.
4. Anti-sample overflow: smooth start, effectively preventing sample overflow.
5. Closed shell: The closed shell prevents liquid from splashing into the machine and corrodes the circuit, ensuring safe operation.
6. There is a stirring rod penetrating hole, the stirring rod is easy to replace, no need to move the stirring head up and down, just easily adjust the height of the stirring paddle.
7. Use stainless steel chuck, convenient and quick operation, lock function, prevent the stirring rod from loosening, high axis degree.
8. The torque can be adjusted automatically according to the change of sample viscosity, and the speed can be fine-tuned according to the needs during operation, which is convenient for experimental operation.
Various stirring paddles, brackets are optional.
| Model | RWD150E |
| Stirring amount (L) | 60L |
| Torque (N.cm) | |
| Motor input power (W) | 160 |
| Motor output power (W) | 150 |
| Weight (kg) | 3 |
| Power W | 160 |
| Viscosity (Pas) | 80000 |
| Speed range (rpm) | 30-2200 |
| Speed display | LED |
| Speed display resolution (rpm) | ±1 |
| Overload protection | Sound prompt, stop automatically |
| Motor protection | Sound prompt, stop automatically |
| Drill chuck clamping diameter range (mm) | 0.5-10 |
| Dimensions mm (D*W*H) | 186*83*220 |
| Protection method | IP42 |
| Allowable ambient temperature (C°) | 5-40 |
| Allowable ambient humidity (%) | 80 |
| RS232 | NO |
| Voltage VAC | 100-240 |
| Frequency Hz | 50/60 |
| Chuck | Stainless steel chuck |
| Time setting | NO |
| Motor type | Brushless DC motor |

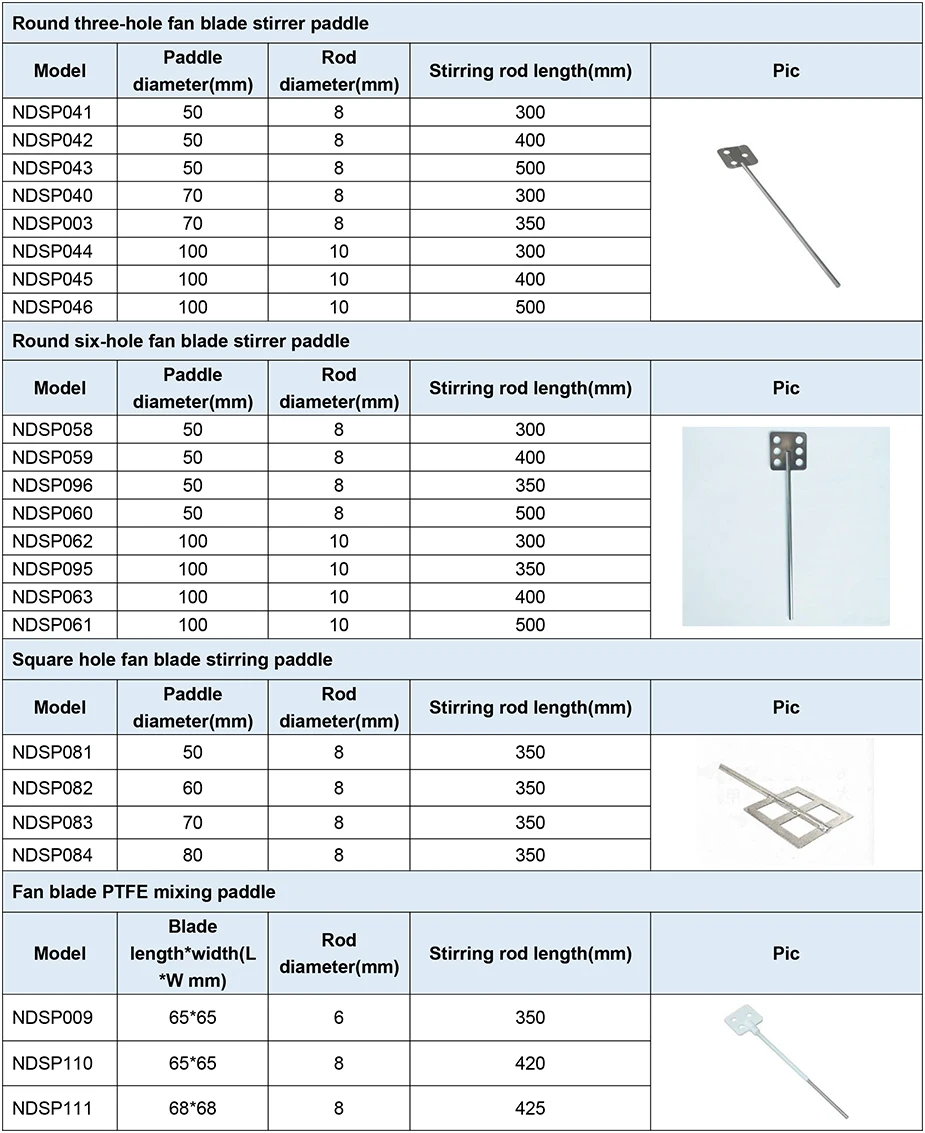

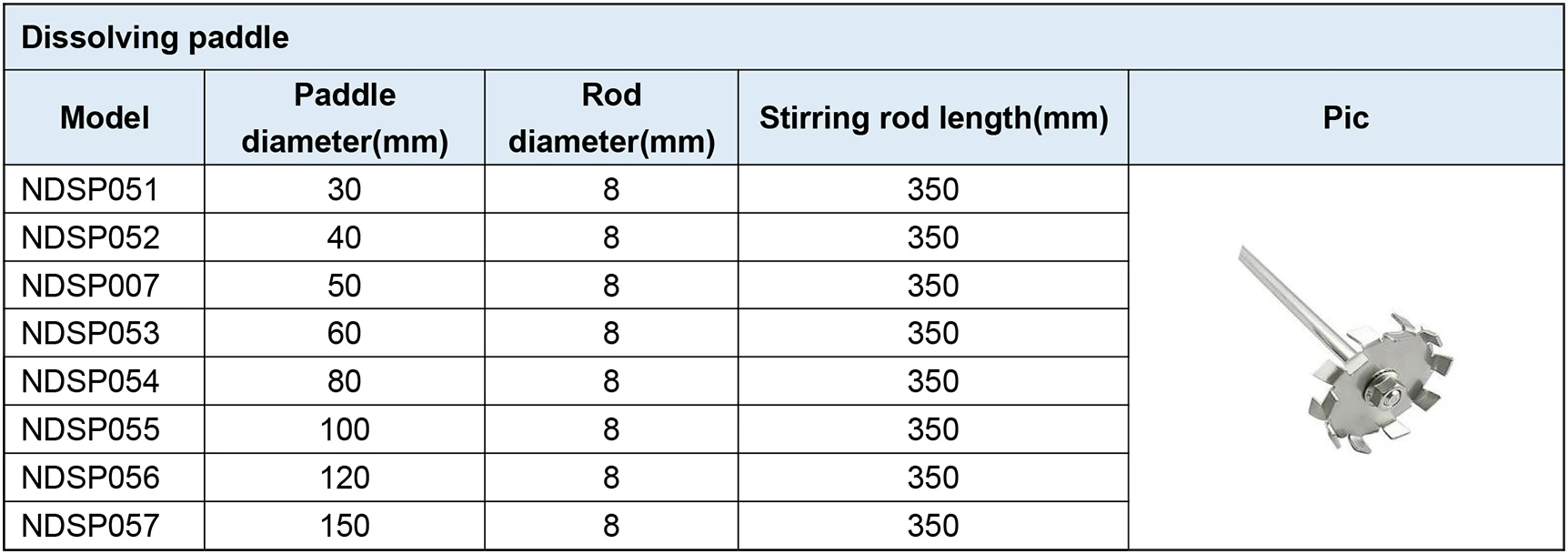

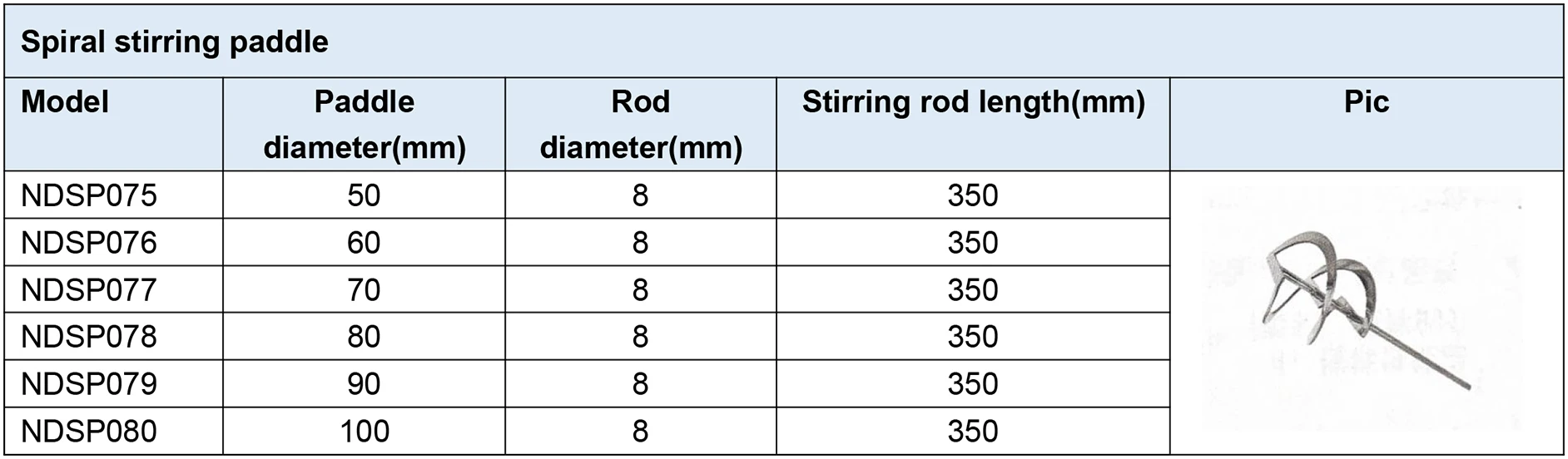

The following are optional stirring paddles.
