NADE 70L Digital Electric Overhead Stirrer OS70-Pro

  • Paddle
  • 70 L
  • Chemicals, Medicine
  • 70 L
  • 70L
  • 3.2 KG
  • New
  • Cosmetic
  • Liquid with Suspended Solids, laboratory
  • no
  • China
  • NADE
  • 100-240V
  • 83*220*186mm
  • ISO CE
  • 0.16 kW
  • 1 Year
  • Online support, No overseas service provided
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Motor
  • Brushless DC motor
  • 100000mPaS
  • 50~1100rpm
  • ±10rpm
  • 70L at max
  • LCD
  • IP21
  • 0-99h59min

Product Description

Introduction

Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemicalanalysis,petrochemical industries, etc.

Features

1.High reliability and outstanding performance
2.LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of ±10 rpm
3.Brushless DC motor for long life, maintenance free and explosion proof
4.Torque trend display for real-time information on viscosity changes
5.Safety circuits allow for safe stop function in anti-stall or overload conditions
6.Smooth operation prevents accidental spillage and splashing
7.Provides a constant speed even with changes in viscosities of the sample
8.Remote function provide PC control and data transmission

Specification
OS20-Pro
OS40-Pro
OS70-Pro
Max. stirring quantity(H2O)
20L
40L
70L
Motor type
Brushless DC motor
Brushless DC motor
40L
Motor rating input
60W
120W
180W
Motor rating output
50W
100W
160W
Voltage
100~220V, 50/60Hz
100~220V, 50/60Hz
100~220V, 50/60Hz
Power
70W
130W
200W
Speed range
50~2200rpm
50~2200rpm
50~1100rpm
Speed display accuracy
±3rpm
±3rpm
±10rpm
Speed display
LCD
LCD
LCD
Torque display
LCD
LCD
LCD
Overload protection display
LCD
LCD
LCD
Max. torque
40Ncm
60Ncm
300Ncm
Viscosity max.
10000mPas
50000mPas
100000mPas
Chuck range diameter
0.5~10mm
0.5~10mm
0.5~10mm
Dimension[W x H x D]
83*220*186cm
83*220*186cm
83*220*186cm
Weight
2.8kg
2.8kg
3.2kg
Permissible ambient temperature and humidity
5~40℃, 80%
5~40℃, 80%
5~40℃, 80%
Data connector
RS232
RS232
RS232

Ordering information of full set:
Motor+all necessary clamp+rod+plate+1 pc of paddle

Accessories

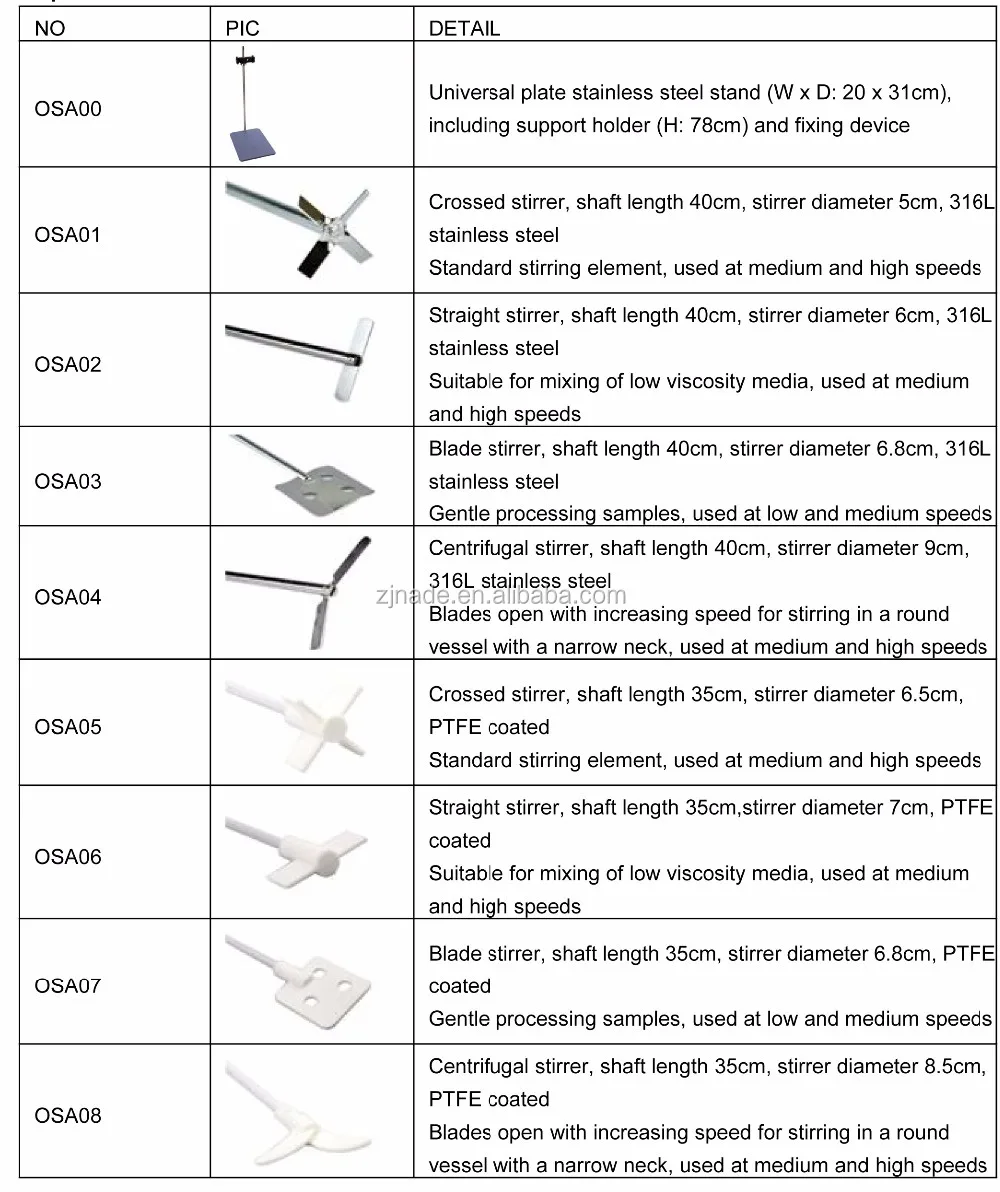

There are different paddle shapes suitable for OS Series, please choose from below sheet.
