OS10-mini
NADE
100-240V, 50/60Hz
1
1 year
China
Product Description
OS10-mini
Mini Overhead Stirrer (Analog style)
Mini overhead Stirrer strong stirring force, suitable for different viscosity samples.
Mainly used in chemical synthesis, drug synthesis, physical and chemical analysis, chemical research and development, food and beverage, food and drug testing, beauty industry, handmade, cosmetics, dyes, paint, glue adhesives, plastics, polymers and other fields of dissolution, dispersion, emulsification and homogenization.
Features
Specifications
Model | OS10L-mini | OS10-Pro |
Max. stirring quantity[H₂O] | 10L | 10L |

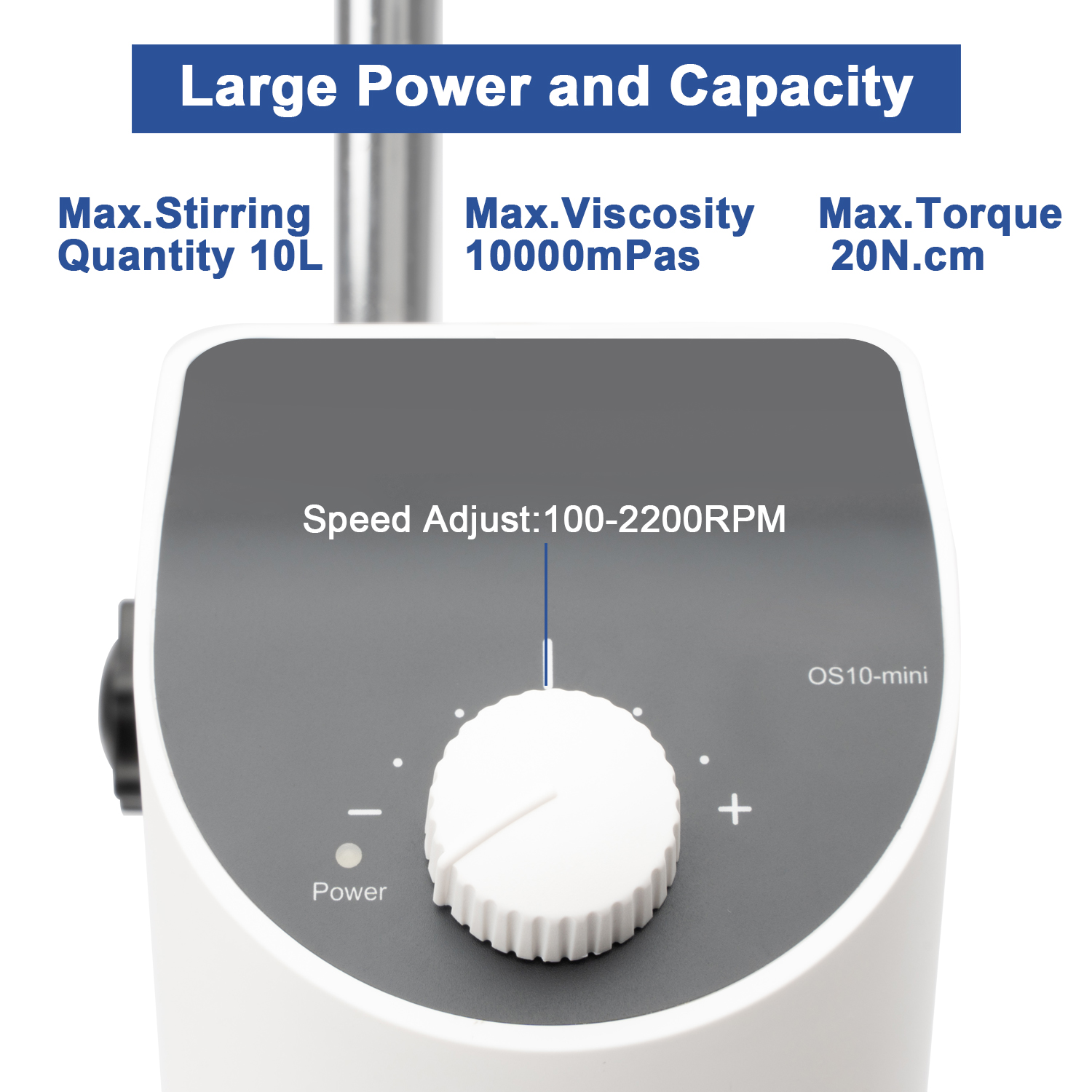

Speed range[RPM] | 100-2500 | 200-2500 |
Speed display | Scale | OLED |
Speed display resolution[RPM] | Scale | ±1 |
Speed increase/decrease[RPM] | Scale | 50 |
Viscosity max[mPa] | 10000 | 10000 |

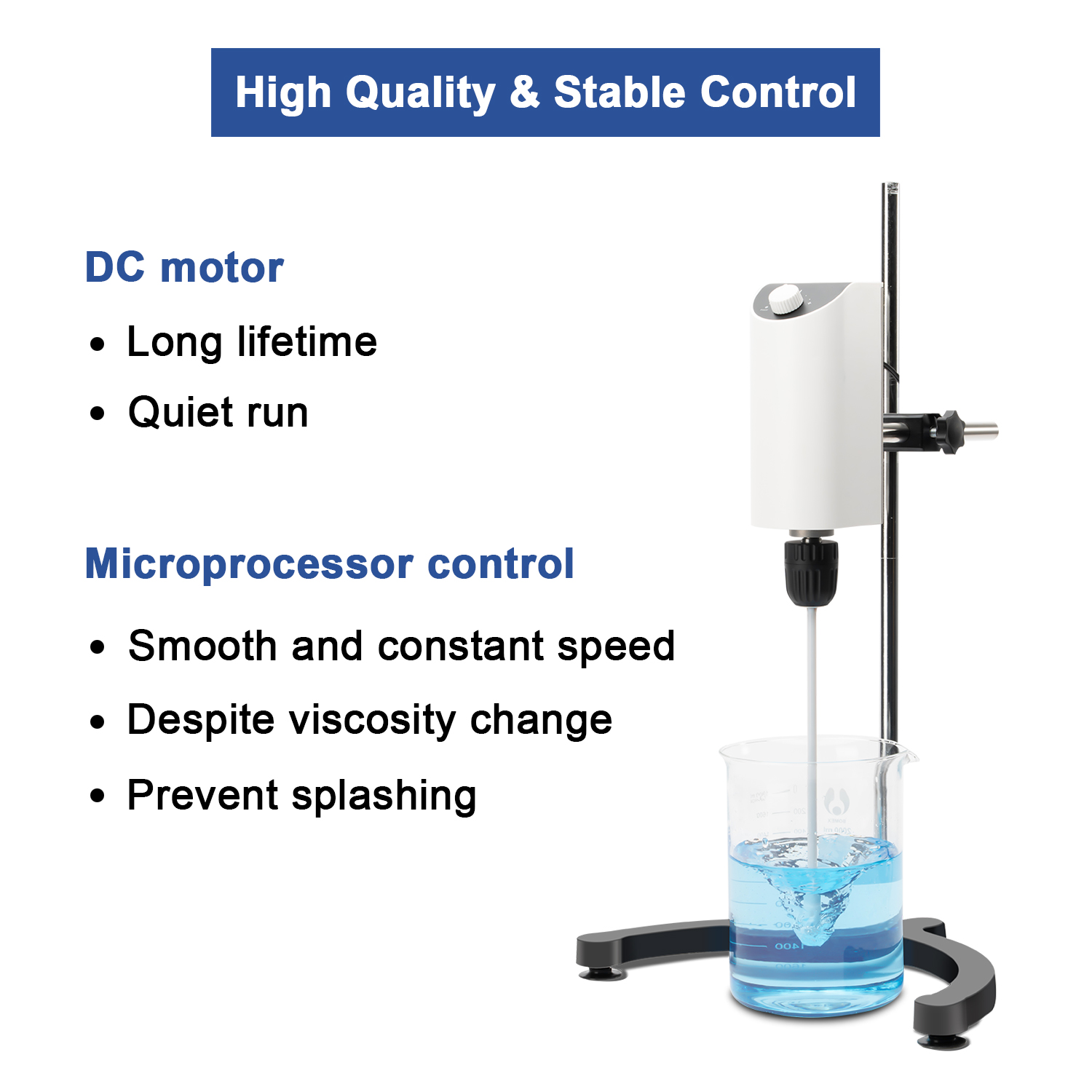

Motor type | Dc brush motor | Dc brush motor |
Motor torque | 20N.cm | 20N.cm |

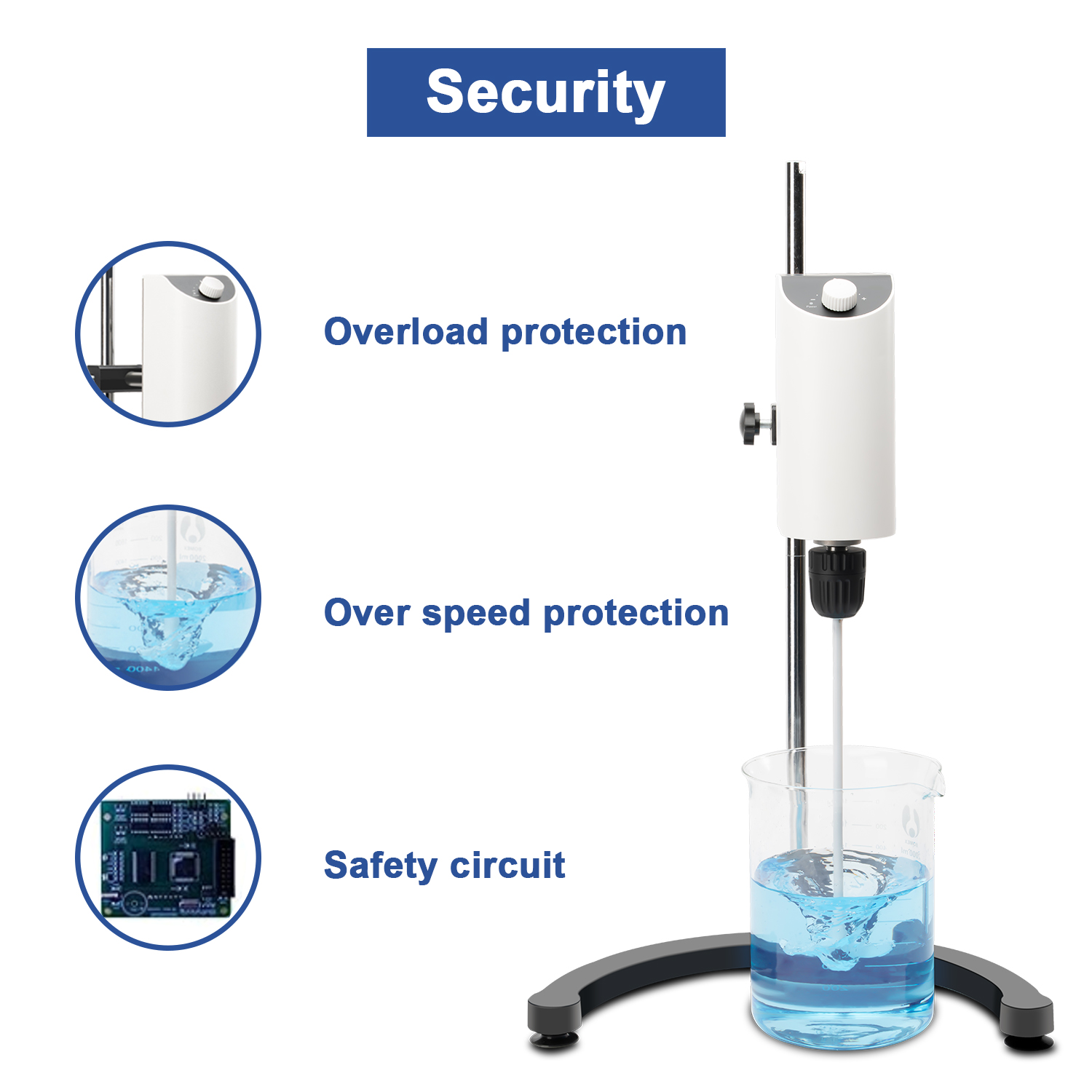

Overload protection | Automatic stop | Automatic stop |
Chuck clamp range diameter[mm] | 0.5-10 | 0.5-10 |
Protection class | IP21 | IP21 |
Voltage,Frequency | 100-240V, 50/60Hz | 100-240V, 50/60Hz |
Input power[W] | 45 | 45 |
Output power[W] | 35 | 35 |
Power[W] | 50 | 50 |
Dimension[W×H×D][mm] | 373*238*623 | 373*238*623 |
Weight[kg] | 5.8 | 4.8 |
Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH |
