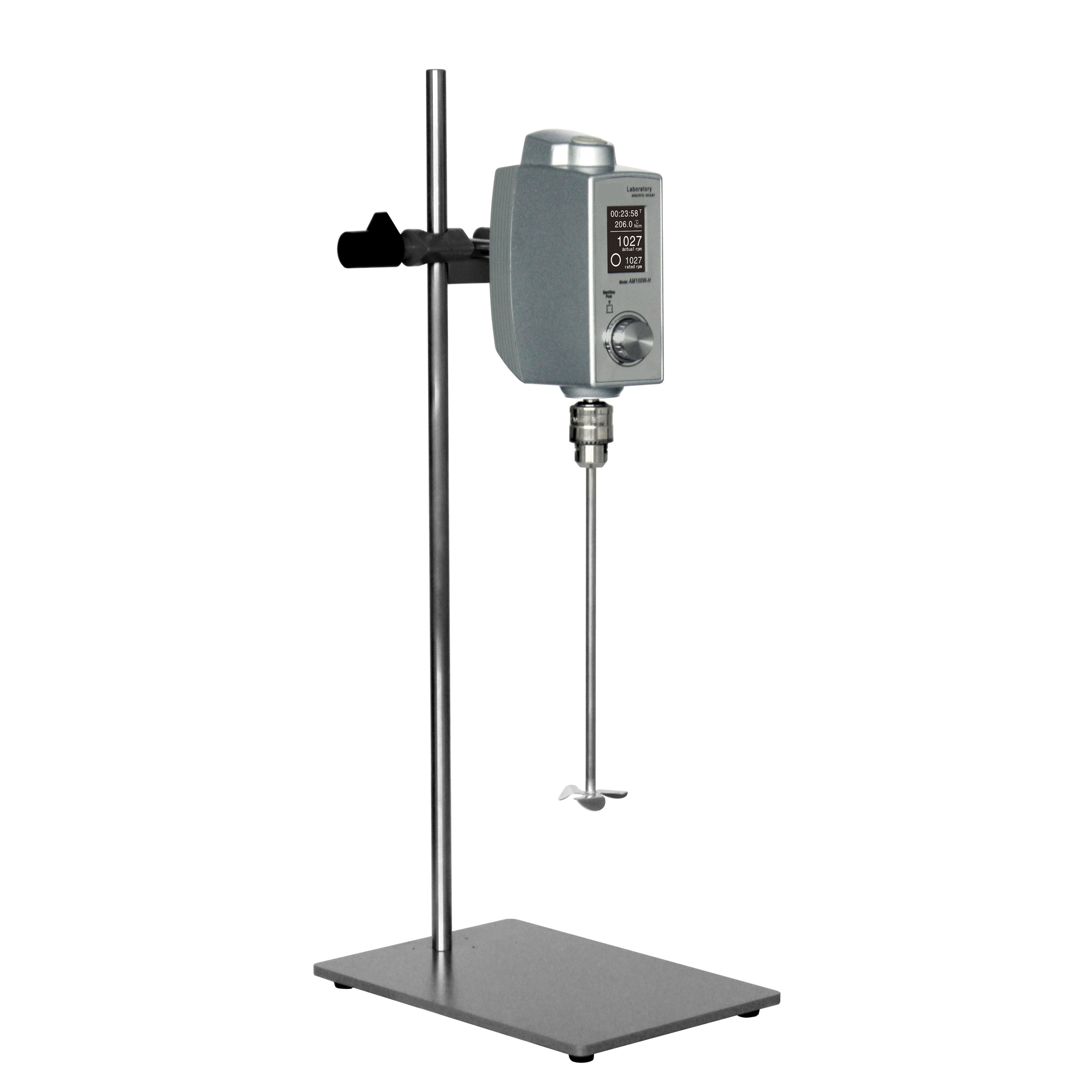

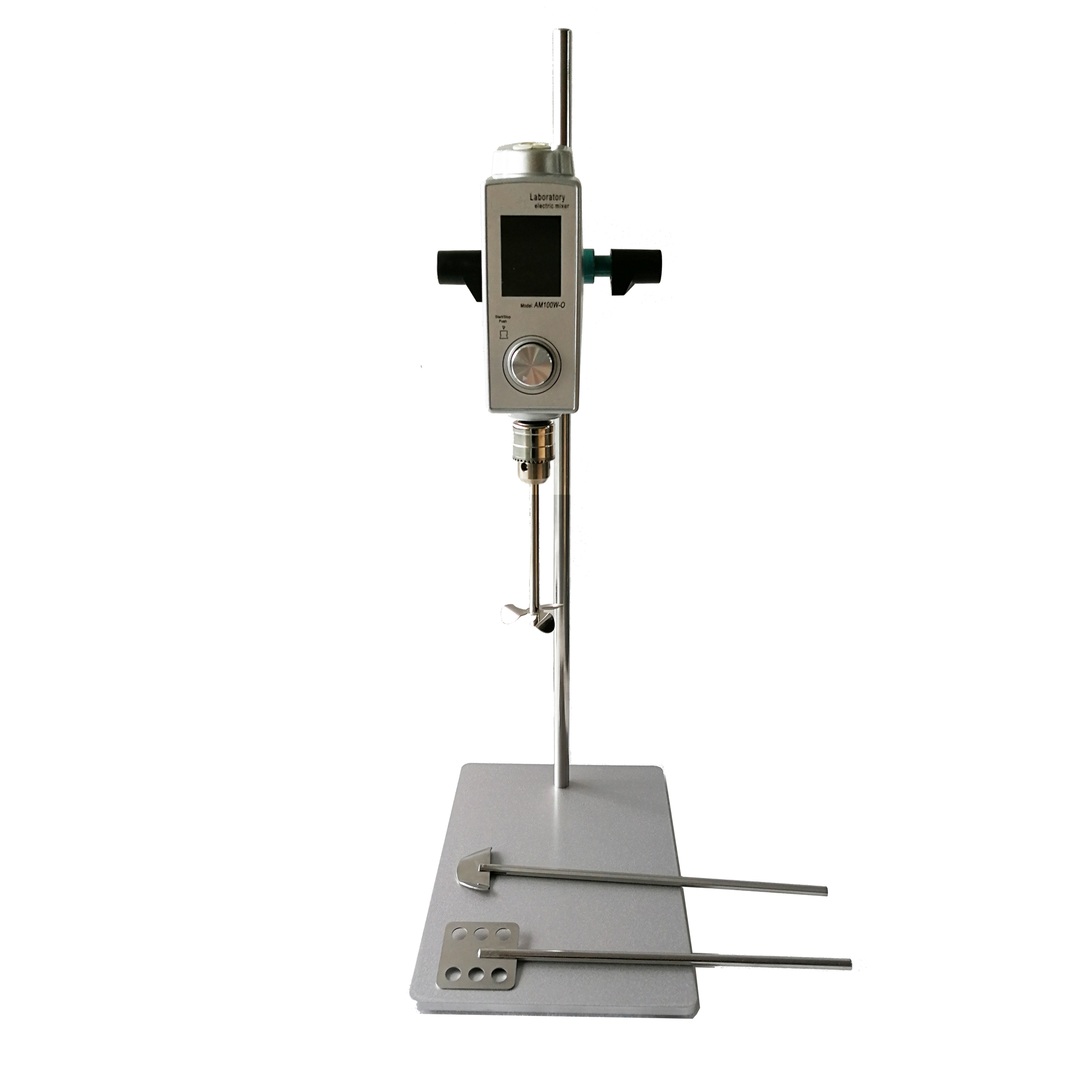

NADE 30L 30~2000rpm Strong Power Brushless Motor Overhead Stirrer Lab Mixer AM200W-O

  • Paddle

  • 30

  • 30 L

  • 30L

  • 14.5 KG

  • New

  • Cosmetic

  • Liquid, Chemicals Processing

  • Zhejiang, China

  • NADE

  • 100V~240V, 100V~240V

  • 215*310*720

  • 0.2 kW

  • 1 Year

  • Online support

  • Easy to Operate

  • laboratory

  • No service

  • None

  • None

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • other

  • 30-2000 rpm

  • 30,000 ml (30L)

  • 110W

  • AC brush less motor

  • 0~6000min

  • 50Hz/60Hz

  • LCD Screen

  • 100,000 mPa.s

  • 40.2N.cm

Product Description

Contact us for discount, based on ordering quantity.

Introductions
  1. This high-power brushless mixer is driven by a brushless DC motor and is suitable for mixing low-to-medium, high-viscosity liquids in the laboratory.
  2. The machine has low speed operation, high torque output, low noise, and no maintenance.
  3. The stirring speed is controlled by the microprocessor. It can instantly and effectively compensate the speed change caused by the load change and power supply voltage fluctuation, and the constant speed is reliable.
  4. Built-in automatic overload protection device to ensure the safety of continuous high-load continuous operation for a long time.
  5. The stirring speed is adjusted steplessly to meet the stirring speed at any time in the experiment.
  6. The digital display shows the actual output stirring speed and speed increase and decrease to ensure the intuitive collection of experimental data.
  7. Running timing control ensures that the time of the experiment is effectively controlled.
Application:

The stable stirring speed of the machine is suitable for stirring high viscosity media and slurry.

The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation. The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing.

Features:
NADE 30L 30~2000rpm Strong Power Brushless Motor Overhead Stirrer Lab Mixer AM200W-O

1. Brushless Direct Current Motor.

2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.

3. Suitable for a wide range of material with different stirring paddle and different speed.

4. Stable and constant operation.

5. Overload protection.

6. Long time running.

7. High effective in speed control.

8. Easy operate and easy clean easy maintenance.

9. Timing. speed setting memoried.

Specification:

Model

AM200W-O

Processing capacity (H2O)

30 L

Input power

295 W

Output power

200 W

Rated torque

40.2 N.cm

Peak torque

120 cm

Rated voltage

AC 100~240 V

Rated frequency

50\60 Hz

Rotary clamp head range

Φ2~13 mm

Stirrer configuration

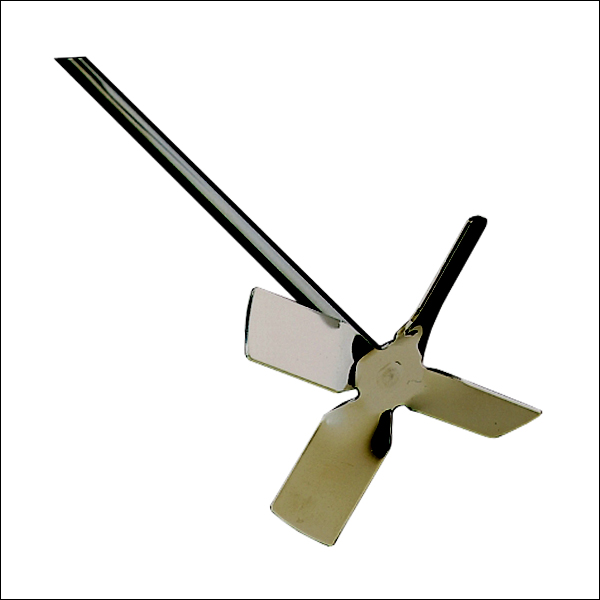

4 blade paddle

Drive type

Brushless DC Motor

Work mode

S1 (Continuous)

Operation status display

LCD

Operation control method

Function knob

Speed adjustment range

30~2000 rpm

Speed control type

Stepless

Timing control range

1~6000 min

Speed dynamic detection function

Yes

Motor temperature dynamic detection function

Yes

Speed memory function

Yes

Overload protection

Yes

Stir bar fixing method

Quick install chuck

Treatment viscosity

100000 mPa.s

Allowable ambient temperature

Not more than 40 ℃

Allowable relative humidity

Not more than 80 %

Protection level

IP 40

Machine size

215×310×720 mm

Weight

14.5 kg

We provide a wide range of stirrer/mixer/agitator/homogenizer, at different speed, different capacity, with different paddle shapes, suitable for different liquid.

Model

AM100W-O

AM200W-O

AM300W-O

AM400W-H

Processing capacity (H2O)

20 L

30 L

50 L

60 L

Input power

162 W

295 W

440 W

615 W

Output power

110 W

200 W

300 W

418 W

Rated torque

13.1 N.cm

40.2 N.cm

60.1 N.cm

100 N.cm

Peak torque

39 N.cm

120 cm

180 N.cm

300 N.cm

NADE 30L 30~2000rpm Strong Power Brushless Motor Overhead Stirrer Lab Mixer AM200W-O

Optional accessories

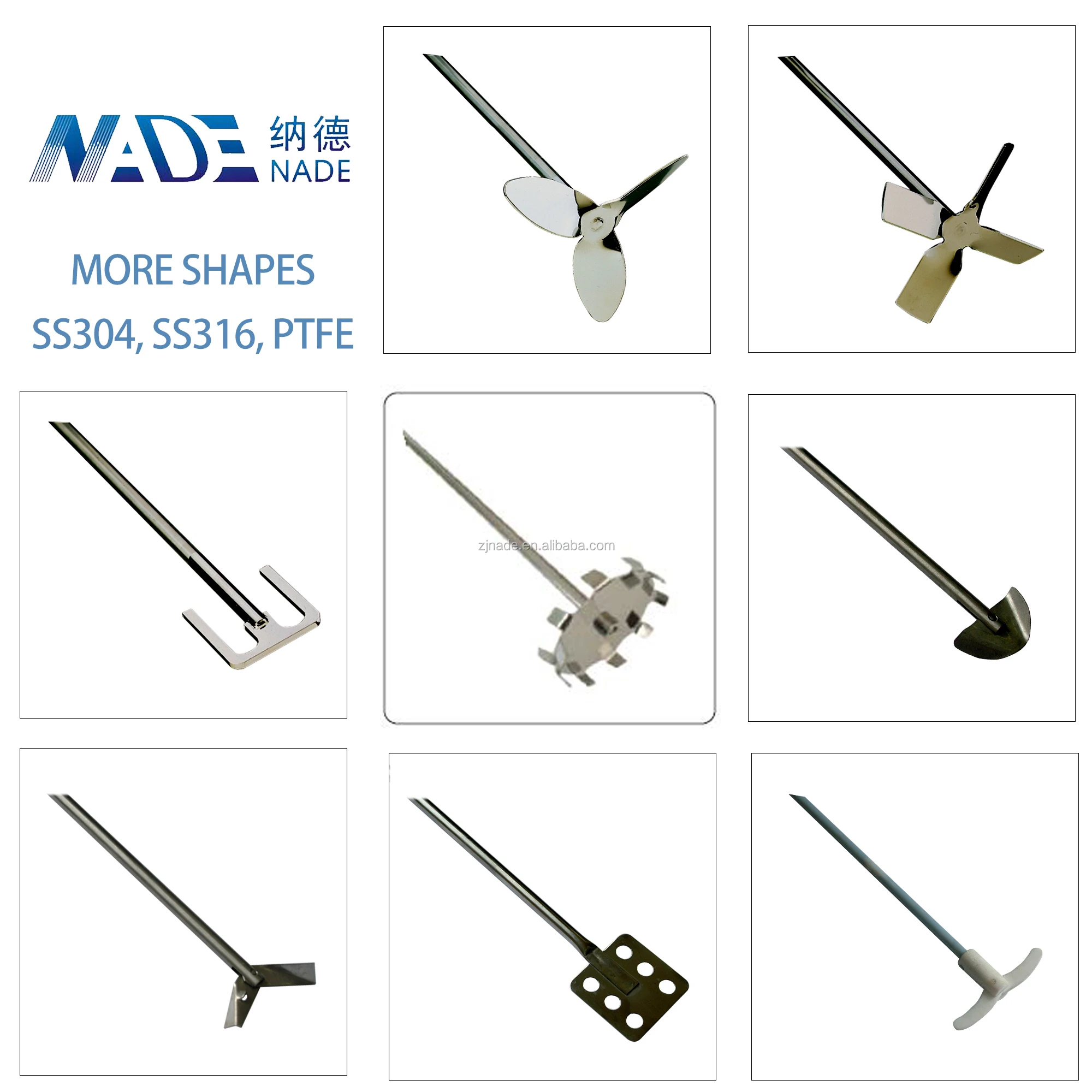

Paddle shape can be customized as your requirement.

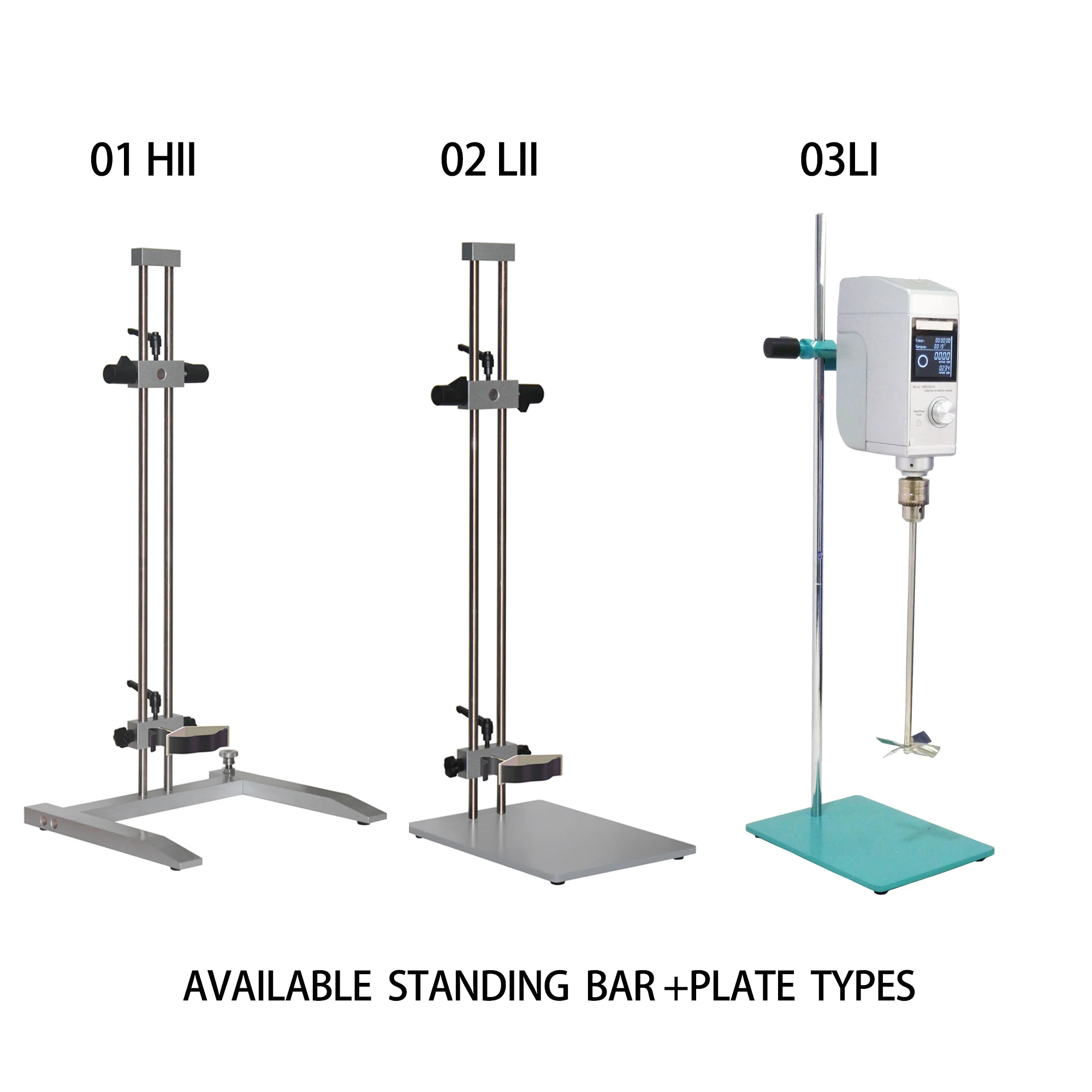

3 standing bar & plate stype for choice. 03LI type is standard configuration. 01HII and 02LII are optional.
