Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

  • Zhejiang, China
  • Nade-Dissolved oxygen meter
  • (0-20.00)mg/L
  • ±0.10%FS
  • dissolved oxygen meter
  • SX716
  • 0.1/0.01 mg/L(ppm) 1/0.1 %
  • (0 ~ 45)°C(automatic)
  • 2x1.5V
  • Water Treatment Industry
  • Auto Testing Machine
  • 2kg

Product Description

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716

Product Description

Instruction:

Measurement mode of Dissolved oxygen has the function of automatic temperature compensation, automatic salinity compensation and manual air pressure compensation.
New polarographic type dissolved oxygen electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special dissolved oxygen electode calibration set, polarization only for 3~5 min.
Built-in microprocessor chips, intelligent functions such as automatic calibration, data storage, function set-up, automatic power-off and low voltage display.
Combined diaphragm cap, replaceable sensitive membrane, screw new diaphragm cap to electrode, easy to use.
Meter meets IP57 waterproof rating, equipped with portable case.

Specification:

Category Product Name Basic features and specifications
Dissolved Oxygen

Measuring range

(0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)%

Resolution

0.1/0.01 mg/L(ppm) 1/0.1 %

Accuracy

Meter:±0.10 mg/L, Overall:±0.40 mg/L

Response time

≤30 s(25°C, 90%response)
Residual current ≤0.1 mg/L
Temp. compensation range (0 ~ 45)°C(automatic)
Salinity compensation range (0 ~ 45)ppt(automatic)

Atmospheric pressure compensation range

(66 ~ 200)kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type
Other Technical Parameters

Data storage

200 groups
Storage content Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

meter:(65×120×31)mm/180g; Suitcase: (360×270×76)mm/1.6Kg
Quality and safety certification ISO9001:2000, CE and CMC
Working Condition

Environment temperature

5 ~ 35 °C(0.01grade)

Environmental humidity

≤85%

IP rating

IP57 Dustproof and waterproof

Standard kits

1. Model SX716 DO meter 1unit
2. DO500 DO electrode 1pc
3. DO503 membrane cap (DO electrode use) 3pc
4. DO502 DO electrode inner solution (30mL) 1bottle
5. Cathode polishing paper 2pc
6.Screw driver 1pc
7. Spare AA batteries 2pcs
8. Operation manual 1pc
9. Carrying case 1unit

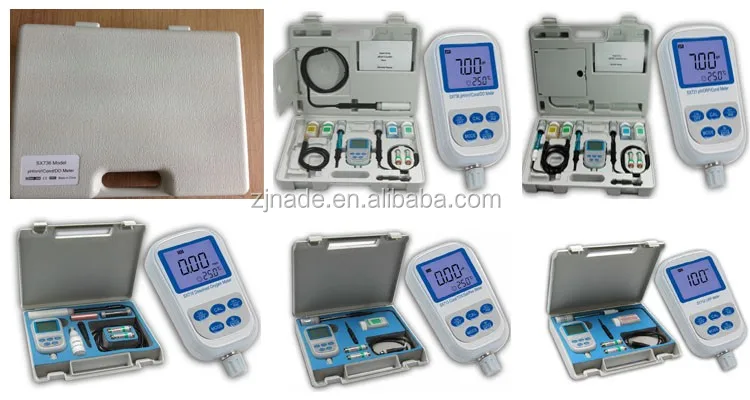

Real photos show

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter More models pls click the picture for more details:

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

Packaging & Shipping

Our Packaging Details:

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

Our Shipping

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

Company Information

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

Our Services

Nade Lab Analysis Instrument Portable dissolved oxygen meter SX716 Do Meter

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
