DO210E Portable DO Meter

DO Concentration Range: 0.00 to 20.00 mg/L
DO Saturation Range: (0.0 to 200.0)%
Temp Range: -5 to 110 ºC, 23 to 230 ºF
Data Storage: 200 results each
Availability:
  • DO210E
  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
  • 1
  • 1 year
  • China

Product Description

DO210E

● LCD display screen, 3.5 inches.

● Multi-reading feature allows auto-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data capacity of up to 200 sets for each parameter.

● Auto-power off feature effectively extends the battery service life.

● Reset feature automatically resumes all settings back to factory default options.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

● Support for air-saturated water or zero oxygen calibration

● Manual barometric pressure compensation.

● Manual Salinity Factor Correction.


Specification

Model

DO210E

Parameters

DO/Temp(DO Saturation).

Dissolved Oxygen Concentration

Sensor Type

Polarographic



Range

0.00 to 20.00 mg/L



Resolution

0.01mg/L



Accuracy

± 0.3mg/L



Calibration Points

Air-saturated water or zero point



Barometric Compensation

Yes



Manual Salinity Factor Correction

Yes

    DO Saturation

Range

(0.0 to 200.0)%



Resolution

0.1%



Accuracy

± 2.0%

     Temperature

Range

-5 to 110 ºC, 23 to 230 ºF



Unit

ºC, ºF



Resolution

0.1



Relative Accuracy

± 0.2

    Measurement

Reading Mode

Auto Read, Continuous



Reading Prompts

Reading, Stable, Locked



Temp. Compensation

ATC, MTC

Data management

Data Storage

200 results each

Inputs

DO with Temp. Probe

4-pin aviation connector

   Display options

Backlight

Yes



Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off



IP Rating

IP65

        General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output



Dimensions

80 x 255 x 35 mm



Weight

400g (0.88 lb)






Configuration

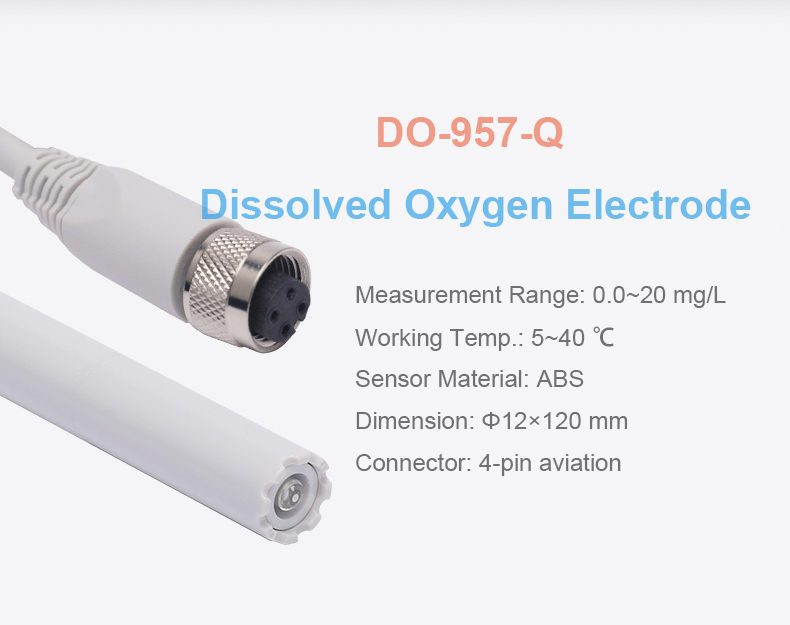

DO-957-Q Dissolved Oxygen Electrode (Zero Oxygen Calibration Solution, Dissolved Oxygen Electrolyte, Dissolved Oxygen Electrode Membrane Sleeve 3pcs)

Electrode Hanger

Protective Cover

Wrist Strap Assembly

DO-957-Q Polarographic DO electrodeDO210E With Wrist StrapDO210E P6
