MP516 Dissolved Oxygen Meter

DO Range: (0 ~ 19.99)mg/L(ppm) (0 ~ 200.0)%
DO Accuracy: Meter: ±0.10 mg/L, connect meter with electrode: ±0.40 mg/L
Temperature range:  0~45℃
Data storage：600 groups
Availability:
Inquire

  • MP516

  • NADE

  • DC9V

  • 1

  • 1 year

  • China

Product Description

MP516

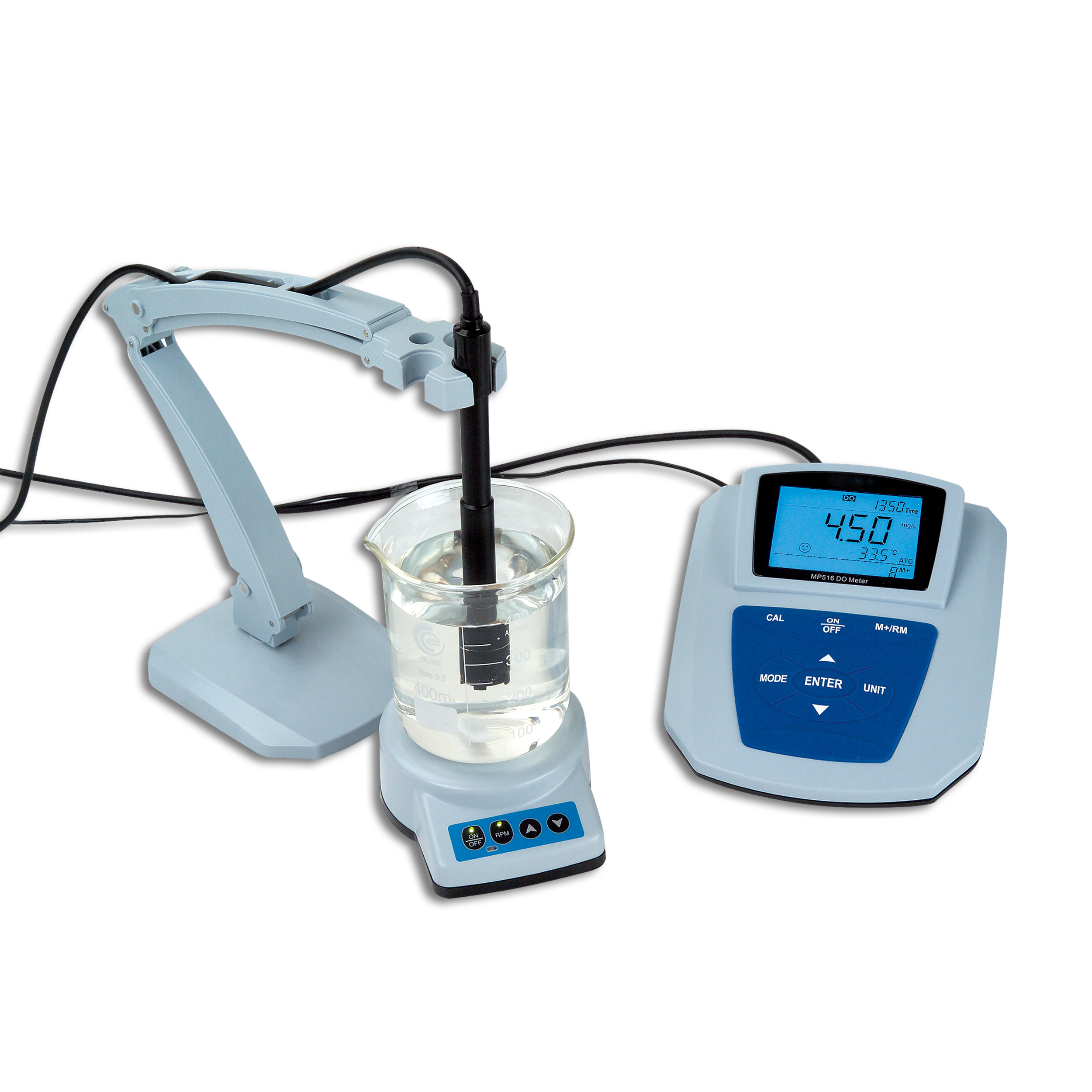

MP516 Dissolved Oxygen Meter
The MP516 Laboratory Dissolved Oxygen Meter is a polarographic benchtop dissolved oxygen measuring instrument. It is suitable for
industries such as aquaculture, water source monitoring, sewage treatment, and environmental protection monitoring, and is also widely used in the fields of education and scientific research. Relying on its advanced digital processing technology, it
consistently provides fast, accurate, stable, and more precise dissolved oxygen measurements, and has won wide trust from users.


Features
 It complies with GLP (Good Laboratory Practice) requirements in line with international standards, and is equipped with
intelligent functions including automatic calibration, automatic temperature compensation, data storage, RS232 output, clock display, function setting, and self-diagnostic information.

It adopts digital filtering and slip technology to intelligently improve the instrument’s response speed and the accuracy of
measurement data, and displays a smiley face icon when the measured value is stable.

It comes standard with a patented three-in-one polarographic dissolved oxygen electrode—featuring automatic temperature compensation and automatic salinity compensation—along with manual air pressure compensation, ensuring easier operation and more accurate measurements.

For the polarographic dissolved oxygen electrode, when used with its dedicated dissolved oxygen electrode calibration sleeve, electrode polarization takes only 3–5 minutes.

The electrode uses a combined diaphragm cap, where the sensitive membrane and diaphragm cap housing are integrated. When replacing the sensitive membrane, simply screw a new diaphragm cap tightly onto the electrode—making operation extremely convenient. Each dissolved oxygen electrode is equipped with three spare diaphragm caps.

It meets the IP54 dust and splash protection rating, and the instrument interfaces are sealed and protected by silicone caps.

Specification

Model

MP516















Dissolved Oxygen

Measuring range

(0 ~ 19.99)mg/L(ppm) (0 ~ 200.0)%

Resolution

0.1/0.01 mg/L(ppm) 1/0.1 %

Accuracy

Meter: ±0.10 mg/L，connect meter with electrode: ±0.40 mg/L

Response time

≤30 s(25℃, 90% response)

Residual current

≤0.1 mg/L

Temp. compensation range

(0 ~ 45)℃(automatic)

Salinity compensation range

(0 ~ 45)ppt(automatic)

Air pressure compensation

(80 ~ 105)kPa(automatic)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type



Temperature

Measuring range

(0~ 45) ℃

Resolution

0.1℃

Accuracy

±0.5 ℃









Other Technical Parameters

Data storage

600 groups

Storage content

Measuring value series number, measuring value, temperature, measuring date and time

Power

DC9V/300mA

Communication connector

RS232

Size and weight

160 x 190 x 70mm/880g

Quality and safety certification

ISO9001:2000, CE and CMC



Working Condition

Environment temperature

5 ~ 35 ℃

Environmental humidity

≤ 80%

IP rating

IP54 Dustproof and waterproof
