DO600L Benchtop DO Meter

DO Concentration Range: 0.00 to 99.99 mg/L
DO Saturation Range: (0.0 to 600)%
Temp Range: -5 to 130 ºC
Data Storage: 1000 Groups
Availability:
  • DO600L
  • AC Adapter, 100-240V AC input, DC24V output
  • 1
  • 1 year
  • China

Product Description

DO600L

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user

management, calibration management, method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● Support for air-saturated water or zero oxygen calibration.

● Auto barometric pressure compensation.

● Manual Salinity Factor Correction.

● Selectable pressure unit, including kPa, mbar, Torr, Atm.


Specification

Model

DO-600L

Parameters

DO/Temp(DO Saturation).

 Dissolved Oxygen

  Concentra- tion

Sensor Type

Polarographic


Range

0.00 to 99.99 mg/L


Resolution

0.01 mg/L


Accuracy

± 0. 1 mg/L


Calibration Reminder

Yes


Calibration Points

Air-saturated water or zero point


Barometric Compensation

Yes


Manual Salinity Factor Correction

Yes

DO Saturation

Range

(0.0 to 600)%


Resolution

0.10%


Accuracy

± 10.0%

      Temperature

Range

-5 to 130 ºC


Unit

ºC


Resolution

0.1


Accuracy

± 0. 1

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous


Reading Prompts

Reading, Stable, Locked


Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups


GLP Features

Yes


Log Management

Yes

Inputs

DO with Temp. Probe

6-pin Mini-DIN

Outputs

USB, RS 232

USB 2.0 flash memory device, printer, PC

     Display options

Backlight

Yes


Auto Shutdown

1~60 min, off


IP Rating

IP54


Date and Time

Yes

General

Power

AC Adapter, 100-240V AC input, DC24V output


Dimensions

280 × 280 × 130 mm


Weight

2500g (5.51 lb)


Configuration

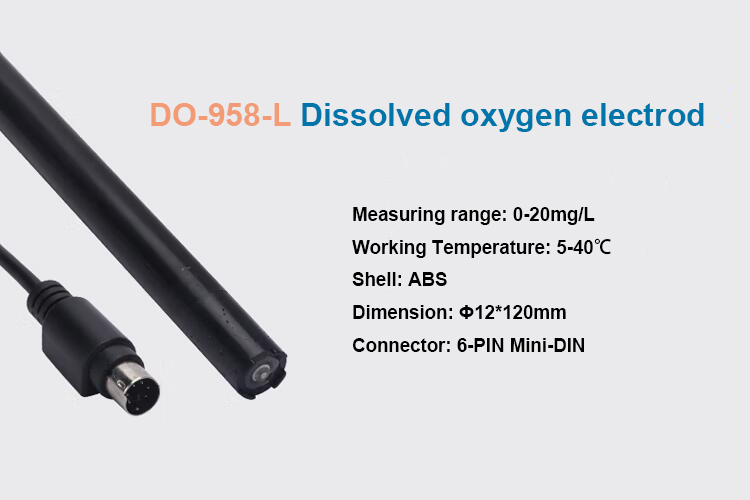

DO-958-L Dissolved Oxygen Electrode (Zero Oxygen Calibration Solution, Dissolved Oxygen Electrolyte, Dissolved Oxygen Electrode Membrane Sleeve 3pcs)
Touch Screen Pen, REX-3 Electrode Stand

DO-958-L 溶解氧电极REX-3 支架


JPSJ-606L
