Bante821 Portable Dissolved Oxygen Meter

Dissolved Oxygen Range: 0.00 to 20.00 mg/L
Dissolved Oxygen Resolution: 0.01/0.1 mg/L,selectable
Dissolved Oxygen Accuracy: ±0.2 mg/L
% Saturation of Oxygen Range: 0.0 to 200.0%

Availability:
  • Bante821
  • NADE
  • 3 × 1.5V AA batteries or 5V DC power adapter
  • 1
  • 1 year
  • China

Product Description

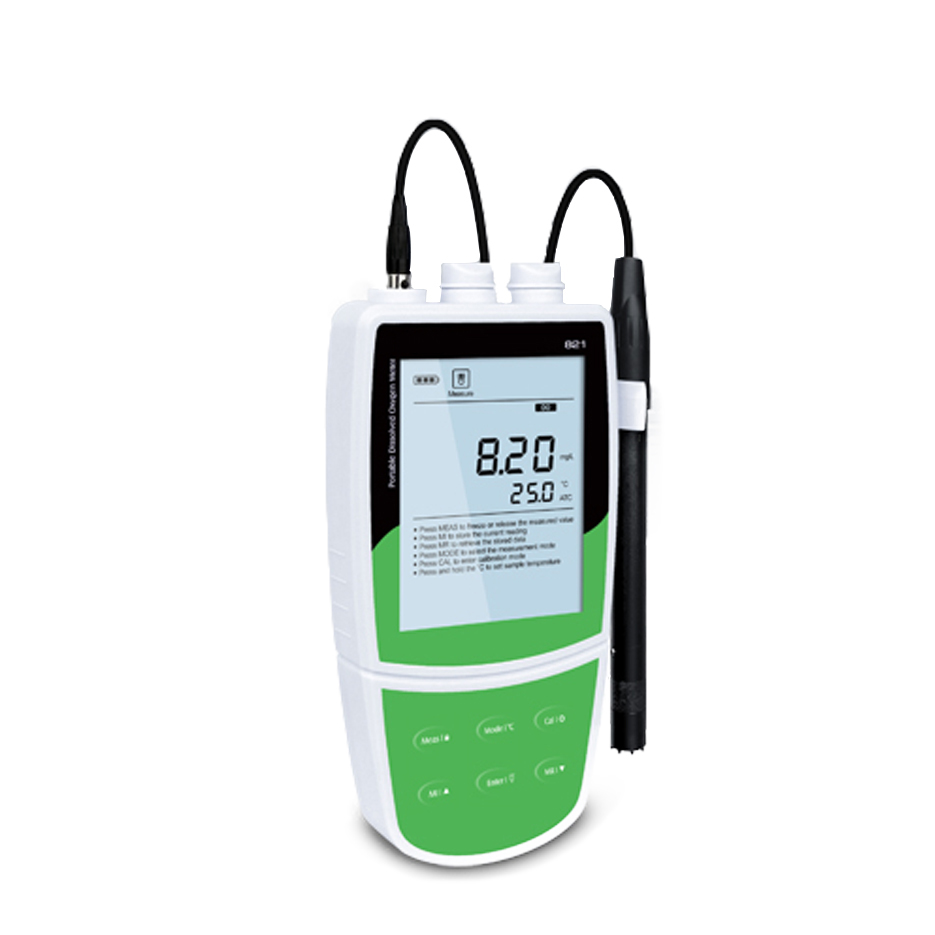

Bante821 p1

Brief introduction:

Professional portable dissolved oxygen meter, 2 points calibration, selectable the salinity and barometric pressure coefficients, accuracy: 0.2 mg/L..



Features:

1. Professional portable dissolved oxygen meter is equipped with a backlit LCD display.

2. 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

3. Salinity and barometric pressure compensations eliminate the measurement error.

4. Automatic temperature compensation ensures accurate readings over the entire range.

5. Auto-Read function senses and locks the measurement endpoint.

6. Calibration due alarm prompts user to calibrate the meter regularly.

7. Auto-Power Off effectively conserves battery life.

8. Setup menu allows setting the number of calibration points, resolution, stability criteria, date and time, etc.

9. Reset function automatically resumes all settings back to the factory defaults.

10. Expanded memory stores or recalls up to 500 data sets.

11. USB communication interface is easy to transfer data to PC.

12. Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the meter smoothly.

Bante821 P3



Applications:

² Research and education

²  Environmental monitoring

² Other industrial applications


Specification

Model

Bante821

Dissolved Oxygen

Range

0.00 to 20.00 mg/L

Resolution

0.01 / 0.1 mg/L, selectable

Accuracy

±0.2 mg/L

% Saturation of Oxygen

Range

0.0 to 200.0%

Resolution

0.1 / 1%, selectable

Accuracy

±2.0%

Other Specifications

Calibration Points

1 or 2 points

Temperature Compensation

0 to 50°C / 32 to 122°F, automatic

Pressure Correction

60.0 to 112.5 kPa / 450 to 850 mmHg, manual

Salinity Correction

0.0 to 50.0 ppt, manual

Temperature Correction

Reading ±10°C/°F

Hold Function

Manual / Auto-read measurement endpoint

Stability Criteria

Low / High

Calibration Due Alarm

1 to 31 days or off

Auto-Power Off

10 / 20 / 30 minutes after last key pressed

Memory

Stores up to 500 data sets

Output

USB communication interface

Connector

6-pin mini-DIN

Display

Custom LCD (80×60mm)

Power Supply

3 × 1.5V AA batteries or 5V DC power adapter

Battery Life

Approximately 150 hours without backlight

Environmental Conditions

0 to 50°C / 32 to 122°F, relative humidity < 80%

Dimensions

170(L)×85(W)×30(H)mm

Weight

300g

Bante821 P2



Accessories:

² DO100 dissolved oxygen electrode

² DO electrolyte solution

² DO membrane cap

² Carrying case



Optional Accessories:

² DO100 Dissolved Oxygen Electrode (For measuring the DO and % saturation of oxygen)

² DO Electrolyte Solution (For filling the dissolved oxygen electrode)

² DO Membrane Cap (For DO100 and IE80T dissolved oxygen electrodes)

² USB Cable (For transferring data or connecting power adapter)

² 5V DC Power Adapter (For connecting external power source)



Packaging:

Dimensions: 35*10*30cm    Weights: 1.5kg
