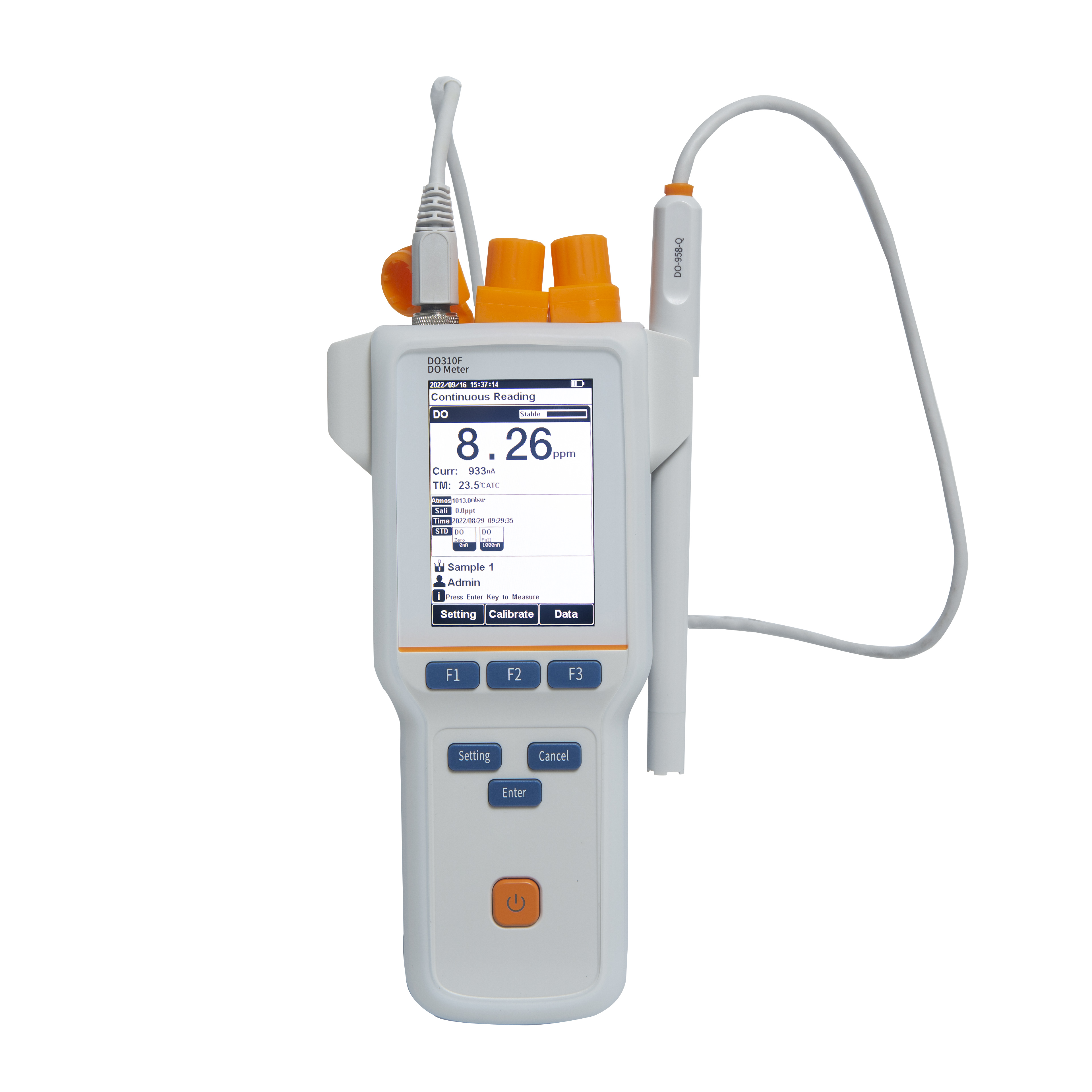

DO310F Portable DO Meter

DO Concentration Range: 0.00 to 50.00 mg/L
DO Saturation Range: (0.0 to 300.0)%
Temp Range: -5 to 110 ºC, 23 to 230 ºF
Data Storage: 1000 Groups
Availability:
  • DO310F
  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
  • 1
  • 1 year
  • China

Product Description

DO310F

● LCD display screen, 3.5 inches.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data capacity of up to 500 sets for each parameter (GLP-compliant).

● Support for USB communication.

● Auto-power off feature effectively extends the battery service life.

● Reset feature automatically resumes all settings back to factory default options.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

● Support for air-saturated water or zero oxygen calibration.

● Auto barometric pressure compensation

● Manual Salinity Factor Correction

● Selectable pressure unit, including kPa, mbar, Torr, Atm.


Specification

Model

DO310F

Parameters

DO/Temp(DO Saturation).

 Dissolved Oxygen        Concentration

Sensor Type

Polarographic



Range

0.00 to 50.00 mg/L



Resolution

0.01mg/L



Accuracy

± 0. 1mg/L



Calibration Points

Air-saturated water or zero point



Barometric Compensation

Yes



Manual Salinity Factor Correction

Yes

DO Saturation

Range

(0.0 to 300.0)%



Resolution

0.10%



Accuracy

± 2.0%

       Temperature

Range

-5 to 110 ºC, 23 to 230 ºF



Unit

ºC, ºF



Resolution

0.1



Relative Accuracy

± 0.2

Measurement

Reading Mode

Auto-Read (Fast, Medium, Slow), Timed, Continuous



Reading Prompts

Reading, Stable, Locked



Temp. Compensation

ATC, MTC

Data

management

Data Storage

1000 Groups



GLP Features

Yes

Inputs

DO with Temp. Probe

4-pin aviation connector

Outputs

USB

PC, printer

     Display options

Backlight

Yes



Auto Shutdown

300, 600, 1200, 1800, 3600sec., off



IP Rating

IP65



Date and Time

Yes

         General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output



Dimensions

80 x 255 x 35 mm



Weight

400g (0.88 lb)






Configuration

DO-958-Q Dissolved Oxygen Electrode (Zero Oxygen Calibration Solution, Dissolved Oxygen Electrolyte, Dissolved Oxygen Electrode Membrane Sleeve 3pcs)

Electrode Hanger

Protective Cover

Wrist Strap Assembly

Portable Protective Case

DO-958-Q Polarographic DO electrodeDO310F P5
