Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

  • Homogenizer

  • 50L

  • Chemicals, Food, Medicine

  • 50 L

  • 600 - 3600 r.p.m

  • 10-50L

  • 50 KG

  • New

  • China

  • Nade

  • 710*550*1060

  • 1500 kW

  • 1 year

  • Automatic

  • Food & Beverage Factory, Food & Beverage Shops, Advertising Company

  • Video technical support, Online support

  • None

  • None

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • Motor

  • 220V, 50Hz

  • 5-50L

  • 5000CP

  • 300-3600rpm

  • Frequency

  • Digital display

  • SS316L

  • PTFE

  • 90F

  • 5-40°C

Product Description

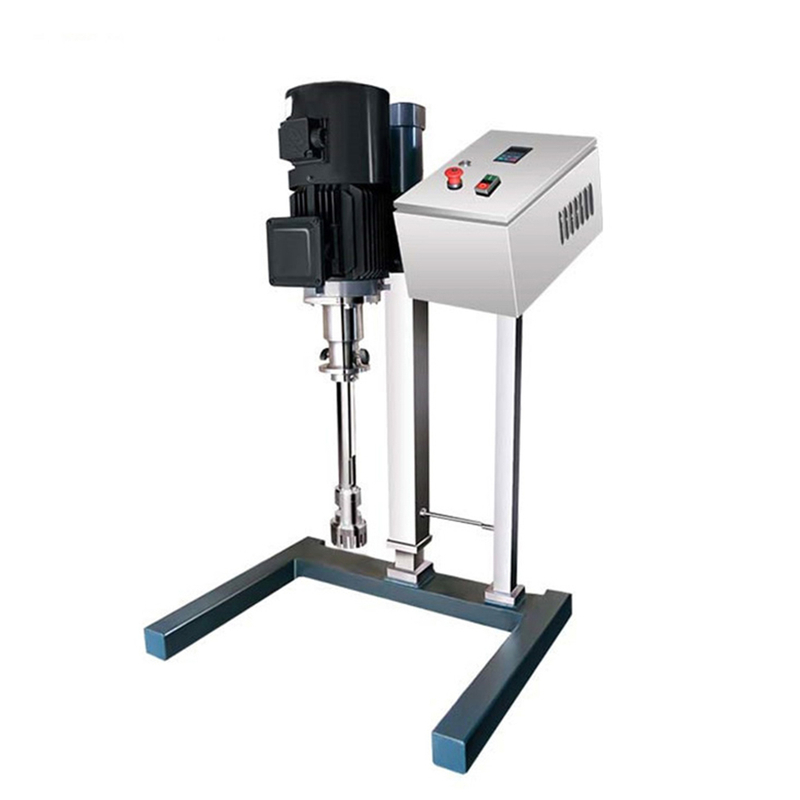

HR-90Z Pilot test high shear dispersing emulsifier

Product Description

The pilot-scale high-shear dispersing emulsifier is specially designed for pilot-scale, simulated production and small batch production in factories. The standard working head adopts the claw structure, according to different materials and process requirements, the suitable stator and rotor can be freely replaced.

Feature

1. Pilot-scale laboratory equipment with a processing capacity of 50L (H2O).

2. Only need to replace the working head, the equipment can achieve powerful mixing, dispersion, homogenization, emulsification, interception mixing, solid-liquid dispersion mixing, grinding and other functions.

3. The equipment is equipped with a high-speed frequency conversion motor, which will start when the machine is turned on to protect the equipment. The speed can be adjusted and the display can continuously work for 8 hours.

4. Dispersing head adopts quick connection mode, easy to disassemble and replace equipment, modular design, and flexible combination.

5. With cold trap one-key defrost function.

Specification

Model

HR-90Z

Power

1500W

Power supply

220V, 50Hz

Processing capacity

5-50L

Processing viscosity

5000CP

Speed range

300-3600rpm

Speed control

Frequency

Speed display

Digital display

Contact material

SS316L

Shaft material

PTFE

Standard working head configuration

90F

Allowable ambient temperature

5-40°C

Allowable relative humidity

80%

Motor protection level

IP54

Frequency converter

Standard

Overload protection

Yes

Process type

Batch processing

Work frame, base

Electric lift

Work frame, base material

SS304, CS spray

Lifting stroke

400

Dimensions

710*550*1060

Weight (kg)

~50kg

Package

Wooden box

Optional working heads of HR-90Z

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction
Packaging & Shipping

Our Packaging Details:

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

Our Shipping

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

Company Information

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

Nade HR-90Z Pilot test high shear dispersing emulsifier for pilot-scale, simulated production and small batchproduction

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
