| Model: | |
|---|---|
AD300L-SH
NADE
1
CHINA
Product Description
AD300L-SH
① Speed Display
② Speed Control Knob
③ Power Switch
④ Connection Seat
⑤ Working Head
⑥ Machine Base
⑦ Upright Column
⑧ Double Pillar
⑨ Support Bracket
⑩ Brush Holder
Features
1. The drive unit is made of high-quality die-cast aluminum alloy, ensuring stable operation, and the working head is made of high-quality stainless steel, offering a wide range of experimental applications;
2. The operating speed is controlled by a microprocessor, capable of instantly and effectively compensating for speed changes caused by load changes and power supply voltage fluctuations, ensuring reliable constant speed;
3. Built-in soft start and automatic overload protection ensure the safety of long-term continuous operation at full load;
4. The speed is infinitely adjustable to meet the need for immediate adjustments in stirring speed during experiments;
5. The digital display of the speed is intuitive, providing convenience for experimental data collection
6. The timing control function ensures the effective control of the experimental time.
Specifications
We can offer at 110V voltage, pls inform us in advance！！
Model | AD300L-SH |
Rated voltage | AC 220V 1P (Standard); AC 110V 1P (Optional) |
Rated frequency | 50/ 60 Hz |
Input power | 680 W |
Output power | 400 W |
Rated torque | 15.9 N·cm |
Working mode | S1 |
Operation control mode | Combination control knob |
Speed range | 2000~24000 rpm |
Speed control type | Infinitely |
Display | LED |
Timing control range | 1～999 min |
Overload protection | Yes |
Dynamical Speed recording | Yes |
Speed display | Yes |
The Material of the Operating head | Stainless steel 304 |
Size of the mixer (T×B×H) | 215×310×720 mm |
Permissible ambient temperature | Lower than 40ºC |
Permissible relative humidity | Less than 80% |
Net weight | 10-11KG |
Parameter of working head:
Working head | 10G | 25G | 19G | 35G |
Mixing capacity (H2O, ml) | 25-100 | 80~5000 | 45-1600 | 150-13000 |
Stator diameter(mm) | Ø10 | Ø25 | Ø19 | Ø35 |
Rotor diameter(mm) | Ø7.2 | Ø19 | Ø15 | Ø28 |
Max. permissible speed | 24000rpm | 18000rpm | 22000rpm | 15000rpm |
Max. rotation speed(m/s) | 10.5 | 17.9 | 17.2 | 21.9 |
Working head length(mm) | 182 | 225 | 220 | 235 |
Min./max.immersion depth(mm) | 25-120 | 50-165 | 45-160 | 60-175 |
| Material contact part material | PTFE, SS304 | PTFE, SS304 | PTFE, SS304 | PTFE, SS304 |
| Max. working temperature | 120℃ | 120℃ | ||
Sterilization method | chemical wet process | chemical wet process | ||
Suspension particle size | 5-25μm | 10-50μm | 10-50μm | |
Floatation Liquid Size | 1-10μm | 1-10μm | ||
Permissible ambient temperature | 5-40℃ | 5-40℃ | ||

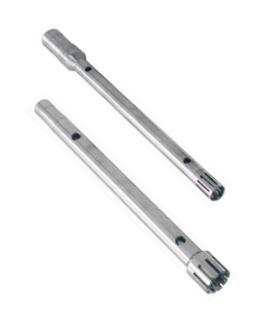

10G+25G 19G+35G
