Pilot High Shear Homogenizer HMP-90

Pilot high shear dispersing emulsifier is designed for pilot, simulation and small batch production in factories. The equipment offers a maximum processing capacity of 50L and features a claw-type standard working head. The stator and rotor are interchangeable to suit different materials and process requirements, ensuring flexibility and optimal performance.

*Brush-less motor*

*Explosion-proof (optional)*

1.Designed for the pilot treatment capacity of 5L-50L (H2O).

2.Only by changing the working head, the equipment can realize the functions of powerful, mixing, dispersing, homogenising, emulsifying, jet-flow mixing, solid-liquid dispersing and mixing, and grinding.

3.The equipment is equipped with a high-speed frequency conversion motor, frequency conversion start when switching on, to protect the equipment, adjustable speed and display.

4.Continuous working time up to 8 hours.

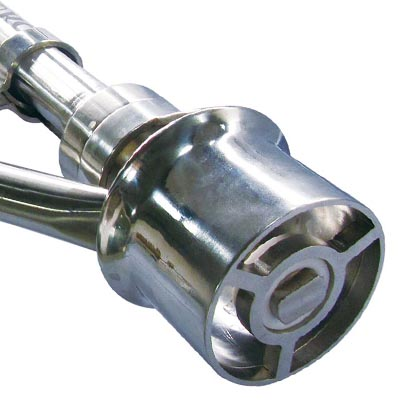

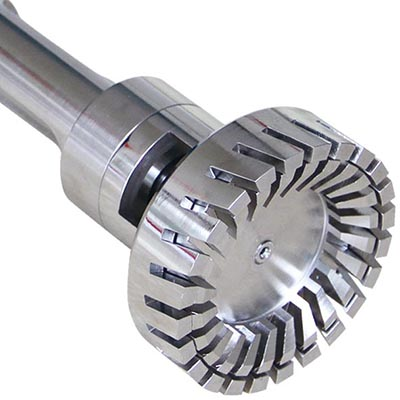

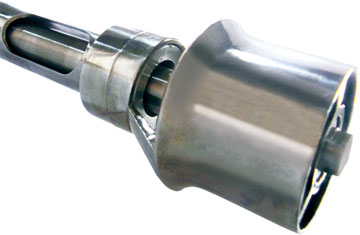

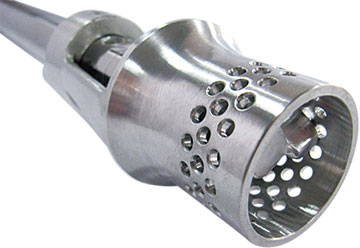

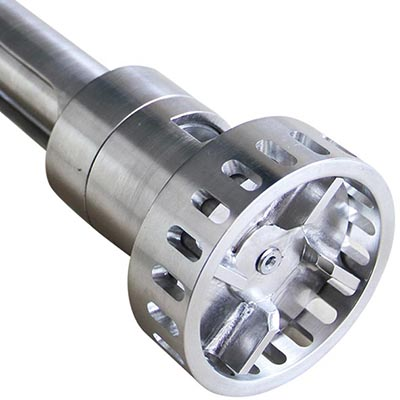

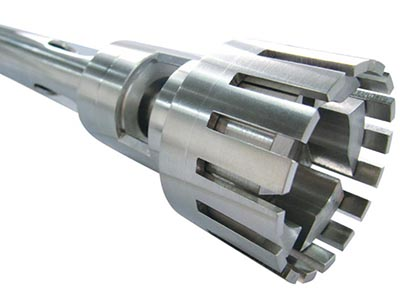

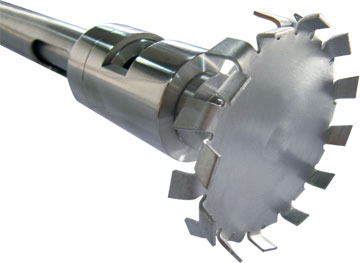

5.The dispersing head adopts quick connecting method, easy to dismantle and replace.

6.Equipment modular design, can be flexibly combined.
