Homogenizer
13
Chemicals, Food, Medicine
13 L
2000 - 23000 r.p.m
13L
8.7 KG
New
Cosmetic
Liquid with Suspended Solids
China
215*310*720mm
0.5 kW
1 year
Easy to Operate
laboratory, Cosmetics, university, Research institution
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
Motor
2000-23000rpm
30-13000ml (H2O)
18G
850W
500W
Stepless speed regulation
SS 304 Stainless Steel
50/60Hz
AC220
17.1N.cm
Product Description

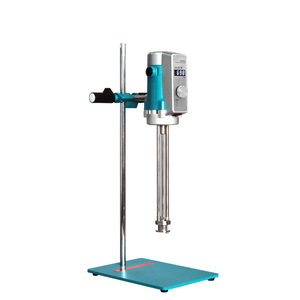

HR-500 High shear homogenizing emulsifier
Introduction:
The laboratory high-shear dispersing and emulsifying machine is dexterous and convenient. Can be operated by hand. High-quality motors are used for more stable operation and lower noise. It can be operated for a long time, a variety of working heads are available, and vacuum operation can be realized, which can easily meet a variety of high-demand dispersion, emulsification, and homogenization experimental requirements.
1. Choose high-quality motor, stable operation, lower noise, long-term operation, safe and reliable design.
2. All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance.
3. The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble.
4. Speed governor base adopts stepless governor, convenient speed control and stable operation.
| Model | HR-500DG |
| Range of rotation | 2000-23000rpm |
| Standard working head | 18G |
| Rated frequency | 50/60Hz |
| Input power | 850W |
| Output Power | 500W |
| Rated torque | 17.1N.cm |
| Work form | S1(Continuously Working) |
| Operation control method | Combined control knob |
| Rated voltage(V) | AC220 |
| Speed mode | Stepless speed regulation |
| Speed digital display | LED |
| Timing control range | 99h 59m 59s |
| Maximum torque of working head | 17N.cm |
| Material of working head | SS 304 Stainless Steel |
| Relative humidity | ≤80% |
| Allowable ambient temperature | ≤40C° |
| Dimensions | 215*310*720mm |
| Weight | 8.7KG |
The optional working heads of HR-500DG below. (18G is the standard working head)
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
