AE10
NADE
AC 220V ±10% (110V optional) 50/ 60 Hz
1
1 year
China
Product Description

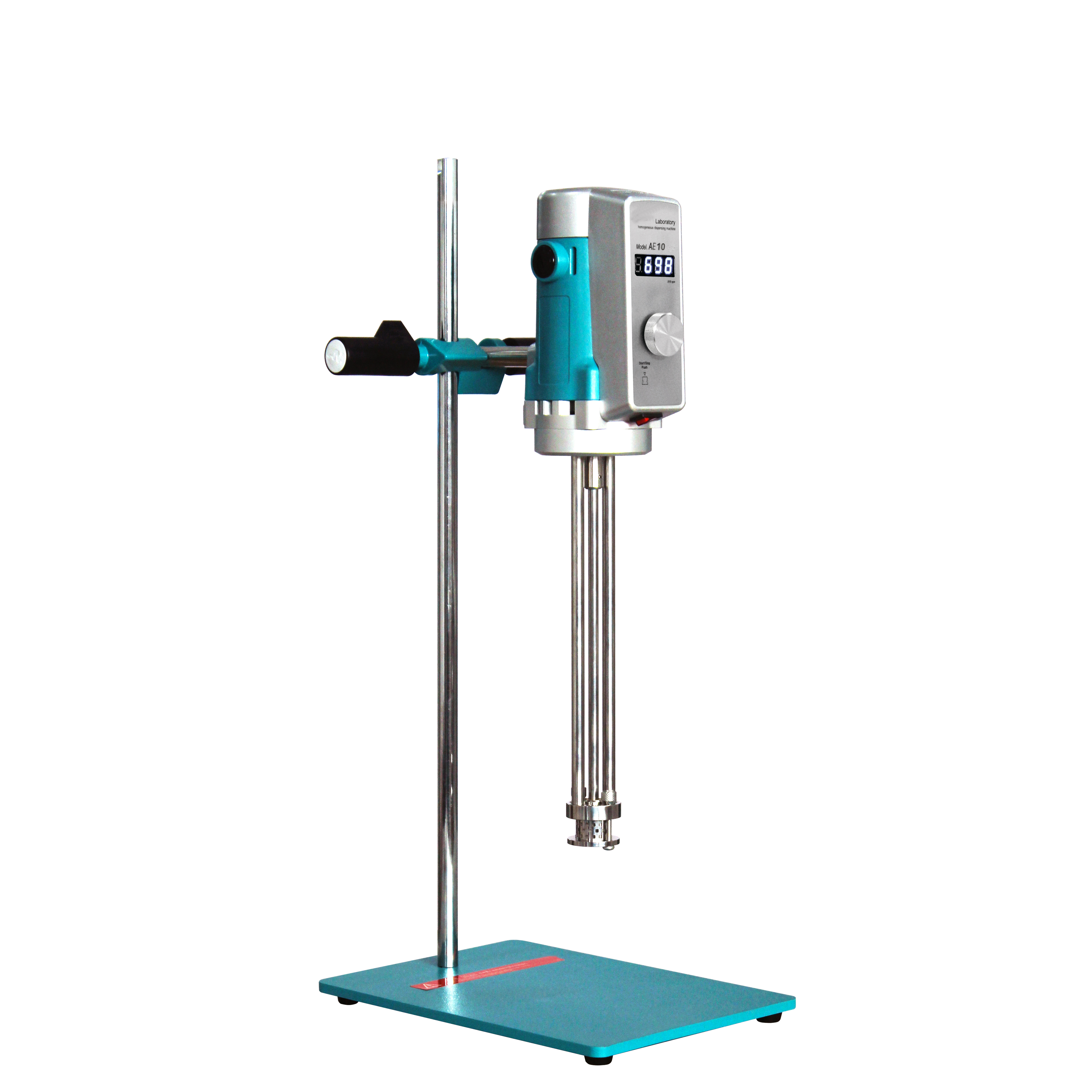

AE10 is designed for lab sample handling by emulsifying, homogenizing and dispersing, at small lab scale from 100ml to 20,000ml(H2O), suitable for pharmacy, food, cosmetics, biology, pigment, ink, pesticides etc.
Compared with previous models, AE10 has stronger power and higher torque, more suitable for high viscosity material. The compact structure allows small sample as less as 100ml.
Features
1. With high speed motor, AE10 is quite suitable for liquid-liquid mixing/emulsion and solid-liquid emulsion/ dispersing/ suspension/ crushing, especially for small volume and mushy samples;
2. Whole working head is made of high quality SS316 at different replaceable hole sizes, ensure wide applications;
3. The integrated structure of driving output and working head positioning makes the running state more stable; the experimental application area is wide;
4. Operating speed microprocessor control, with instant compensation for speed changes caused by load changes and power supply fluctuations, constant speed and reliable;
5. Built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a long time of the experiment;
6. The speed is steplessly adjusted to meet the test to modify the running speed at any time. The digital display speed is intuitive and the experimental data collection is convenient;
7. Run timing control to ensure that the experiment time is effectively controllable.
8. Easy to replace disassemble and install, easy to clean.
Specification
Model | AE10 |
Rated voltage | AC 220V ±10% (110V optional) |
Rated frequency | 50/ 60 Hz |
Input power | 1050 W |
Output power | 600 W |
Rated torque | 38 N·cm |
Motor work mode | S1 |
Control method | Combined control knob |
Speed range | 2000~15000 rpm |
Speed control grade | Stepless, resolution 10rpm |
Timing range | 1~1000 min |
Speed display | LED (number ×10) |
Speed dynamic detection function | YES |
Speed memory function | YES |
Overload protection | YES |
IP Rating | IP20 |
The Material of the Operating head | SS316 |
Mixing capacity (H2O) | 100ml~20000ml |
Size of working head | Ø42mm |
Rotor size | Φ24mm |
Stator/rotor distance | 0.5mm |
Max. rotation speed | 18.9m/s |
Min./max.immersion depth | 38~250mm |
Standard stator ring | 4 hole shapes, replaceable |
Max viscosity | 10,000 mPa.s |
Max temperature for working head | 180℃ |
pH range | 2~13 |
Sterilization | Chemical way |
Suspension particle size | 15~65μm |
Emulsion particle size | 5~30μm |
Permissible ambient temperature | Lower than 40ºC |
Permissible relative humidity | Less than 80% |
Size of the mixer (T×B×H) | 215×310×720 mm |
Net weight | 9.5KG |

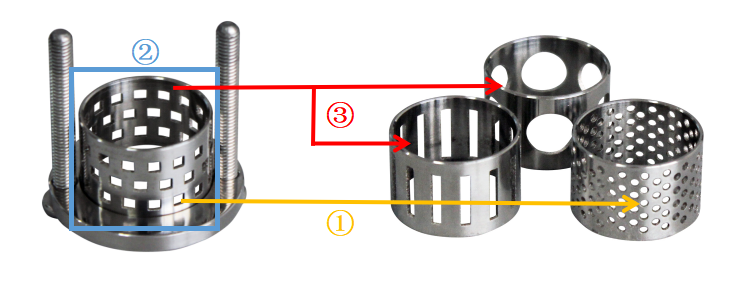

① for low viscosity liquid, or small sized particle, recommend to use “small round” hole type ring.
② for medium viscosity and medium sized particle, recommend to use “square” hole type ring.
③ for high viscosity and big sized particle, recommend to use “long” or “big round” hole type rings.
