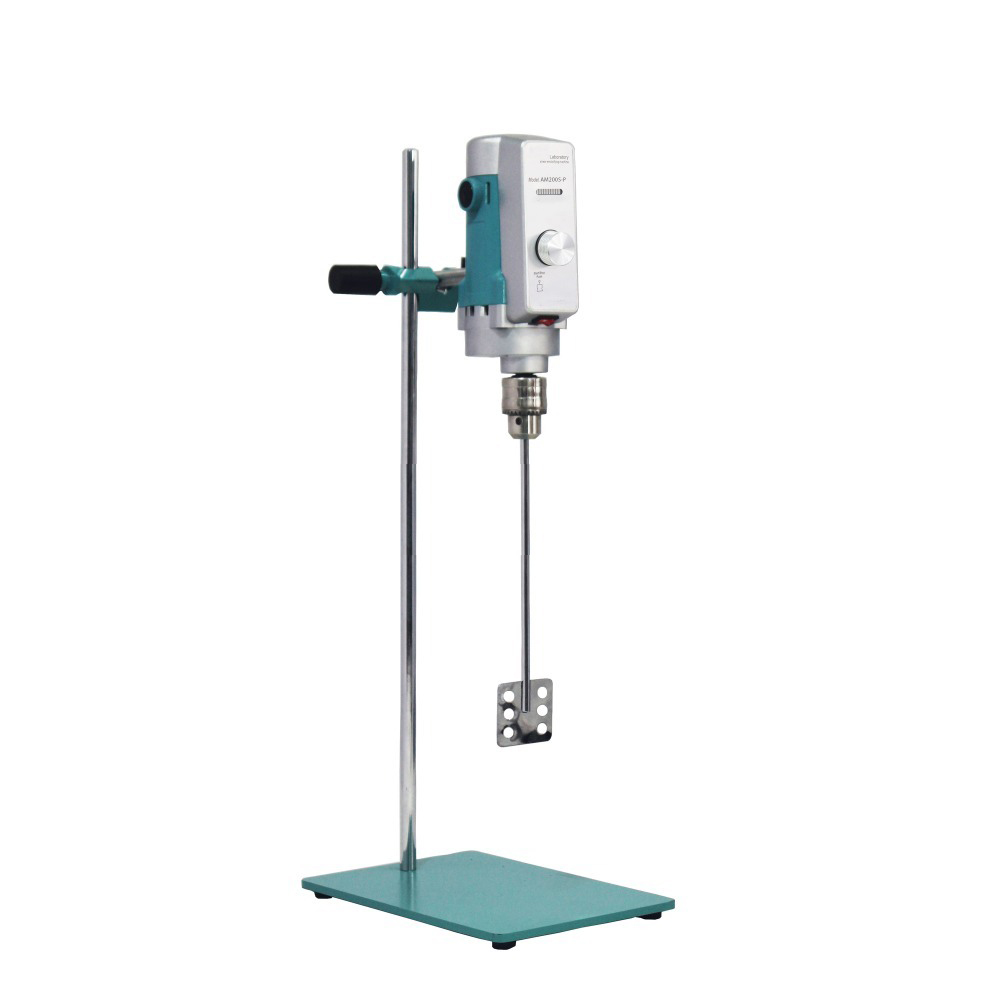

NEW High Quality Laboratory Electrical Overhead Stirrer AM200S-P

We provide a wide range of stirrer/mixer/agitator/homogenizer,

paddle can be customized as your requirement,

pls enquiry us for more details.

Introductions:

The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation. The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing.

Main features:

l AM series lab mixer has compact design: the head machine includes micro-driven motor, controller and the moment institutions and other components.

l Widely suitable for the laboratory of low to medium and high viscosity liquid mixture mixing.

l AM Series Mixers adopt high quality engineering plastics for the body, runs more stably, more safe for using electricity(has better insulativity).

l Output torque is multiplied by using variable speed force.

l speed controller IC all constant speed detection technology, can be immediately effective compensation arising from the variation of load and power supply voltage fluctuation speed, internal soft - start, automatic overload protection, and the whole process of constant power compensation and other features.

l Models with " H " show speed directly, easy to record experimental data.

Features:

1. Brushless Direct Current Motor.

2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.

3. Suitable for a wide range of material with different stirring paddle and different speed.

4. Stable and constant operation.

5. Overload protection.

6. Long time running.

7. High effective in speed control.

8. Easy operate and easy clean easy maintenance.

9. Models with “H” have function of digital display.

Technical parameter:

Model	AM200S-P	AM300S-P	AM200S-H	AM300S-H
Rated Power Supply	AC 220 V 50 Hz	AC 220 V 50 Hz	AC 220 V 50 Hz	AC 220 V 50 Hz
Input Power	340W	510W	340W	510W
Output Power	200W	300W	200W	300W
Rated Torque	1.45Nm	1.96Nm	1.45Nm	1.96Nm
Working system	100%	100%	100%	100%
Speed display	NO display	NO display	Display value*10 rpm	Display value*10 rpm
Rating Speed Control	Variable	Variable	Variable	Variable
Range of Speed	50-1800 rpm	50-1800 rpm	50-1800 rpm	50-1800 rpm
Max viscosity	17000cP	26000cP	17000cP	26000cP
Capacity (H2O)	50-60,000 ml	50-85,000ml	50-60,000 ml	50-85,000ml
Shape Size (mm)	360×260×760	360×260×760	360×260×760	360×260×760
Permission ambient temperature	≤ 40 °C	≤ 40 °C	≤ 40 °C	≤ 40 °C
Permission Relative humidity	≤ 90 %	≤ 90 %	≤ 90 %	≤ 90 %

We have several models for option.
