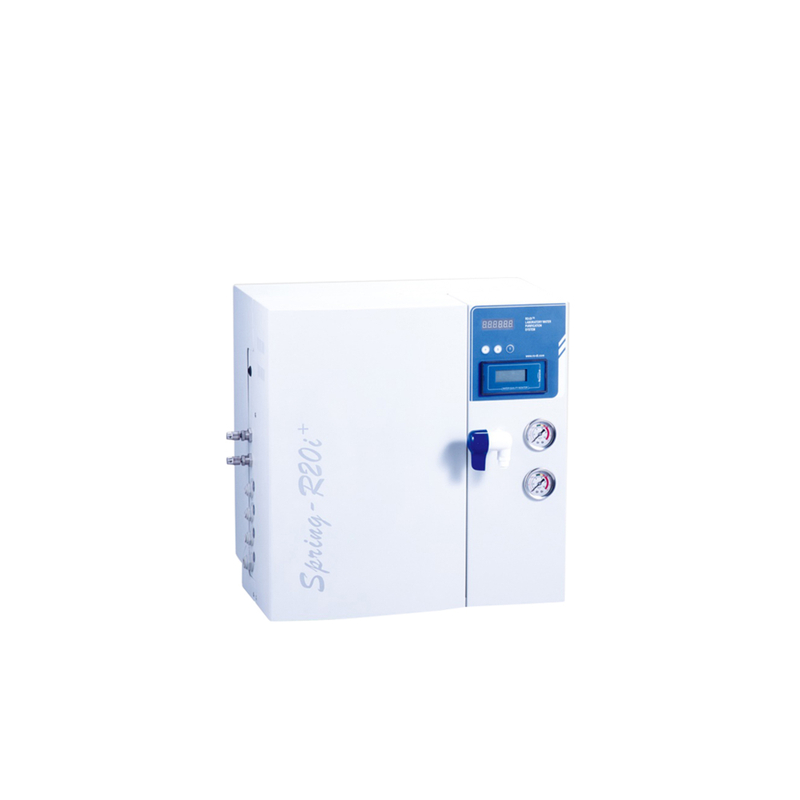

NADE laboratory benchtop type Spring series primary/intermediate water purification system

  • New
  • Manufacturing Plant, laboratory
  • No service
  • None
  • None
  • Not Available
  • Provided
  • New Product 2020
  • 1 Year
  • other
  • China
  • NADE
  • 423*445*280 mm
  • 220V/50-100W
  • Video technical support, Online support
  • 1 Year
  • 60L/Hour
  • 50 kg
  • Tap water(temperature5-40℃,pressure≥1kg/cm2)
  • 10/20/30/40
  • 1-pass RO or 2-pass RO
  • 30-60% or 20-30%
  • 96-98%
  • >99%
  • ≥10 MΩ.cm(25℃)
  • ≥1.8L/min
  • 1-60min/0.1-25L,tolerance<±2%
  • 423*445*280 mm,desktop and wall-mounted

Product Description

Product Description

NADE laboratory benchtop type Spring series primary/intermediate water purification system

Spring primary/intermediate water purification system is very compact in structure and high cost-effective which can be applied to laboratory basic water supply, automatic water supply for laboratory equipment and industrial equipment and it can also meet the water demand for strict analysis experiments after upgrading.

Applications:

Primary Pure Water

Source water for ultra-purification system

Regular reagent preparation

Buffer and medium solution preparation

Water supply for hydroponics

Clean glassware

Microbiological analysis

Dilute samples and prepare reagent

Regular chemistry and qualitative analysis

Spectrum measurement

Water supply for autoclave sterilizer, cleaning machine, automatic biochemical analyzer, immunity analyzer, temperature and humidity chamber, humidifier, etc.

Intermediate Pure Water(Upgrade)

Flame atomic absorption

Regular tissue cell culture

Prepare cell and tissue structure

Electrophotograph

Polarization of light

Water quality analysis

Immunocytochemistry

Electrophysiology

Electrochemistry

Feature

Small Dimension, Large Production

The size of Spring is similar to the standard computer host but the production capacity can reach 60L/H for 1-pass RO(S series) and 40L/H for 2-pass RO(R series) with the operation power of 50-100W.

Unique 2-pass RO Technology

It’s advanced small RO system 2-pass RO technology can make the water purification system have the prominent advantages of high recovery rate, high desalinization rate, high adaptability, very low operation cost.

Excellent Safety Performance

The system applies the technology of water and power separation, operates under DC24V low-voltage, equips with standard leakage protection device and also there are eco material applied to all the liquid connection components and with NSF (National Sanitation Foundation) and related certifications.

Perfect System Configuration

The system equips with the technical features and high practical functions of accurate quantitative water intaking (vast water intaking without anybody watching over), filter replacement reminding, advance filter fouling identification and protection , water production capacity statistics gathering, water identification testing ,etc.

Specification

Model

Spring - S*

Spring - R*

(the "*"in item number in correspondence with the hourly water production capacity in RO system)

Feed water

Tap water(temperature5-40℃,pressure≥1kg/cm2)

Production capabiltiy(L/H)

10

20

30

40

60

10

20

30

40

Storage bucket

Optional(available capacity10L/20L/40L/60L)

RO system

1-pass RO

2-pass RO

RO system recovery

30-60%

20-30%

Water Quality Index

Low level

Removal rate of inorganic(including all kinds of ions)96-98%

Conductivity <5us/cm (better than GB/T6682-Ⅲ level)

Removal rate of organics(>100Dalton)and particle/bacteria(>0.22μm)>99%

Hight level (Upgrade)

Conductivity≥10 MΩ.cm(25℃),maximum 18.2 MΩ.cm(25℃)(better than GB/T6682 Type I)

Total Organic Carbon(TOC) <15 ppb (UV model:TOC<5 ppb)

Monitor

Equip with automatic qualitative resitivity monitor in standard configuration and optional online LCD conductivity/resistivity monitor.

Flow rate

≥1.8L/min

Timing and quantitative water taking function

1-60min/0.1-25L,tolerance<±2%

Dimension

423×445×280 mm(W×H×D),desktop and wall-mounted

Voltage/Power

220V/50-100W

Real photos show

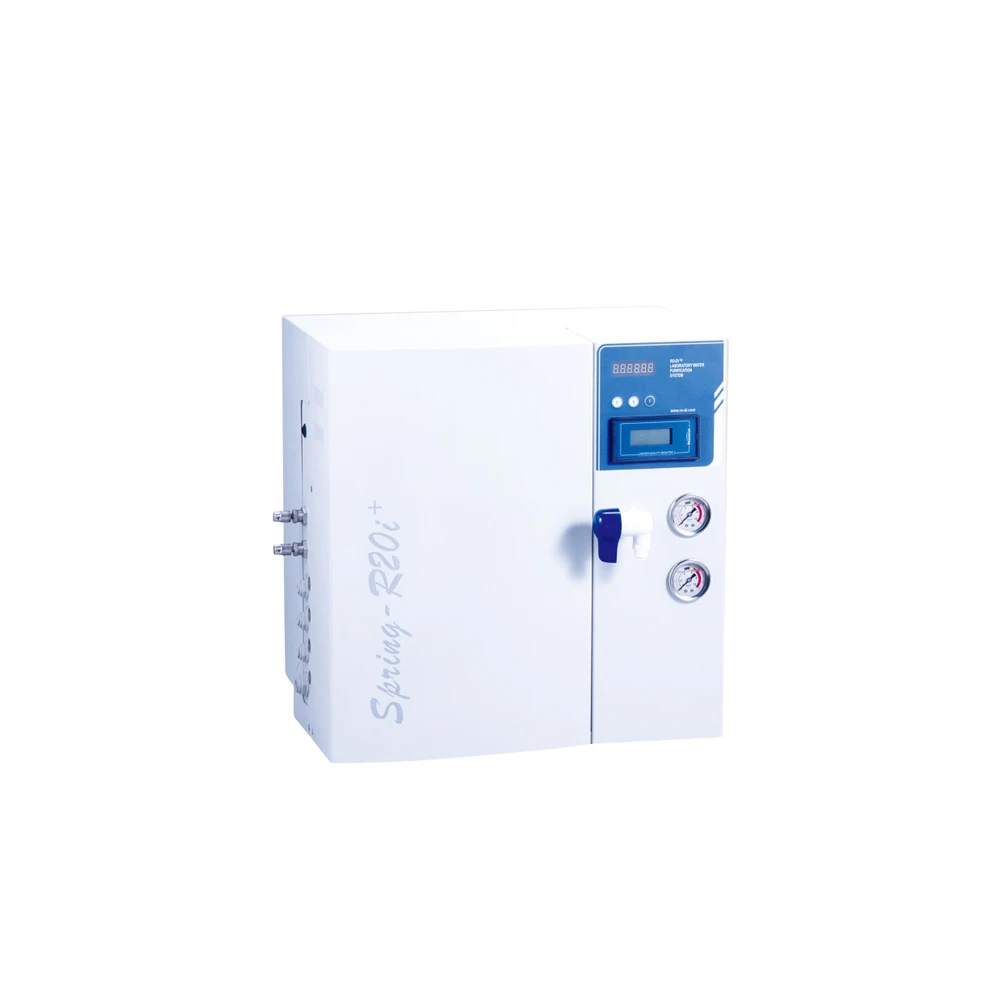

NADE laboratory benchtop type Spring series primary/intermediate water purification system NADE laboratory benchtop type Spring series primary/intermediate water purification system NADE laboratory benchtop type Spring series primary/intermediate water purification system
